Blowing Dust Test Chamber

LIB · Dust & Sand Ingress Testing (IP5X/IP6X)

As a leader in environmental simulation chamber, LIB Industry blowing dust test chamber complies with MIL STD 810 standard. The MIL STD 810H standard is designed to ensure the reliable operation of military equipment in a variety of harsh sand and dust environments. The blowing dust test chamber blows the dust into the workroom to form a dust environment with high wind speeds 1.5-8.9m/s and 18.0-29.0m/s respectively for dust and sand.

Datasheets

• Dust Test Chamberdust-test-chamber.pdfDownload PDF

Features

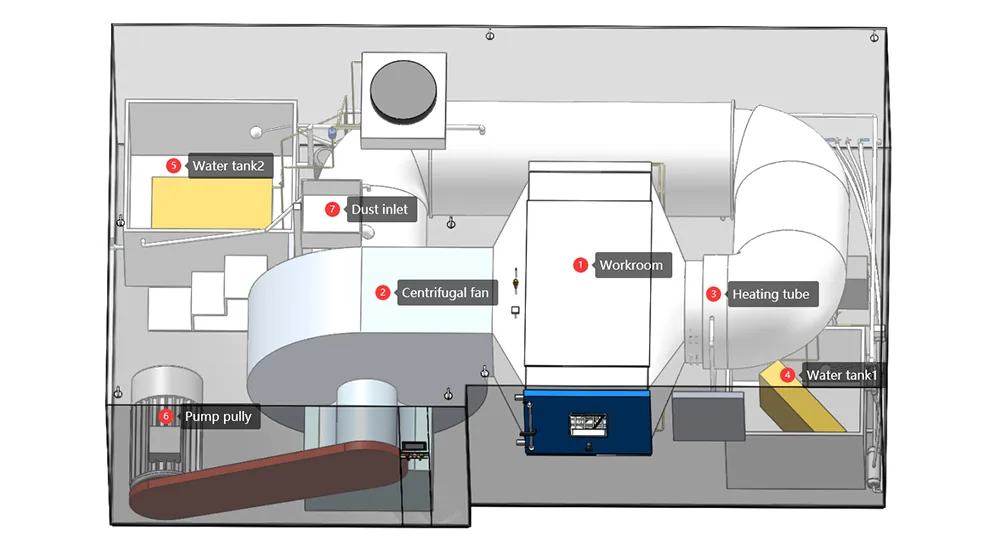

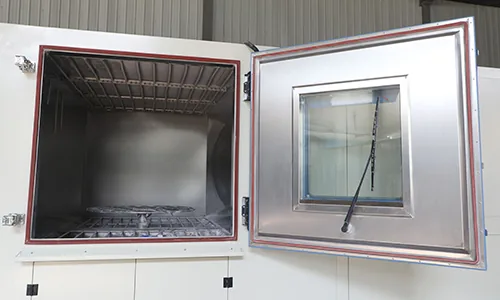

• The workroom, air duct, etc., use strong and corrosion-resistant SUS304 to resist the wear and erosion of sand and dust, and choose high-quality double-layer rubber seals to prevent sand and dust leakage and ensure a stable dust environment inside the blowing dust test chamber.

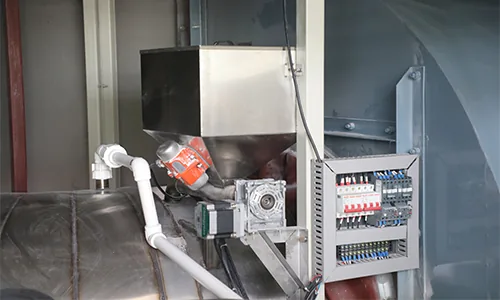

• Accurately control the amount and speed of dust injection. 10.7±7g/ m³ blowing dust and
• 18+0.2g/m³; 1.1+0.3g/m³; 2.2+0.5g/m³ blowing sand can be injected to simulate a variety of different dust environments.

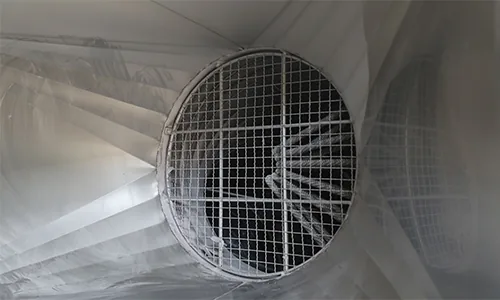

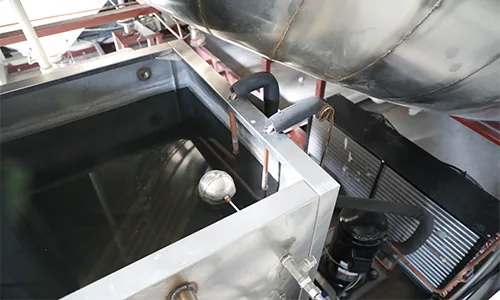

• The sand particles spin at high speed in the workshop and the pipeline, and friction with the inner wall of the pipeline to generate a lot of heat. Set up a tank outside the pipe to allow water to flow around the pipe and absorb the heat from the pipe.

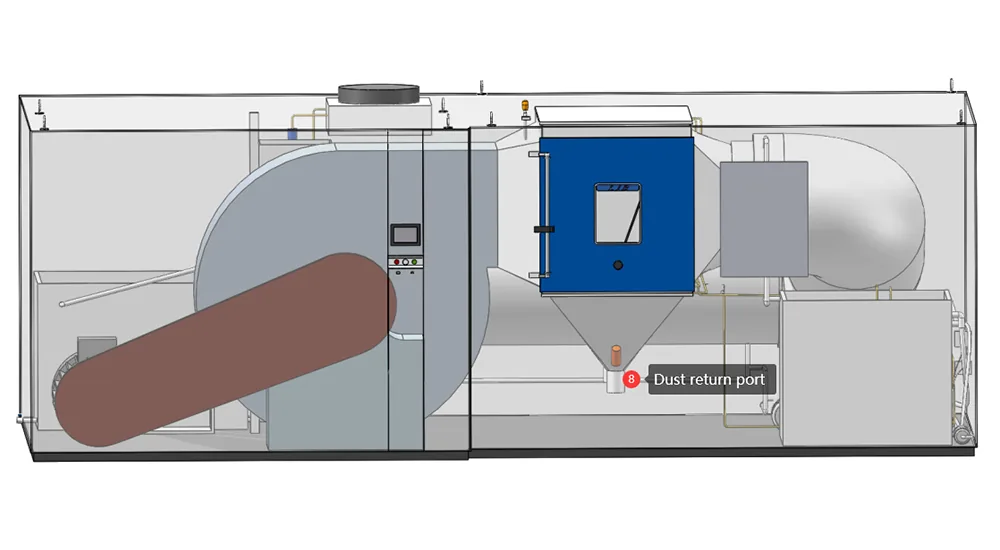

• The dust cycle is to collect the falling dust through the bottom funnel-shaped structure, and after filtering through the mesh screen of the collection port, the fan is inhaled again and lifted to the upper space of the test chamber to achieve the repeated recycling of dust.

Specification
