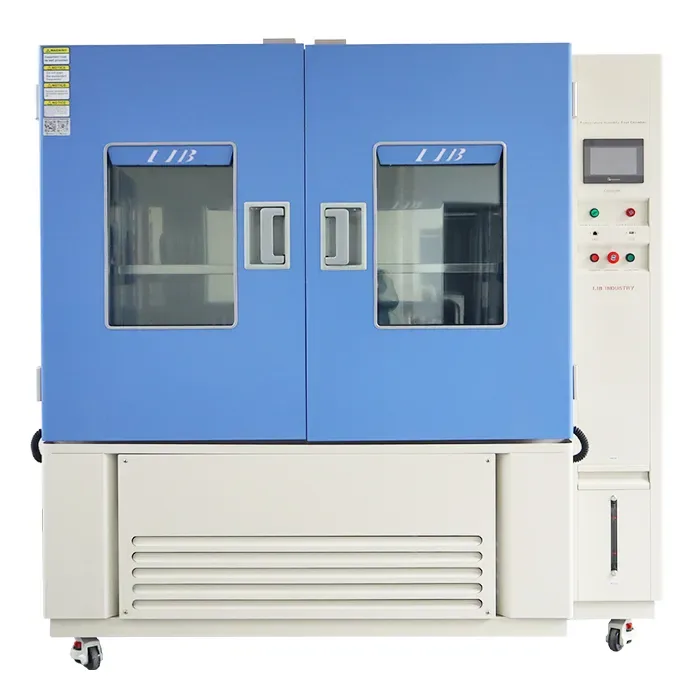

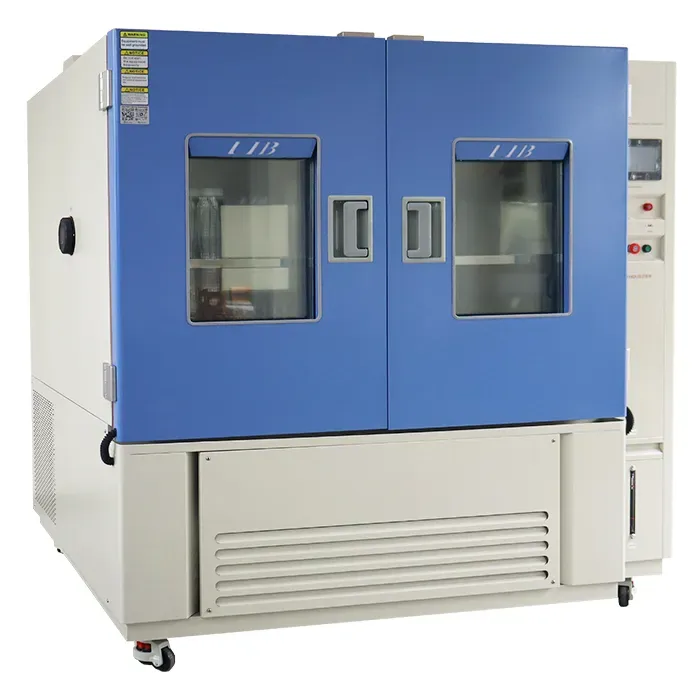

Double Door Custom Temperature Humidity Chamber
LIB · Temperature & Humidity Chambers

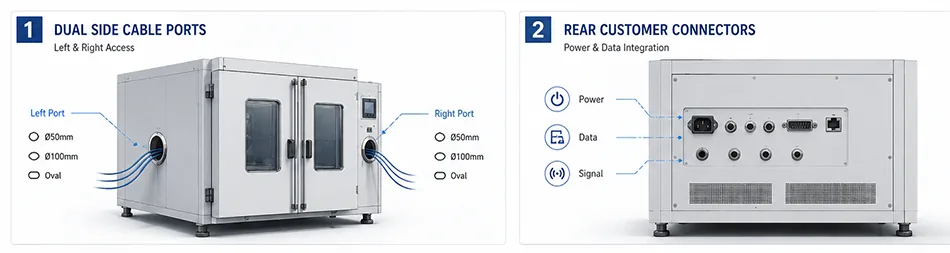

Flexible Structural Tailoring for Large-Scale and Complex Environmental Testing Are you struggling with oversized specimens that won’t fit through standard doors? Or do you need a chamber that integrates seamlessly with your specific lab cabling and external sensors? LIB Industry’s Double Door Custom Temperature Humidity Chamber is more than just a large-capacity temp and humidity chamber.
Datasheets
- Lib Th Chamber Cataloglib-th-chamber-catalog.pdfDownload PDF
- Lib Industry Temperature Humidity Chamber User Manuallib-industry-temperature-humidity-chamber-user-manual.pdfDownload PDF
- Lib Industry Temperature Humidity Chamber Applicable Standardslib-industry-temperature-humidity-chamber-applicable-standards.pdfDownload PDF
- Lib Industry Temperature Humidity Chamber Maintenance Processing Listlib-industry-temperature-humidity-chamber-maintenance-processing-list.pdfDownload PDF
- User Manual For Temperature Humidity Chamberuser-manual-for-temperature-humidity-chamber.pdfDownload PDF
Specification
| Interior Volume | Customizable |
|---|---|
| Heat load | 1000W |
| Temperature Range | A: -20℃ | B: -40℃ | C: -70℃ to +150℃ |
| Temperature Fluctuation | ± 0.5 ℃ |
| Temperature Deviation | ± 2.0 ℃ |

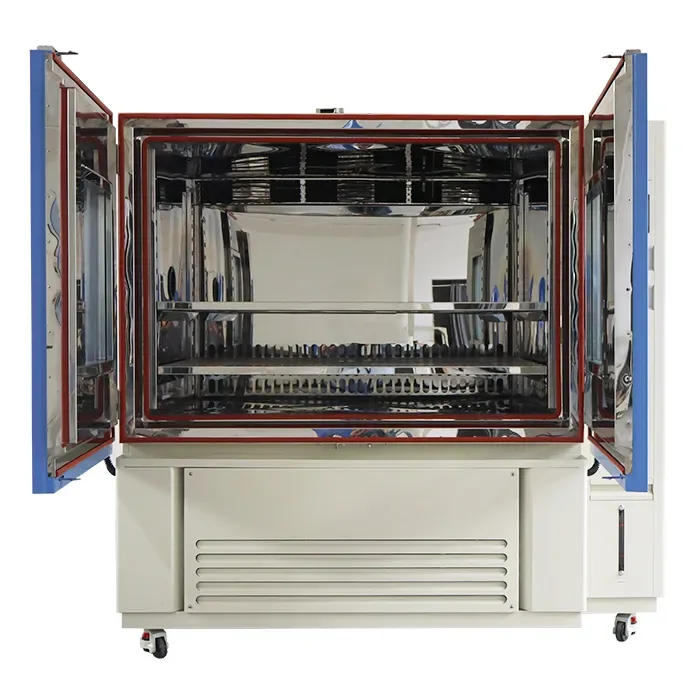

| Door Configuration | Double-Wing Opening with high-resilience silicone seal |
| Humidity Range | 20% ~ 98% RH |
| Humidity Deviation | ± 2.5% RH |
| Cooling Rate | 1 ℃ / min |
| Heating Rate | 3 ℃ / min |

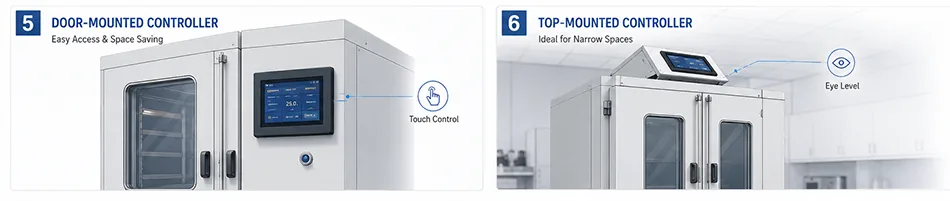

| Controller | Programmable color LCD touch screen controller,PC Link, LAN interface for remote control |
| Cooling system | Mechanical compression refrigeration system，environmentally friendly refrigerant,compliant with the GWP standards requirements |
| Water supply system | Automatic water supply; Water purification system |
| Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection; |
| Interior Material | High-grade SUS304 Stainless Steel (Corrosion-resistant) |
| Exterior Material | Steel Plate with protective coating |
