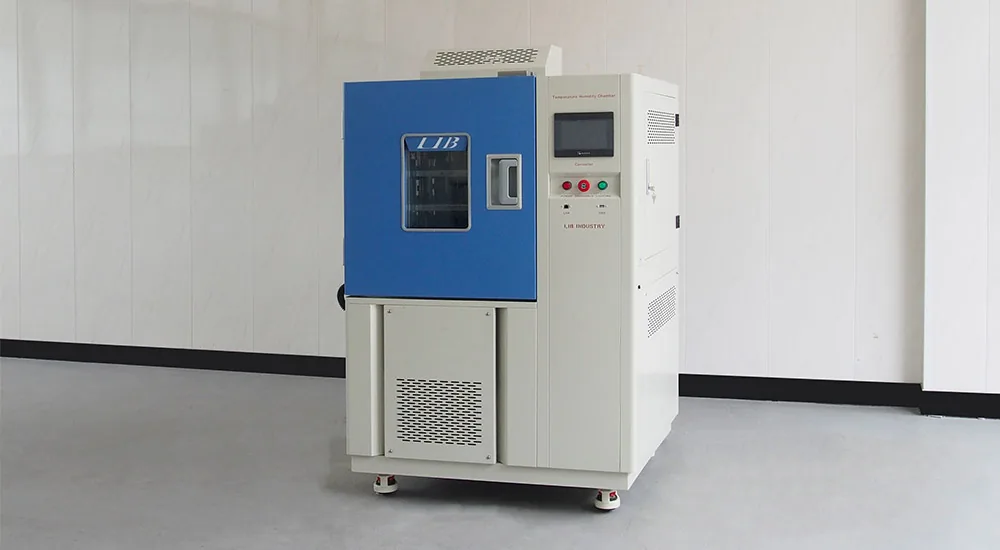

High Low Temperature Test Chamber
LIB · Temperature & Humidity Chambers
The high low temperature test chamber is used to test the reliability of products in high and low temperatures.The parts and materials of related products are tested for cyclic changes of high temperature and low temperature (alternating). The rising and cooling rate of 5℃/min can meet the high and low temperature alternating environment required by the test piece.Temperature range: from -20℃, -40℃, -70℃ (3 low temperature types) to +150℃. Model: TR5-100, TR5-225, TR5-500, TR5-800, TR5-1000 Standard: AAMA501, ASTM D4169-16, IEC 61215, IEC 61646, IEC61108, IEC62688, MIL-STD-811D,SAE J575
Datasheets
- Lib Th Chamber Cataloglib-th-chamber-catalog.pdfDownload PDF
- Lib Industry Temperature Humidity Chamber User Manuallib-industry-temperature-humidity-chamber-user-manual.pdfDownload PDF
- Lib Industry Temperature Humidity Chamber Applicable Standardslib-industry-temperature-humidity-chamber-applicable-standards.pdfDownload PDF
- Lib Industry Temperature Humidity Chamber Maintenance Processing Listlib-industry-temperature-humidity-chamber-maintenance-processing-list.pdfDownload PDF
- User Manual For Temperature Humidity Chamberuser-manual-for-temperature-humidity-chamber.pdfDownload PDF
Specification

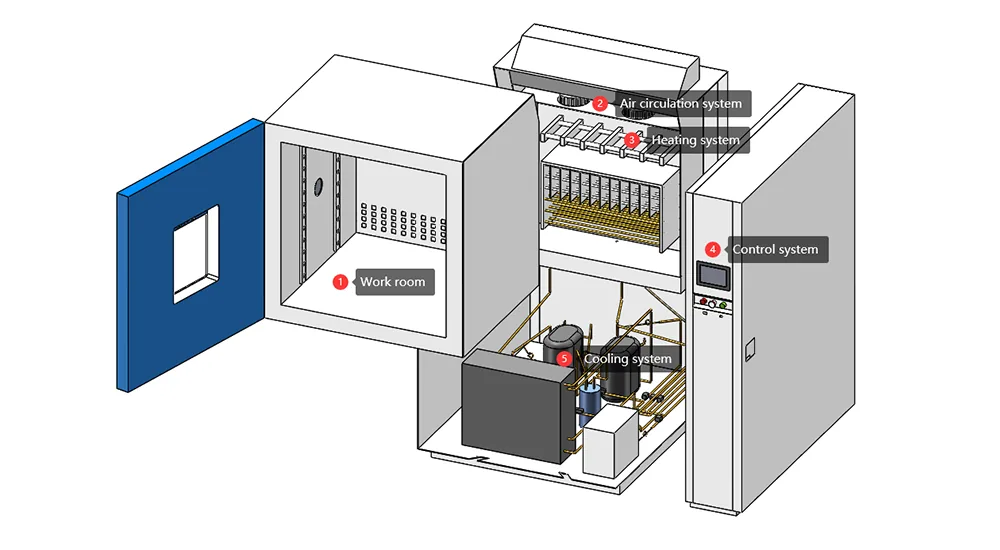

| Configuration of High Low Temperature Test Chamber | Send Inquiry |
|---|---|
| LIB Team will send you specs and quote today. | SUBMIT |
| Key features | • Adopt advanced temperature control system, the controller according to the feedback signal accurately regulate the cooling and heating system, so that the temperature is kept within the set range. |

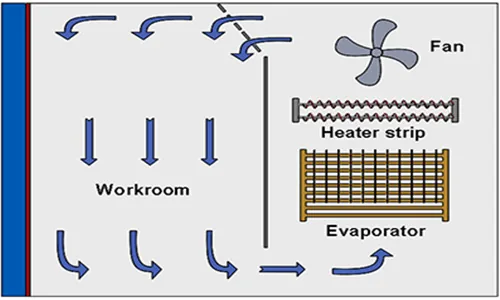

| • The temperature range of the high and low temperature test chamber is from -70 ° C to 150 ° C (higher and lower temperatures can be customized), which can meet the requirements of high and low temperature environment simulation. | • Through reasonable design of air duct and circulation system, the temperature inside the chamber can be evenly distributed,the temperature uniformity ≤2℃. |
Model comparison
| Model | TR5-100 | TR5-225 | TR5-500 | TR5-1000 |
|---|---|---|---|---|
| Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 1000*1000*1000 |
| Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1500*1540*2140 |
| Interior Volume | 100L | 225L | 500L | 1000L |
| Heat load | 1000W | |||
| Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |||
| Temperature Fluctuation | ± 0.5 ℃ | |||
| Temperature Deviation | ± 2.0 ℃ | |||
| Humidity Range | 20% ~ 98% RH | |||
| Humidity Deviation | ± 2.5% RH | |||
| Cooling Rate | 5 ℃ / min | |||
| Heating Rate | 5 ℃ / min | |||

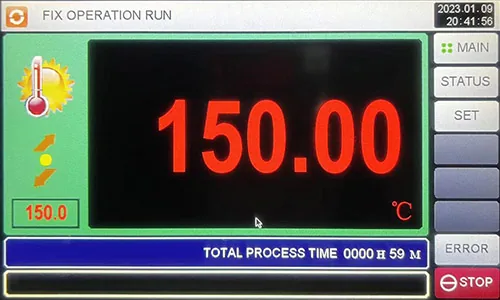

| Controller | Programmable color LCD touch screen controller,PC Link, R-232 interface | |||
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | |||
| Humidity sensor | Dry and wet bulb sensor | |||

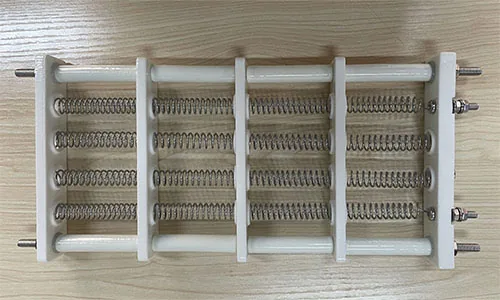

| Heater | Nichrome heater | |||
| Cooling system | Mechanical compression refrigeration system | |||

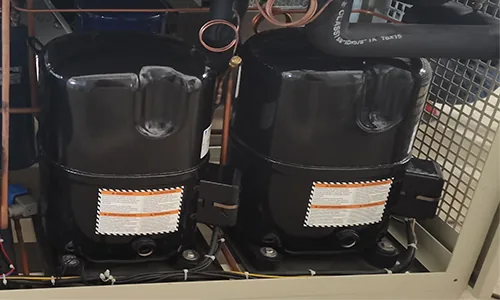

| Refrigerating unit | French TECUMSEH compressor | |||
| Refrigerant | Environmentally friendly refrigerant | |||
| Humidifier | External isolation, stainless steel surface evaporation humidifier | |||
| Dehumidification system | Evaporator | |||
| Air circulation | Centrifugal wind fan | |||
| Water supply system | Automatic water supply; Water purification system | |||
| Safety device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection; | |||
| Exterior material | Steel Plate with protective coating | |||
| Thermal insulation | Polyurethane foam | |||
| Observation window | Interior lighting , double-layer thermo stability silicone rubber sealing | |||

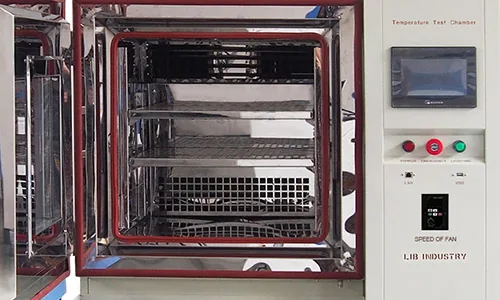

| Standard configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | |||
| Timing Function | 0.1~999.9 (S,M,H) settable |
