Industrial Vacuum Oven
LIB · Ovens & Drying
LIB industry Industrial Vacuum Oven is ideal for plating, desiccating, outgassing, sterilization, or drying under vacuum. Quick shipping with 50L–200L standard models ensures timely use. Customizable sizes, volumes, and sample holders fit diverse needs.
Features
- Wide Temperature Range: The vacuum oven can heat samples up to +350 ℃, providing fast and stable temperature rise for diverse drying, sterilization, and plating applications.
- Integrated Vacuum System: The built-in vacuum pump ensures reliable vacuum control up to -133 Pa, enabling efficient outgassing and protection of sensitive materials.
- Programmable Precision Control: The advanced controller allows accurate temperature regulation and automated operation, reducing human error and ensuring repeatable test results.
- Energy Efficiency and Uniform Heating: Optimized insulation and chamber design promote excellent thermal stability and uniformity, minimizing energy consumption while maintaining consistent results.
Specification
| Configuration of Industrial Vacuum Oven | Customize your vacuum oven to match your exact size, volume, and sample requirements. Enjoy peace of mind with our dedicated after-sales support and 1–3 hour rapid response service. With ample stock of standard models, we ensure fast shipping so you can start testing without delay. |
|---|---|
| Send Inquiry | LIB Team will send you specs and quote today. |
| SUBMIT | Key features |
| • Wide Temperature Range: The vacuum oven can heat samples up to +350 ℃, providing fast and stable temperature rise for diverse drying, sterilization, and plating applications. | • Integrated Vacuum System: The built-in vacuum pump ensures reliable vacuum control up to -133 Pa, enabling efficient outgassing and protection of sensitive materials. |
| • Programmable Precision Control: The advanced controller allows accurate temperature regulation and automated operation, reducing human error and ensuring repeatable test results. | • Energy Efficiency and Uniform Heating: Optimized insulation and chamber design promote excellent thermal stability and uniformity, minimizing energy consumption while maintaining consistent results. |
Model comparison
| Model | VO-20 | VO-30 | VO-50 | VO-90 | VO-125 |
|---|---|---|---|---|---|
| Internal Dimension (mm) | 300x300x275 | 320x320x300 | 415x370x345 | 450x450x450 | 500x500x500 |
| Overall Dimension (mm) | 610x490x450 | 630x510x490 | 730x560x550 | 740x610x595 | 790x660x645 |
| Interior Volume | 20L | 30L | 50L | 90L | 125L |
| Temperature Range | +35 ℃ ～+350 ℃ | ||||
| Heating Rate | 6 ℃ / min | ||||
| Vacuum degree | -133pa | ||||

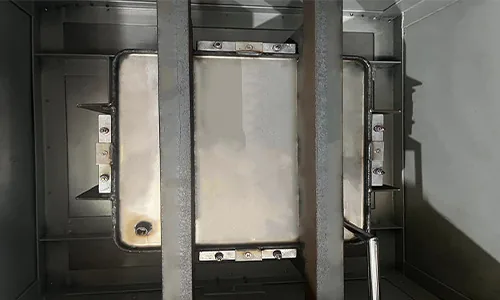

| Heating Element | Nichrome heater | ||||

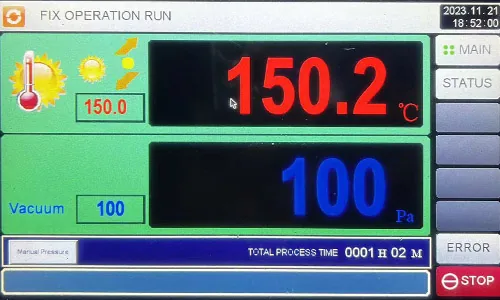

| Controller | Programmable color LCD touch screen controller | ||||
| / | Ethernet connection, PC Link(Option) | ||||
| Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | ||||
| View Window Size(mm) | 120*150 | ||||
| Safety Device | Over-temperature Protection; Over-current Protection; Earth leakage Protection, Phase Sequence Protection | ||||
| Exterior Material | Steel Plate with protective coating | ||||
| Interior Material | SUS316 stainless steel | ||||
| Thermal Insulation | Polyurethane foam | ||||
| Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||

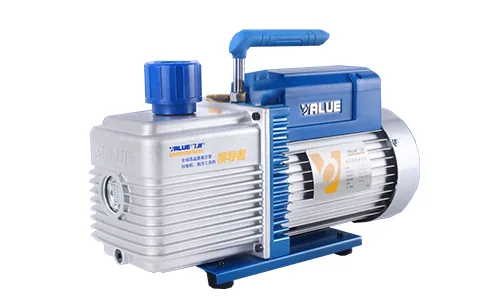

| Vacuum pump | Built-in vacuum connection tube and vacuum pump | ||||
| Standard Configuration | 2 shelves |
