M-VS 3000 Specimen preparation
MonTech · Specimen preparation

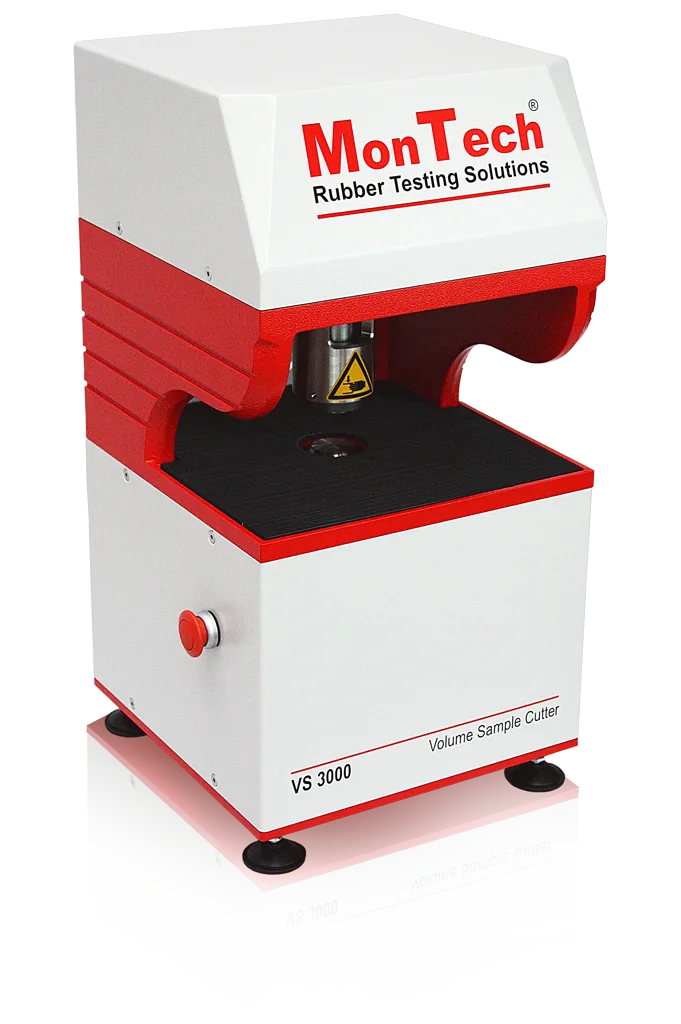

The M-VS 3000 Mooney volumetric sample cutter enables higher accuracy, repeatability and optimized testing results in Mooney Scorch and Viscosity testing by preparing test samples with a constant volume. The M-VS 3000 also features automatic cutting of a center hole for the rotor shaft along with a time delay for compressing.
Datasheets
- MonTech General Cataloguemontech-product-catalogue-2023.pdfDownload PDF
- MonTech Specimen and Die cuttingmontech-specimen-and-die-cutting-2021.pdfDownload PDF
Specification
| Cutting diameter | 45 mm |
|---|---|
| Max. thickness | 20 mm |
| Reproducibility | 0.1 % |
| Sample volume | about 15 cm³ |
| Compression time (adjustable) | 1 sec to 15 sec |
| Dimensions (H x W x D) | 600 mm x 430 mm x 380 mm |
| Weight | approx. 50 kg net |
| Pneumatics | min. 5.0 Bar |
| Compression time | 1 sec to 15 sec (adjustable) |
