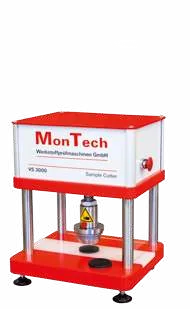

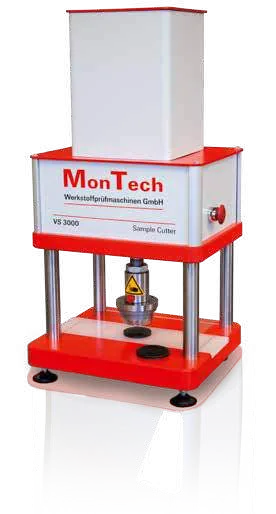

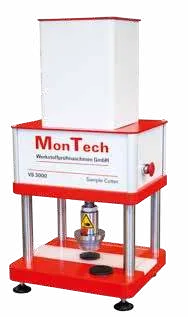

P-VS 3000 Plus
MonTech · Specimen preparation
Direct actuated sample cutter for multiple-blade cutting station knives or tough materials requiring high cutting forces. Whenever there is a need to save time and increase productivity by cutting multiple samples at the same time, P-VS 3000 is the ideal sample cutter. Equipped with 2-hand anti-tie down control and completely pneumatic operation, sample cutting is made easy and safe. The cutting f
Datasheets
- MonTech Product Catalogue 2023montech-product-catalogue-2023.pdfDownload PDF
- MonTech Specimen and Die Cutting 2021montech-specimen-and-die-cutting-2021.pdfDownload PDF
Specification
| Cutting force | 15 kN or 40kN |
|---|---|
| Cutting stroke | 30 mm |
| Max. material thickness / hardness | 10 mm / 98 Shore A (15kN) 10 mm / 70 Shore D (40kN) |
| Reproducibility | 0.1 % |
| Compatible cutting knives | Any ISO, DIN, ASTM and other standard die types |
| Dimensions (H x W x D) | 690 mm x 300 mm x 380 mm |
| Weight | approx. 72 kg / 86 kg net |
| Pneumatics | min. 5.0 Bar |
| Description | High force sample cutting press |
| Die height | 20 – 50 mm |
| Throat depth | 120 mm |
| Cutting area | 250 x 100 mm (250 x 125mm optional) |
| P-VS sliding table Dimensions (H x W x D) | 460 x 300 x 1050 mm |
| Pneumatics (recommended line pressure) | min. 5.0. Bar |
