- BS 903 Pt. A59
- ASTM D3194
- ISO 2007
- BS 903
PO 3000 Plasticity
MonTech · Plasticity

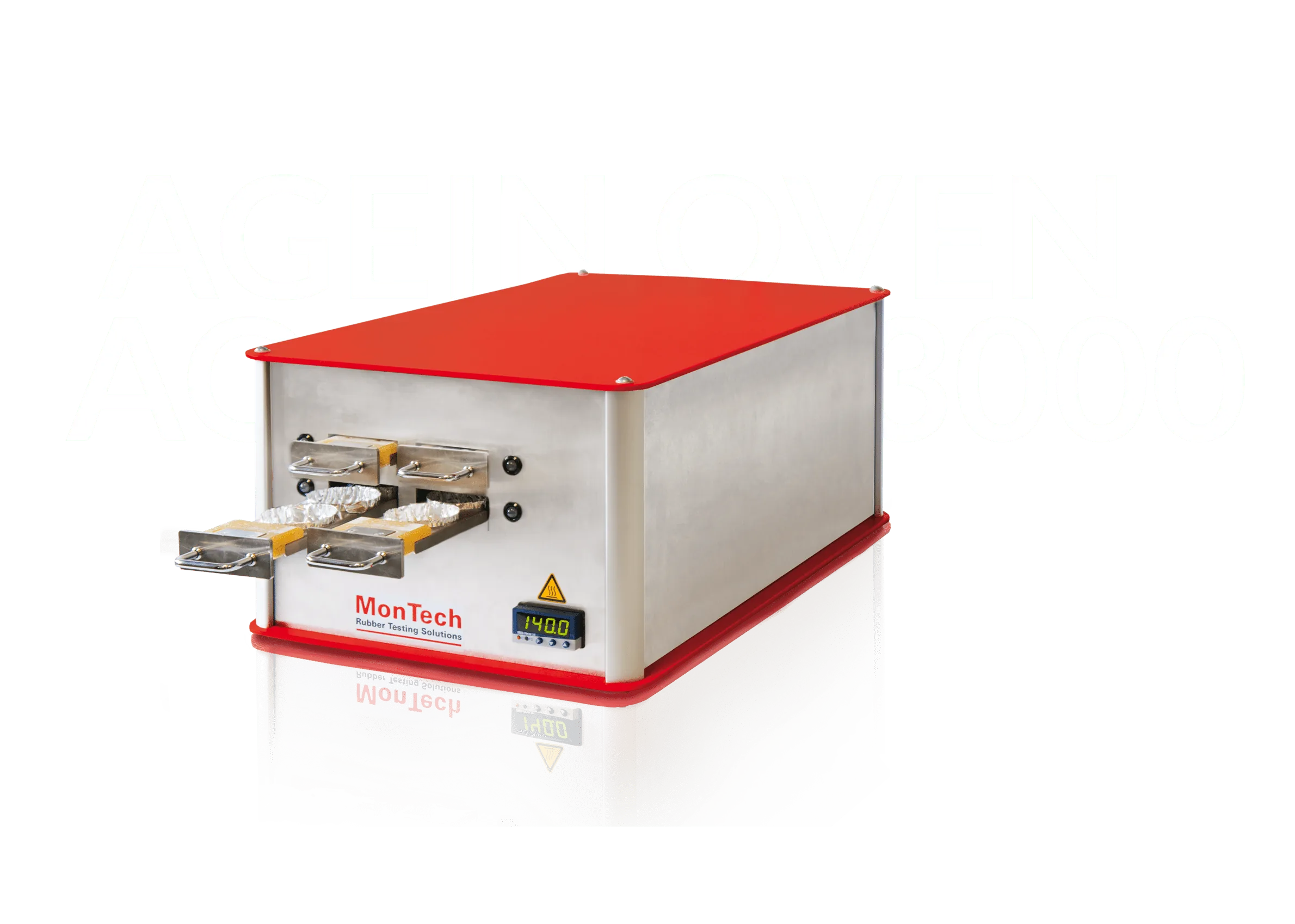

The MonTech ageing oven for plasticity testing ages rubber in accordance with international testing standards. In conjunction with the MonTech Plastimeter, it allows the user to determine the Plasticity Retention Index (PRI) of raw natural rubbers.
Datasheets
- MonTech General Cataloguemontech-product-catalogue-2023.pdfDownload PDF
- MonTech Specimen and Die cuttingmontech-specimen-and-die-cutting-2021.pdfDownload PDF
- PO 3000 datasheeten-plasticity-low.pdfDownload PDF
Specification
| Standards | BS 903 Pt. A59, ASTM D 3194, ISO 2007 |
|---|---|
| Temperature Recovery | 1 minute at 140°C after sample insertion |
| Operating Temperature | 140 ± 0.2°C (adjustable from ambient to +200°C) |
| Chamber Dimensions | 4 chamber with 50 mm x 12 mm x 280 mm |
| Max Samples per Oven | 48 |
| Max Samples per Tray | 12 |
| Dishes Per Tray | 4 |
| Heating Chambers | 4 |
| Air exchange rate | adjustable 0 to 120 times / hour |
| Weight | approx. 27 kg net |
| Electrical | 90-250 V, 10 Amps, 47-63 Hz, Single phase |
