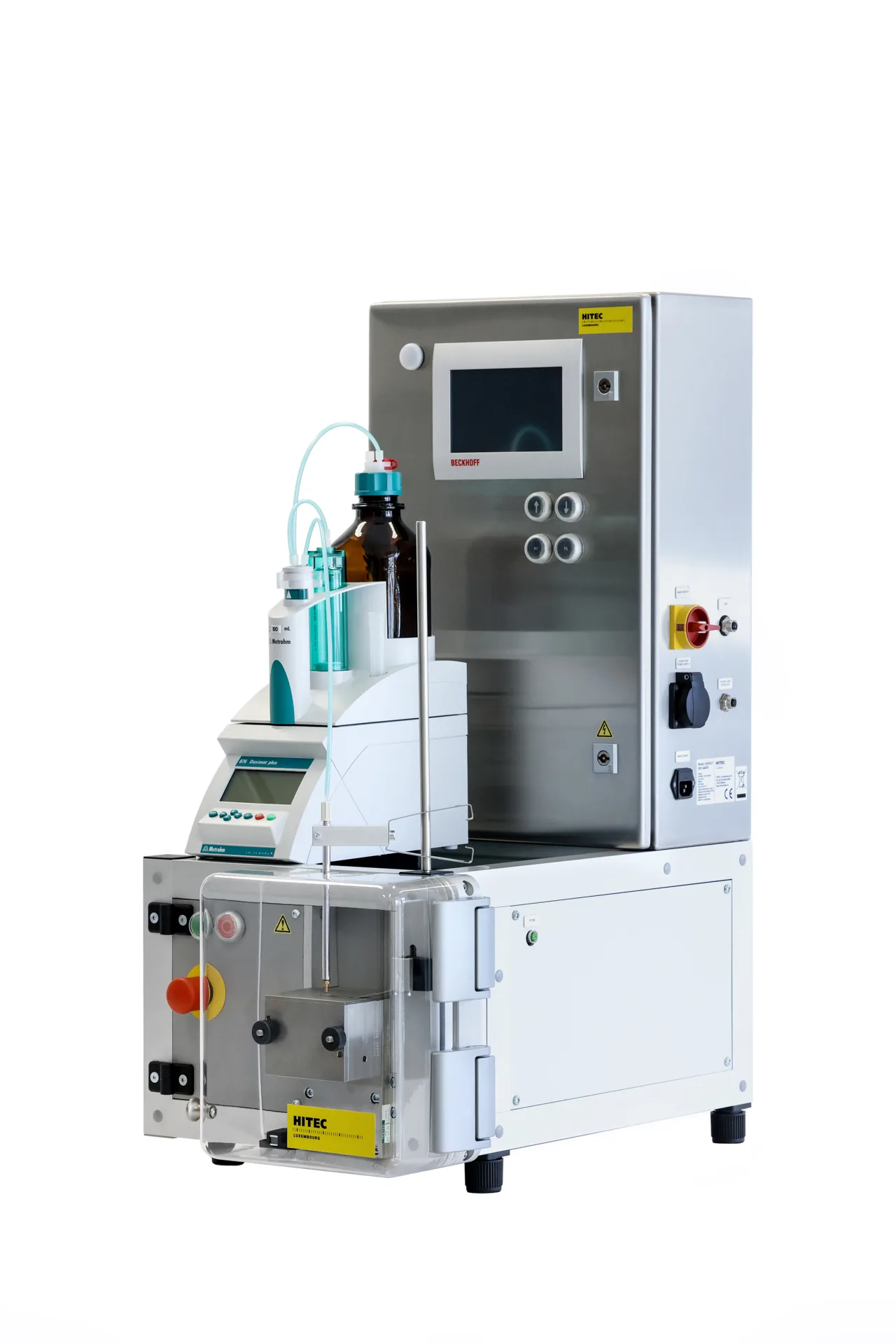

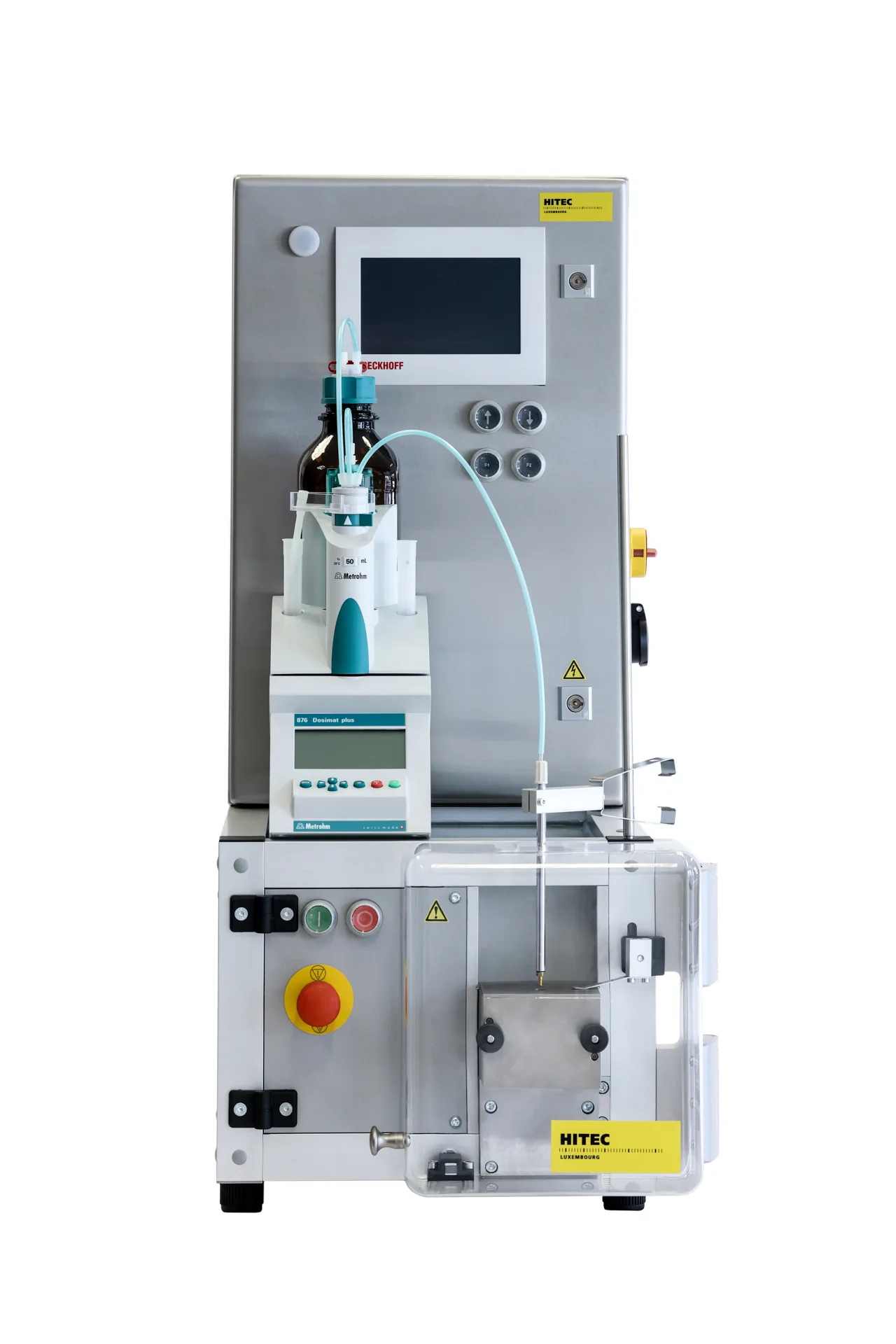

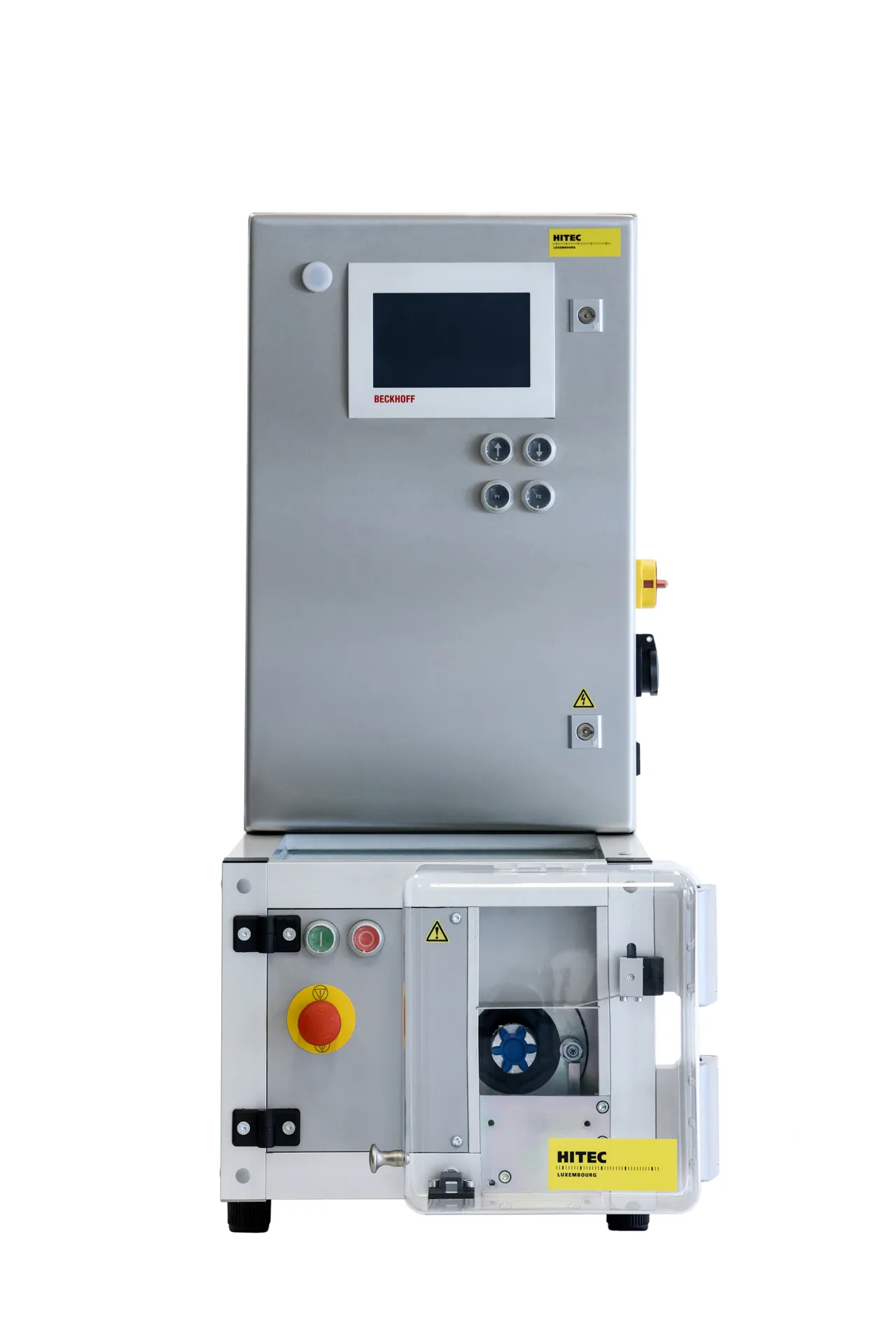

DABS Oil Absorption Basic System
HITEC · Oil Absorption Basic System

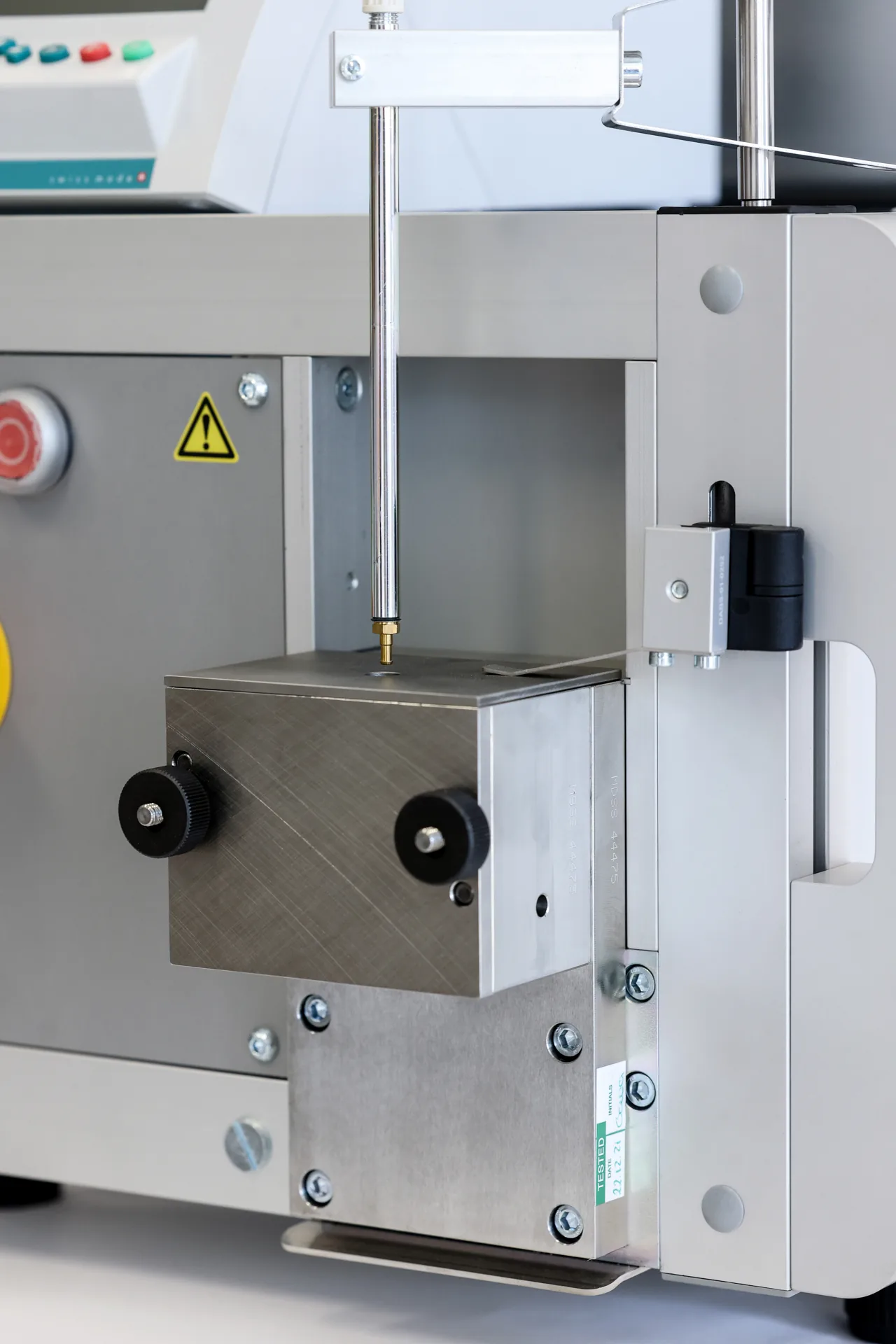

Oil absorption system that characterises the structure of carbon black and silica to ASTM D2414 (OAN), ASTM D3493 (COAN), ASTM D6854, ISO 4656 and ISO 19246. It records mixing torque against oil volume, applies normalisation against reference materials, and is operated from a panel-mounted 7" screen or a connected PC.
Datasheets
Specification

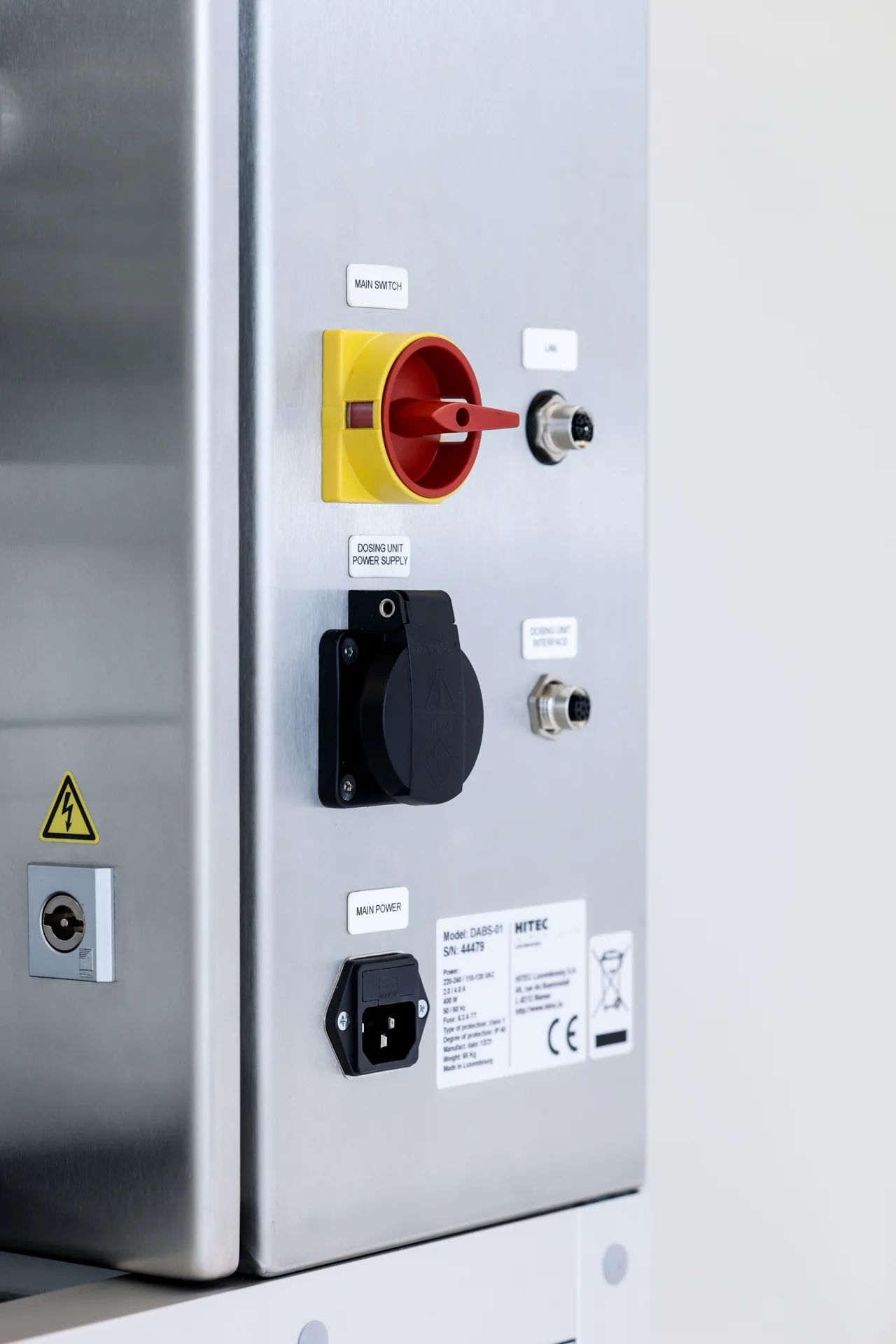

| Power supply | Voltage range 110-120 VAC or 220-240 VAC, 50/60 Hz |
|---|---|
| Size (W x D x H) | 44 x 70 x 95 cm |
| Net weight | 65 kg |
| Torque | Up to 15 Nm (option for 20 Nm) |
| Motor speed | Adjustable |
| Dosing unit flow rate | Adjustable |
| Operator interface | RJ45 to standard PC (software included with the instrument) |
| Temperature sensor input | Pt-100 |
| Software | Menu guided Java-based application |
| Output data formats | .csv and .xlsx; test report in .pdf |
| Certifications | CE marking; SGS-USTC certified |
| Weight | 65 kg |
| Dimensions (L x W x H) | 40.0 × 50.0 × 95.0 cm |
