- ISO 289
- ASTM D1646
- ISO 289-1

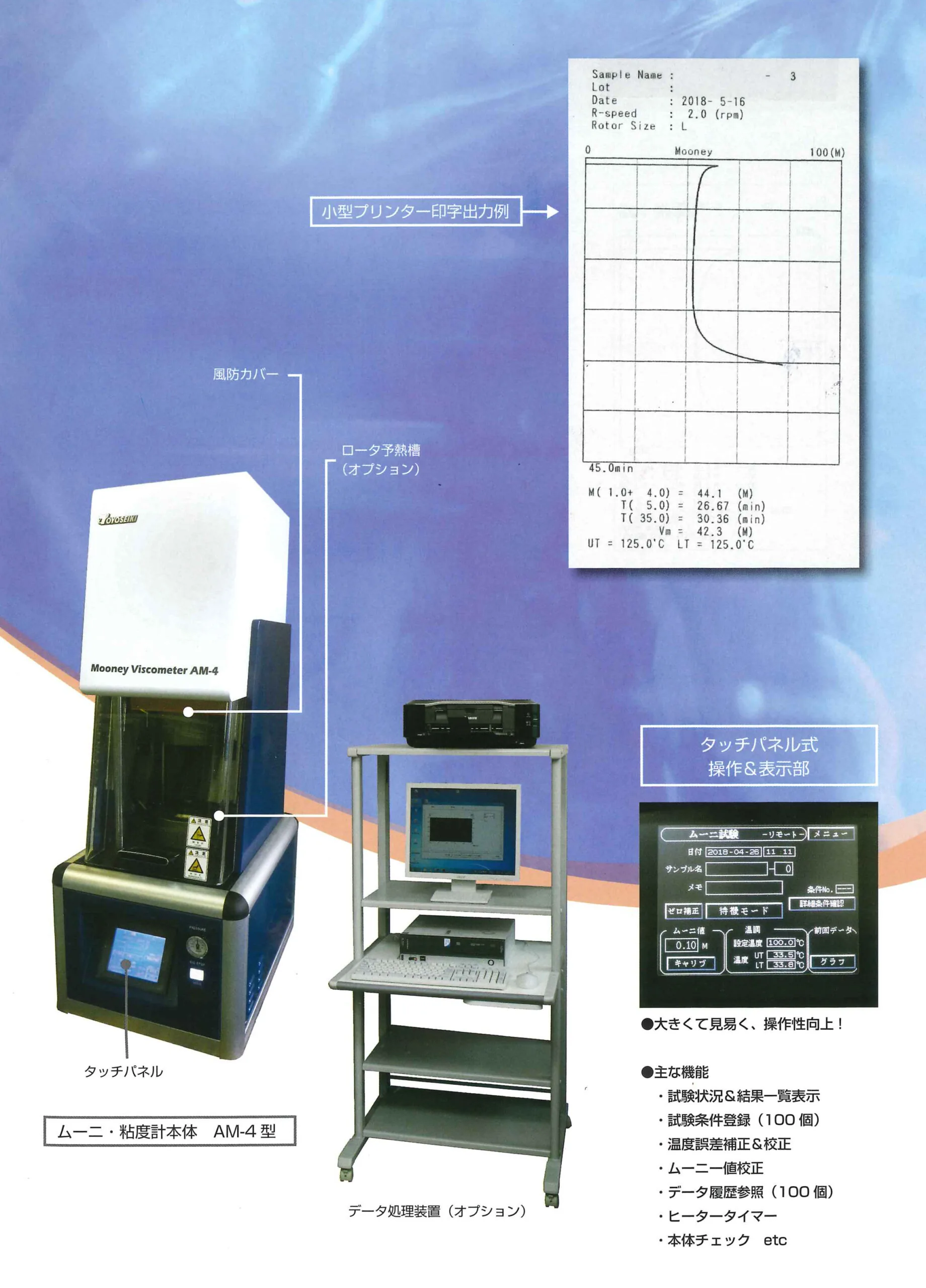

Mooney Viscometer | 275-AM-4
Toyo Seiki · Curing Properties / Mooney Viscosity
The Mooney Viscometer measures Mooney viscosity and Mooney scorch of un-vulcanized rubber according to ISO 289. Note: Rotorless Mooney Viscometer, RLM-4 does not conform to above testing standards. Options Spare parts Rotorless Mooney Viscometer | 274-RLM-4 The Rotorless Mooney Viscometer model RLM-4 conducts Mooney viscosity test and Mooney Scorch test.
Datasheets
- PDF (275)no-275-mooney-viscometer-275-am-4-cat-eng-20191127-mn.pdfDownload PDF
- PDF (274)no-275-mooney-viscometer-274-rlm-4-cat-eng-20191204-mn.pdfDownload PDF
Specification
| ISO 289-1 to 4 | • Rubber, unvulcanized — Determinations using a shearing-disc viscometer — Part 1: Determination of Mooney viscosity / • Rubber, unvulcanized — Determinations using a shearing-disc viscometer — Part 2: Determination of pre-vulcanization characteristics / • Rubber, unvulcanized — Determinations using a shearing-disc viscometer — Part 3: Determination of the Delta Mooney value for non-pigmented, oil-extended emulsion-polymerized SBR / • Rubber, unvulcanized — Determinations using a shearing-disc viscometer — Part 4: Determination of the Mooney stress-relaxation rate |
|---|---|
| ASTM D1646 | Standard Test Methods for Rubber—Viscosity, Stress Relaxation, and Pre-Vulcanization Characteristics (Mooney Viscometer) |
| Model | AM-4 |
| Die configuration | • V-groove (Standard) / • Square groove (Option) |
| Mooney viscosity | 200M max. |
| Test temperature | 200°C max. |
| Rotor speed | 2±0.02rpm |
| Power supply | Single-phase, AC200 to 230V, 50/60Hz, 2.4kVA (or specify) |
| Compressed air | 0.4 to 0.6MPa |
| Dimensions | W430 × D600 × H1190 mm |
| Weight (approx.) | 155 kg |
| PC and testing software | CON-L |
| Stress relaxation measurement | M-SR2 |
| Rotor preheating option | M-RPH |
| Air filter set | AC-4 |
| Square shape groove die | —– |
| L rotor | 2110059 |
| S rotor | 2110058 |
| Rubber bushing | 4102550 |
| Pt 100 resistance thermometer for control | 8120008 / 8120012 |
| Needle roller bearing | —– |
| Main PCB | —– |
| CPU board | —– |
| 24V power supply | —– |
| 5-15 power supply | —– |
| Touch screen | —– |
| Safety door switch | —– |
| Die stop switch | —– |
| Load cell (with rubber mount) | —– |
| Hanging wire for internal weight | —– |
| Vertical shaft | —– |
| Heater (mica ring heater, 530W) | —– |
| K thermocouple for overheat protection | —– |
| Model | RLM-4 |
| Related standard | N/A (Toyoseiki original design) |
| Sample chamber die | Rotorless (contactless, sealed type) |
| Rotation | 2rpm |
| Power supply | Single-phase, AC200V, 50/60Hz, 2.4kVA (or specify) |
| Compressed air | 0.45MPa |
| Dimensions | W430 × D600 × H1190mm |
| Weight (approx.) | 160kg |
Model comparison
| Item | Value |
|---|---|
| ISO 289-1 to 4 | • Rubber, unvulcanized — Determinations using a shearing-disc viscometer — Part 1: Determination of Mooney viscosity / • Rubber, unvulcanized — Determinations using a shearing-disc viscometer — Part 2: Determination of pre-vulcanization characteristics / • Rubber, unvulcanized — Determinations using a shearing-disc viscometer — Part 3: Determination of the Delta Mooney value for non-pigmented, oil-extended emulsion-polymerized SBR / • Rubber, unvulcanized — Determinations using a shearing-disc viscometer — Part 4: Determination of the Mooney stress-relaxation rate |
| ASTM D1646 | Standard Test Methods for Rubber—Viscosity, Stress Relaxation, and Pre-Vulcanization Characteristics (Mooney Viscometer) |
Scroll the table sideways for every column
| Item | Value |
|---|---|
| Model | AM-4 |
| Die configuration | • V-groove (Standard) / • Square groove (Option) |
| Mooney viscosity | 200M max. |
| Test temperature | 200°C max. |
| Rotor speed | 2±0.02rpm |
| Power supply | Single-phase, AC200 to 230V, 50/60Hz, 2.4kVA (or specify) |
| Compressed air | 0.4 to 0.6MPa |
| Dimensions | W430 × D600 × H1190 mm |
| Weight (approx.) | 155 kg |
Scroll the table sideways for every column
| Item | Value |
|---|---|
| PC and testing software | CON-L |
| Stress relaxation measurement | M-SR2 |
| Rotor preheating option | M-RPH |
| Air filter set | AC-4 |
| Square shape groove die | —– |
Scroll the table sideways for every column
| Item | Value |
|---|---|
| L rotor | 2110059 |
| S rotor | 2110058 |
| Rubber bushing | 4102550 |
| Pt 100 resistance thermometer for control | 8120008 / 8120012 |
| Needle roller bearing | —– |
| Main PCB | —– |
| CPU board | —– |
| 24V power supply | —– |
| 5-15 power supply | —– |
| Touch screen | —– |
| Safety door switch | —– |
| Die stop switch | —– |
| Load cell (with rubber mount) | —– |
| Hanging wire for internal weight | —– |
| Vertical shaft | —– |
| Heater (mica ring heater, 530W) | —– |
| K thermocouple for overheat protection | —– |
Scroll the table sideways for every column
| Item | Value |
|---|---|
| Model | RLM-4 |
| Related standard | N/A (Toyoseiki original design) |
| Sample chamber die | Rotorless (contactless, sealed type) |
| Mooney viscosity | 200M max. |
| Test temperature | 200°C max. |
| Rotation | 2rpm |
| Power supply | Single-phase, AC200V, 50/60Hz, 2.4kVA (or specify) |
| Compressed air | 0.45MPa |
| Dimensions | W430 × D600 × H1190mm |
| Weight (approx.) | 160kg |
Scroll the table sideways for every column
