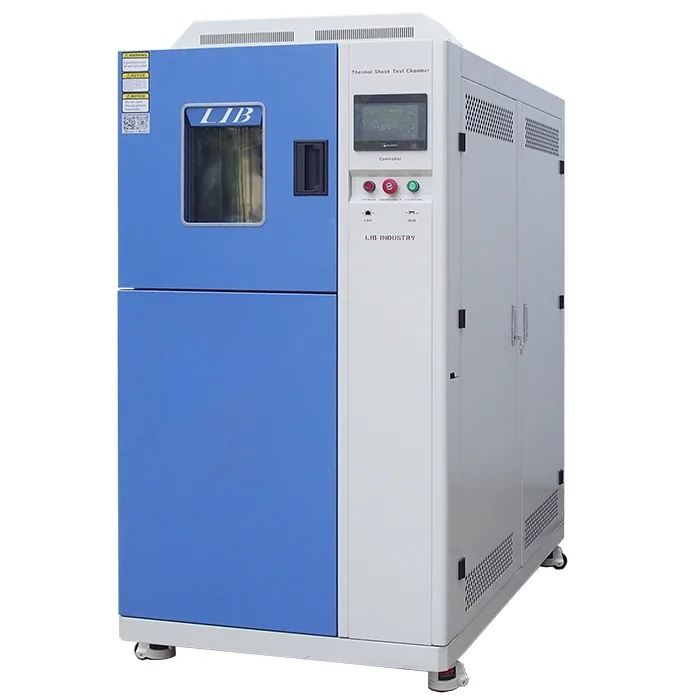

Thermal Shock Chamber
LIB · Thermal Shock & Temperature Cycling

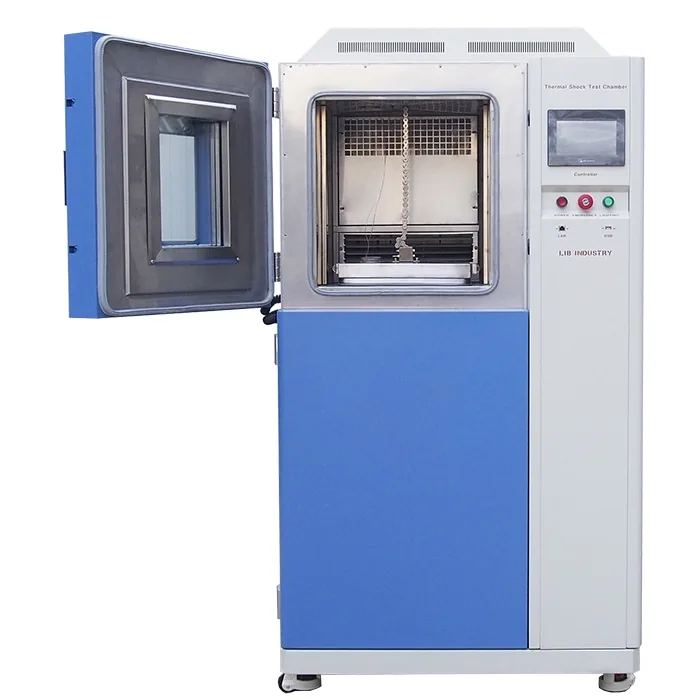

LIB thermal shock chamber for sale has types: basket type, three-room type, and horizontal movement type. Including air to air hot cold shock test, air to liquid shock test and liquid to liquid shock test. According to different test requirements, customers choose suitable thermal shock test chambers for testing.
ข้อมูลจำเพาะ

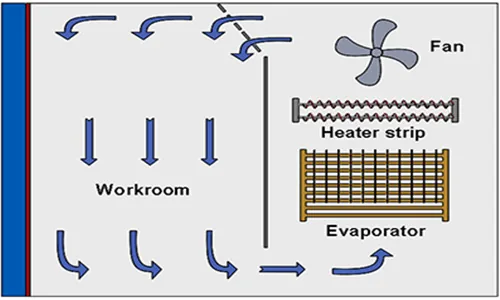

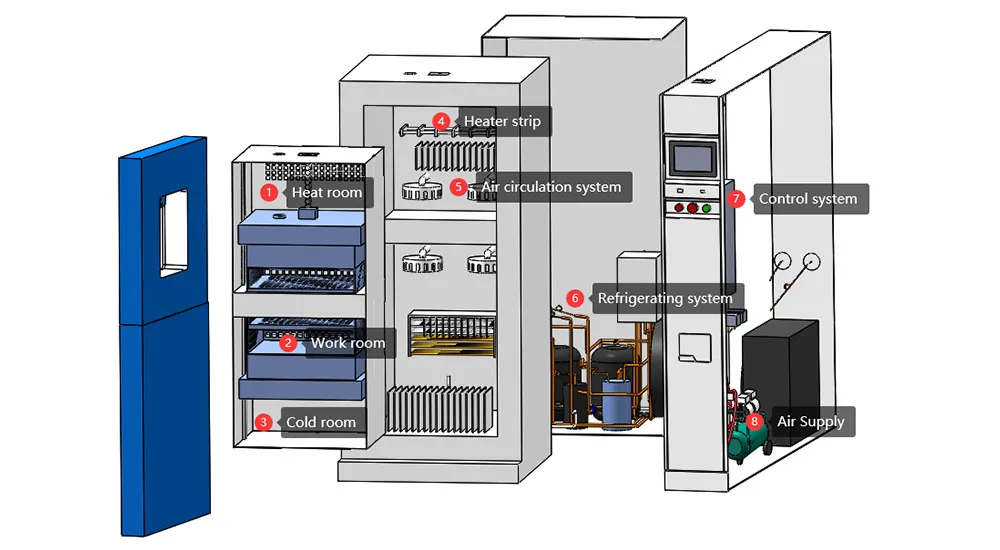

| Configuration of Thermal Shock Chamber | A thermal shock chamber is crucial for product testing. It has two main types. The liquid to liquid thermal shock chamber immerses samples in different liquids of contrasting temperatures for rapid thermal shock. The air to air thermal shock chamber uses hot and cold airflows. Both help evaluate product reliability and durability under extreme temperature changes, ensuring product quality in various thermal environments. |
|---|---|
| Send Inquiry | LIB Team will send you specs and quote today. |
| SUBMIT | Key features |

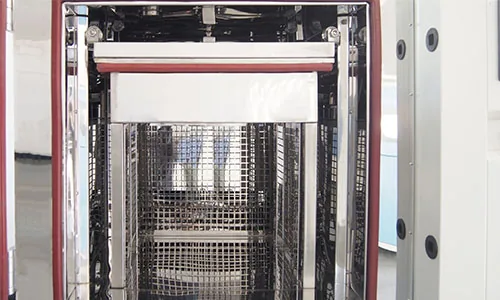

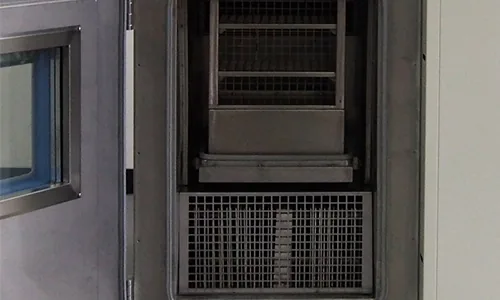

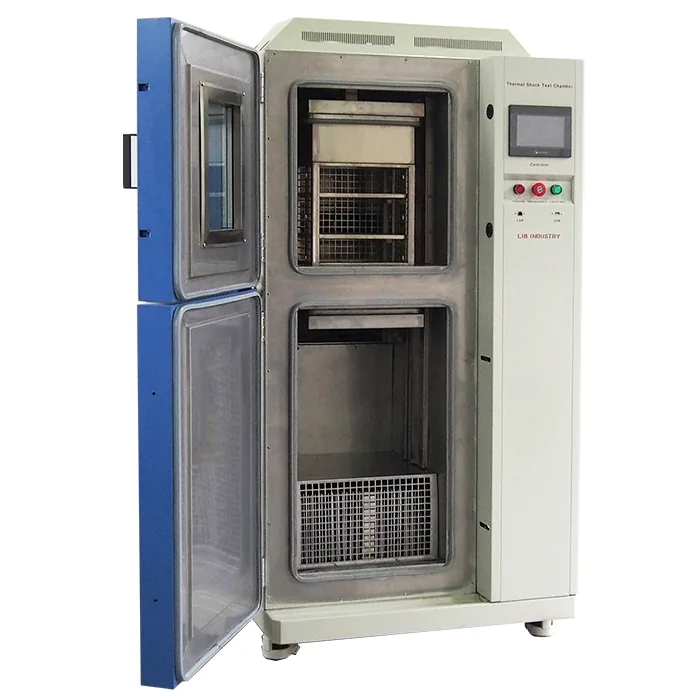

| • The thermal shock chamber has upper and lower basket type and static damper type. | • The high temperature chamber can realize air-to-air thermal shock testing, air-to-liquid and liquid-to-liquid thermal shock testing. |
| • From obtaining customer needs, to discussing solutions, production, transportation, installation and commissioning, LIB can realize one-stop solutions. | • The thermal shock environmental chambers, a kind of portable temperature humidity chamber , are mainly used in high and low temperature shock test of automobiles, EV batteries, electronic products and etc. |
ตารางเปรียบเทียบรุ่น
| Model | TS-162 | TS-340 | TS-500 | TS-1000 |
|---|---|---|---|---|
| Internal Dimensions (mm) | 300*300*250 | 450*450*360 | 650*650*500 | 850*850*700 |
| Overall Dimension (mm) | 1560*870*1545 | 1710*1020*1845 | 1910*1220*2265 | 2110*1420*2665 |
| Interior Volume (mm) | 22L | 72L | 211L | 505L |
| Loading Capacity | 20kg | 30kg | 50kg | 60kg |
| Pre-heat Room | Upper limit Temperature | +220℃ | ||
| Heating Time | Ambient ~ + 200℃, within 30 minutes | |||
| Pre-cool Room | Lower limit Temperature | -75℃ | ||
| Cooling time | Ambient ~ -70℃, within 30 minutes | |||
| Test Room | High Temperature Exposure Range | Ambient +20 ~ +200°C | ||
| Low temperature Exposure Range | –65 ~ -5°C | |||
| Temperature Fluctuation | ≤±0.5℃ | |||
| Temperature Deviation | ≤±3 ℃ | |||
| Temperature Recovery Time | Within 5 minutes | |||

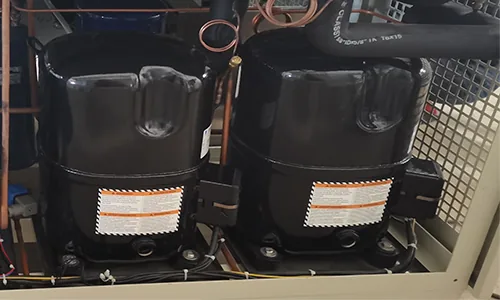

| Cooling System | Mechanical compression refrigeration system | |||

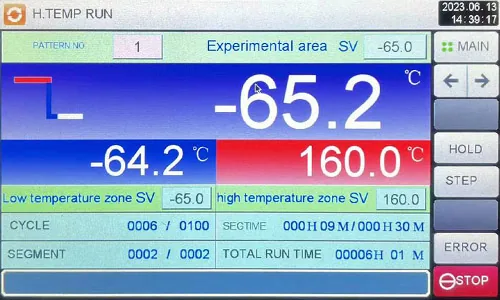

| Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
| Safety Device | Over-temperature protection, Over-current protection; Refrigerant high-pressure protection; Earth leakage protection | |||
| Exterior Material | Steel Plate with protective coating | |||
| Interior Material | SUS304 stainless steel | |||

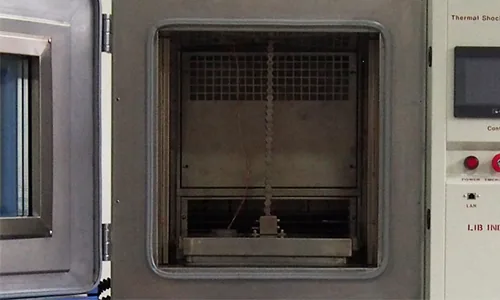

| Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||
| Standard Configuration | 2 shelves |
