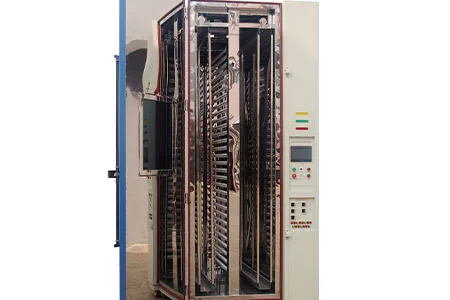

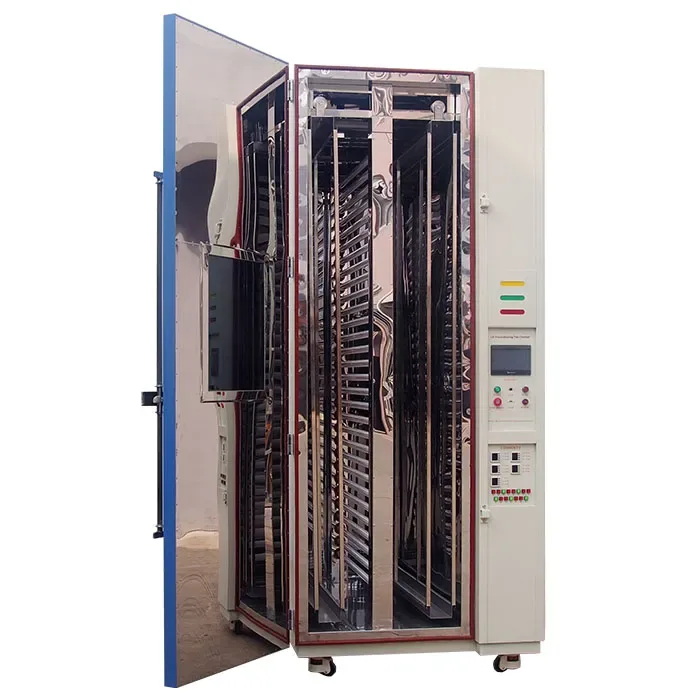

UV Preconditioning Test Chamber for Solar Panels
LIB · Weathering, UV & Ozone
The UV Preconditioning Test Chamber for Solar Panels is purpose-built to support ultraviolet exposure steps defined in IEC 61215 and IEC 61730 photovoltaic qualification workflows. The system delivers stable UVA-dominant radiation (320–400 nm) with controlled UVB contribution and UVC content, while maintaining stable chamber temperatures up to 90 °C and Black Panel Temperature (BPT) from 35 °C to 80 °C . UV stress is managed through a ccumulated radiant energy control (kWh/m²) , ensuring repeatable and standard-aligned preconditioning prior to damp heat, thermal cycling, and mechanical load te
เอกสารดาวน์โหลด
ข้อมูลจำเพาะ
| Model | UVP-02 |
|---|---|
| Internal Dimension (mm) | 1450*745*2500 D*W*H |
| Overall Dimension (mm) | 1875*1210*2800 D*W*H |
| Specimen Holder Size(mm) | 1400*2400 W*H |
| Specimen Capacity | 2/4/6/... Pieces |

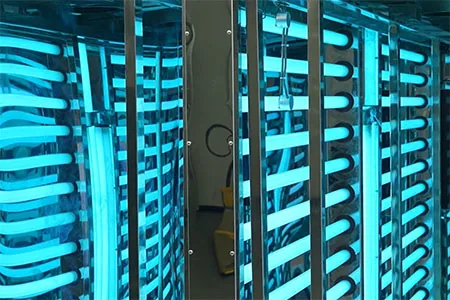

| Irradiation Source | Fluorescent UVA lamps (20 pieces) and UVB lamps (10 pieces) |
| Temperature Range | Ambient ～ 90 ℃ ±2℃ |
| Black Panel Temperature (BPT) | 35 ～ 80 ℃ |
| Bandwidth | UVC: (< 0.1%) UVB: (3% to 10% of total UV) UVA: (90% to 97% of total UV) |
| Irradiance Control | ●The wavelength of 280 nm - 320 nm：7.5 k Wh/m2 ●The wavelength of 320 nm - 400 nm：15 k Wh/m2 ●Maximum Irradiance in the UV range: < 250 W/m2 |
| Controller | Programmable color LCD touch screen controller |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
| Thermal Insulation | Polyurethane foam and insulation cotton |
| Power Supply | AC380V 50Hz 3Phase |
