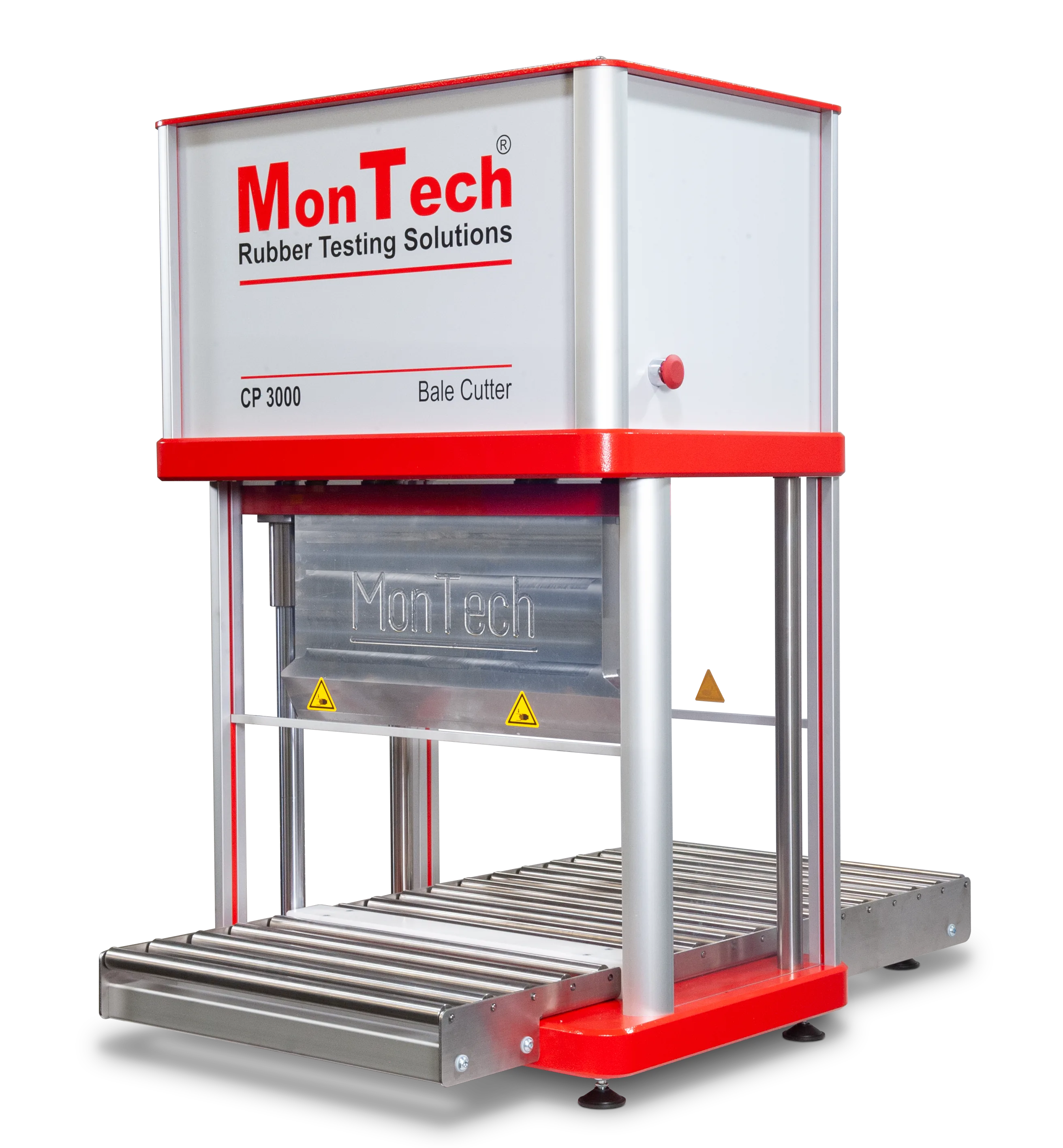

CP 3000 Bale Cutters
MonTech · Bale Cutters

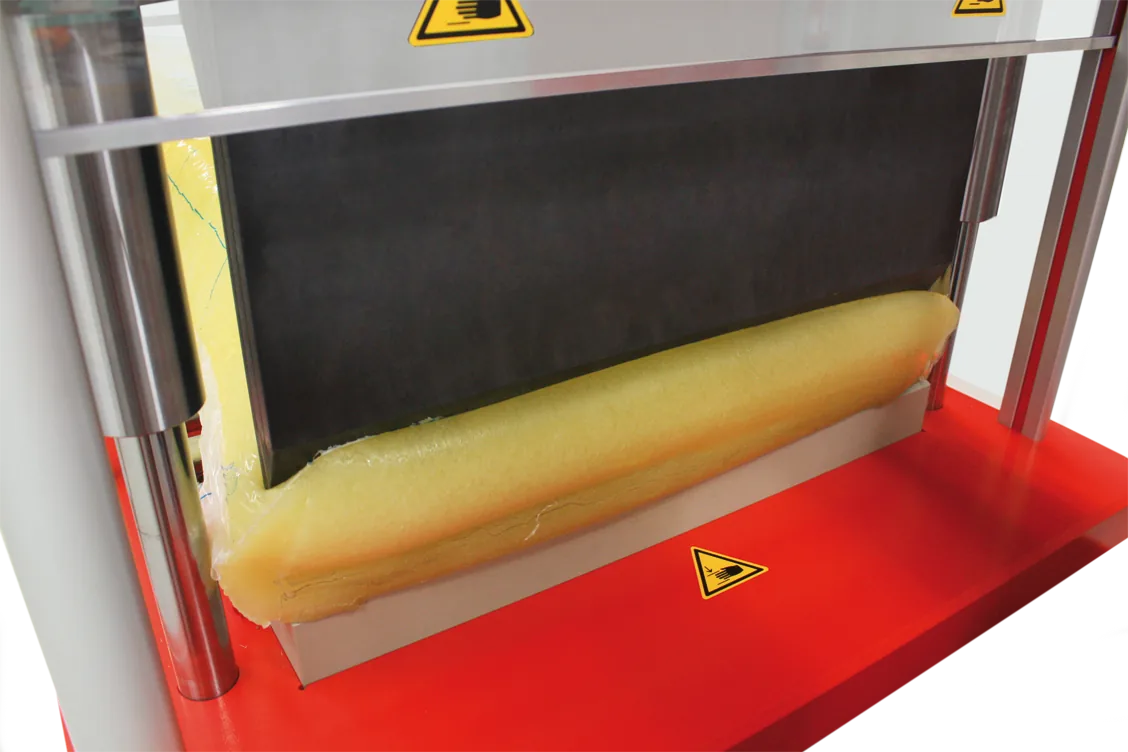

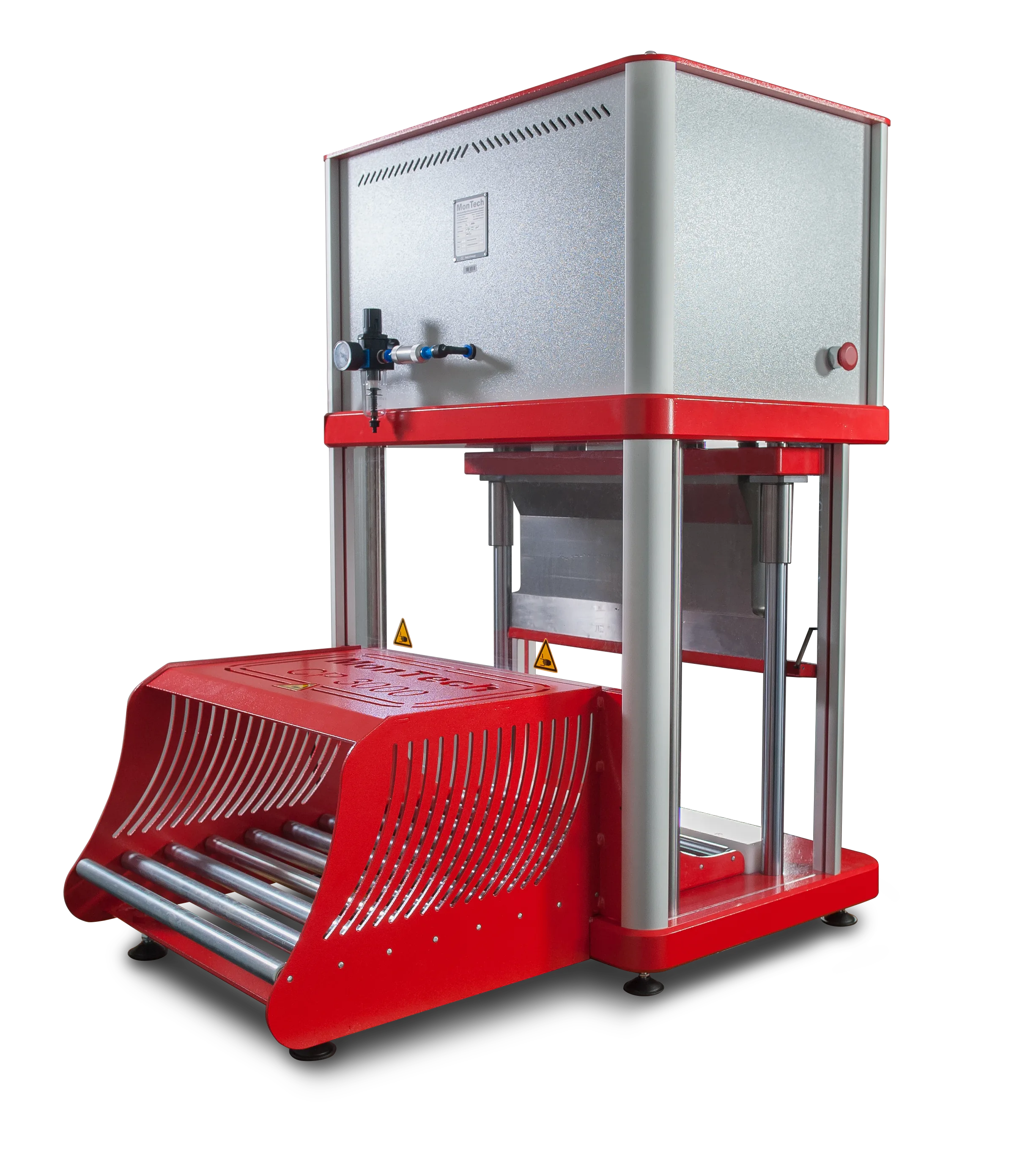

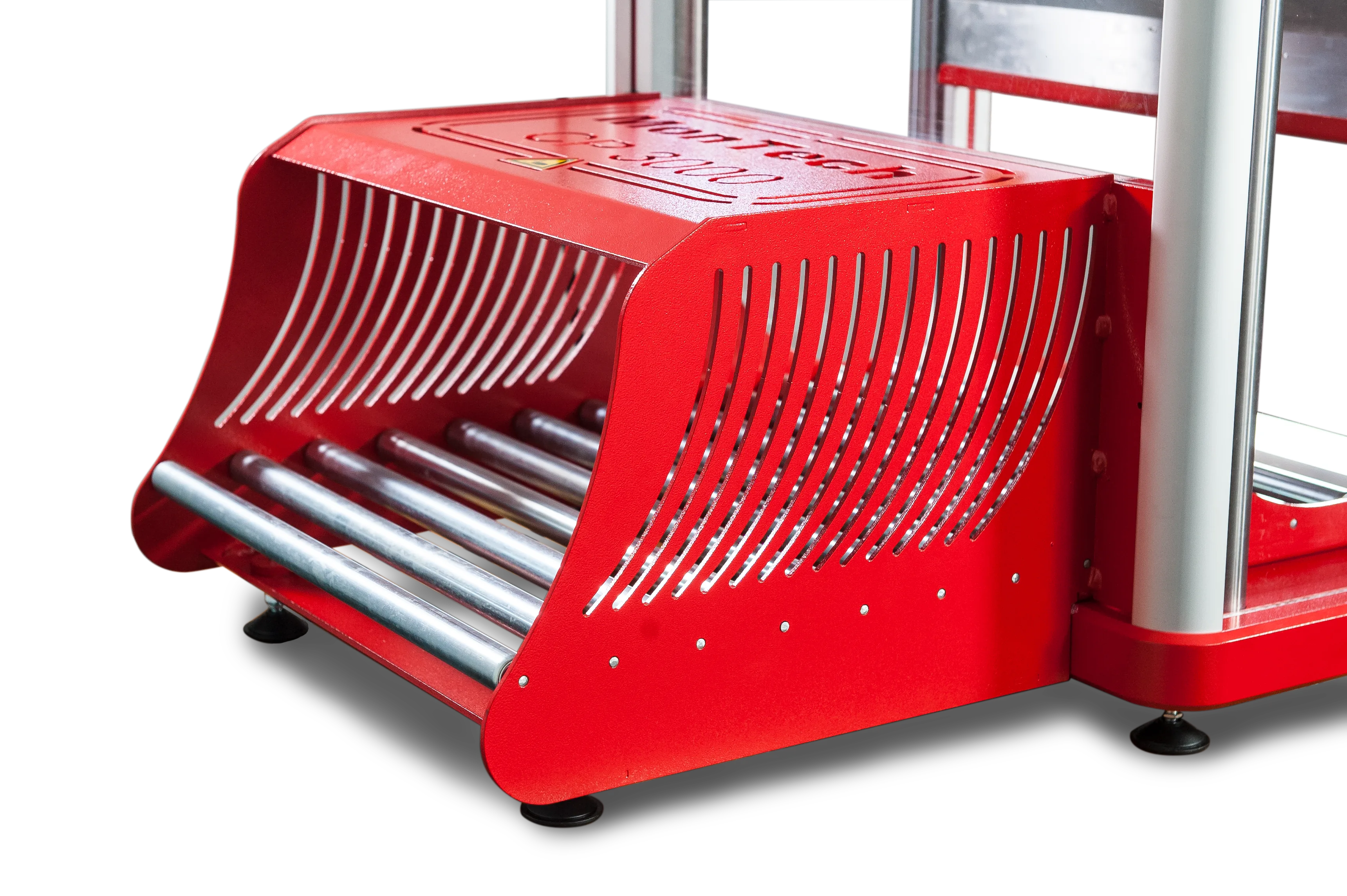

The laboratory bale cutter CP 3000 provides the most convenient solution to cut and slice polymers bales, blocks and rubber sheets. Fitted with a two-hand safety operation system, optional automatic knife cover and feeding tunnel the unit provides utmost operator convenience meeting highest safety standards.
เอกสารดาวน์โหลด
- MonTech General Cataloguemontech-product-catalogue-2023.pdfดาวน์โหลด PDF
- MonTech Specimen and Die cuttingmontech-specimen-and-die-cutting-2021.pdfดาวน์โหลด PDF
- CP 3000 datasheetspecimen-preparation-low.pdfดาวน์โหลด PDF
ข้อมูลจำเพาะ
| Operation | Up to 12 cuts / minute |
|---|---|
| Bale width / cutting width | max. 520 mm max. 285 mm |
| Bale height / cutting height | max. 240 mm max. 148 mm |
| Cutting pressure (adjustable) | Min: 0.6 tons @ 2.0 bar / Max: 4.6 tons @ 10.0 bar |

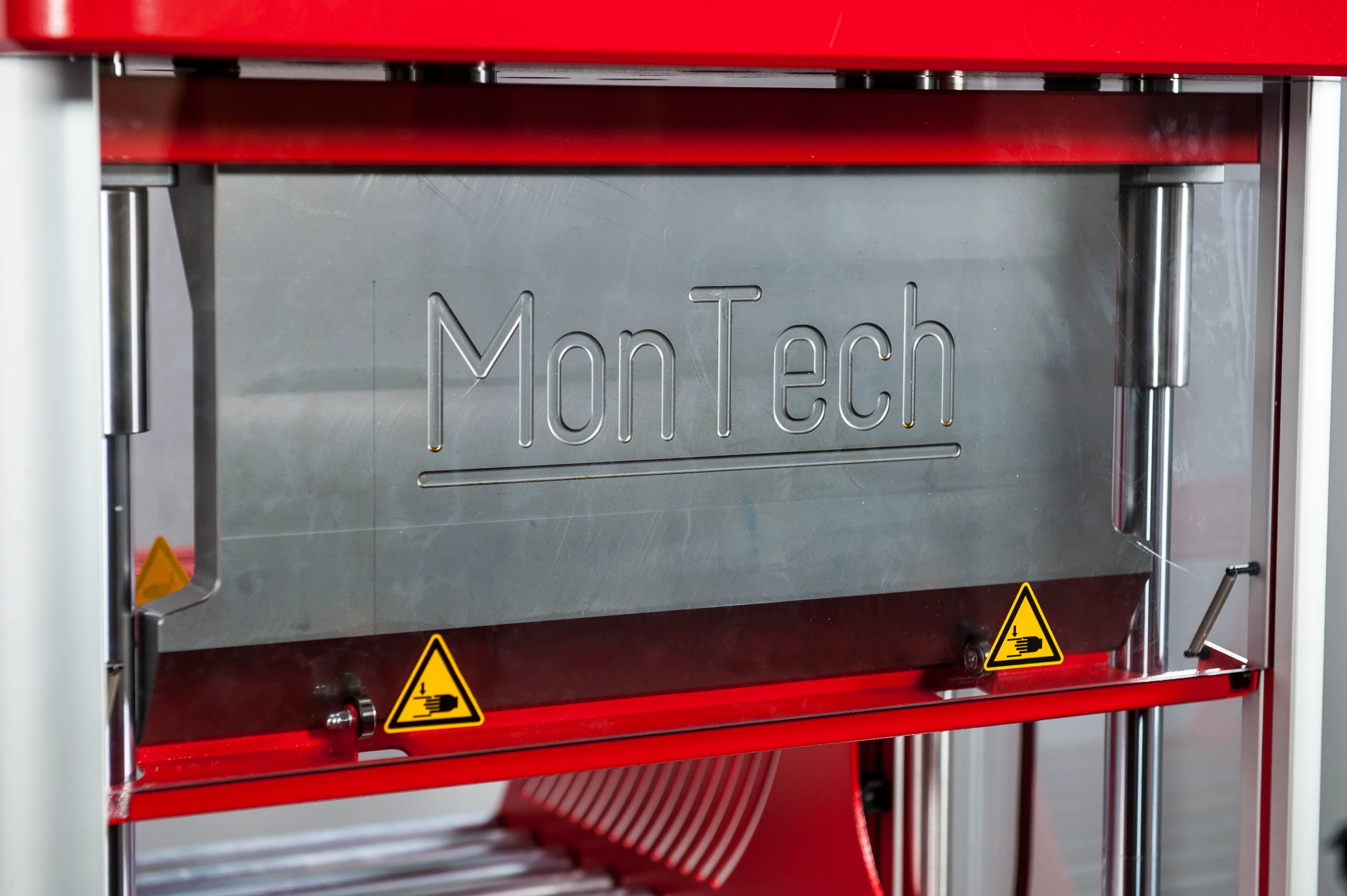

| Cutting knive | hardened and precision ground |
| Cutting block | Teflon, exchangeable |
| Material supply | roller conveyor, roller conveyor, total length 750 mm total length 400 mm |
| Safety equipment | pneumatic safety 2-hand operation (anti-tiedown), transparent safety shields at both sides as well as front and backside of the machine |
| Required supplies | Compressed air with min. 2 bars (5 bars recommended), No electrical connection required! |
| Dimensions (H x W x D) | 1085 x 900 x 700 mm 940 x 480 x 560 mm |
| Weight | approx. 225 kg net approx. 120 kg net |
| Optional items | High speed version with increased cutting speed; Various cutting block designs; Different cutting width and bale length designs; Safety lid for knife edge; Frontside conveyor; Frontside safety shield with / without conveyor; Backside feeding tunnel; Backside safety shield; Heated cutting knife (ambient to + 80°C); Cutting line laser; Setup table or cart; Rubber bale lifting and handling systems |
| International Standards | BE EN 242 Part 2, ASTM D 7050 |
| Cutting force (adjustable) | Min: 0.6 tons @ 2.0 bar Min: 0.3 tons @ 2.0 bar Max: 4.6 tons @ 10.0 bar Max: 2.5 tons @ 10.0 bar |
ตารางเปรียบเทียบรุ่น
| CP 3000 Standard | CP 3000 Compact | |
|---|---|---|
| International Standards | BE EN 242 Part 2, ASTM D 7050 | |
| Operation | Up to 12 cuts / minute | |
| Bale width / cutting width | max. 520 mm | max. 285 mm |
| Bale height / cutting height | max. 240 mm | max. 148 mm |
| Cutting force (adjustable) | Min: 0.6 tons @ 2.0 bar; Max: 4.6 tons @ 10.0 bar | Min: 0.3 tons @ 2.0 bar; Max: 2.5 tons @ 10.0 bar |
| Cutting knive | hardened and precision ground | |
| Cutting block | Teflon, exchangeable | |
| Material supply | roller conveyor, total length 750 mm | roller conveyor, total length 400 mm |
| Safety equipment | pneumatic safety 2-hand operation (anti-tiedown), transparent safety shields at both sides as well as front and backside of the machine | |
| Required supplies | Compressed air with min. 2 bars (5 bars recommended), No electrical connection required! | |
| Dimensions (H x W x D) | 1085 x 900 x 700 mm | 940 x 480 x 560 mm |
| Weight | approx. 225 kg net | approx. 120 kg net |
