- ISO 2393
- ASTM D 3182

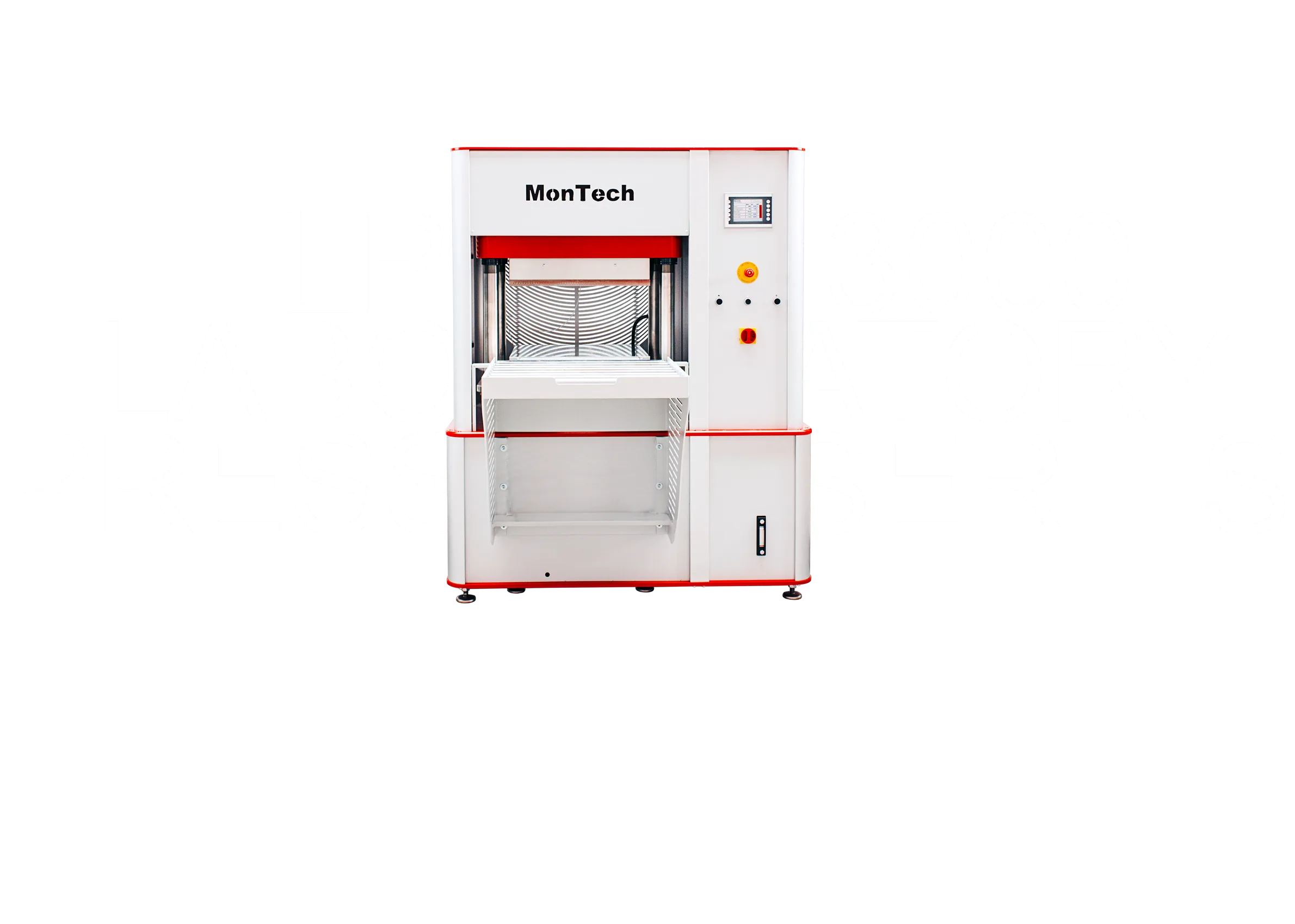

LP 3000 – 1500kN Laboratory press
MonTech · Laboratory press
The 1500 kN rubber laboratory press is designed to accommodate larger molds and lighter scale production. Featuring the best insulation, platen parallelism, heat stability and data collection software, the 1500kN press is compliant to the strictest laboratory press standards making it the top-tier press for R&D.
เอกสารดาวน์โหลด
- MonTech General Cataloguemontech-product-catalogue-2023.pdfดาวน์โหลด PDF
- MonTech Specimen and Die cuttingmontech-specimen-and-die-cutting-2021.pdfดาวน์โหลด PDF
- LP 3000 – 1500kN datasheeten-montech-laboratory-press-low.pdfดาวน์โหลด PDF
ข้อมูลจำเพาะ
| Type | Hydraulic floorstanding |
|---|---|
| Closing Force [kN] | 1500 |
| Press platen size [mm] | 596 x 596 |
| Cylinder stroke [mm] | 300 |
| Specific platen pressure [N/mm²] | 4.22 |
| Heating type | electrical |
| Capacity per platen [kW] | 10.0 |
| Weight | 800 kg |
| Max. temperature [°C] | 250 |
| Temperature accuracy [°C] | +/- 0.5 |
| 2-Hand safety control with user modes | Standard |
| Pneumatic safety front shield | Standard |
| PLC Control with 5.7“ color Touchscreen (Program storage is standard (up to 100), Cycle programs optional) | Standard |
| LED Status Signal tower with buzzer | Option |
| LED interior worklight for press platens | Option |
| Fully enclosed work area with ventilation | Option |
| Data acquisition system offline / Ethernet or USB or online with MonPress software with 4, 8 or 12 additional PT 100 temperature channels | Option |
| Proportional high precision force control | Standard |
| Cooling systems (air / water open or closed loop) | Option |
| Enlarged ram strokes and platens | Option |
| High-temperature version (300°C / 400°C) | Option |
| Second daylight - totally 4 heated platens | Option |
| Third daylight - totally 6 heated platens | Option |
| Press table (fixed / height adjustable) | Option / Option |
| Dimensions (HxWxD) (net, single layer machine without options) [mm] | 1950 x 1450 x 900 |
| Weight (approx. net, single layer machine without options) | 2.500 kg |
ตารางเปรียบเทียบรุ่น
| Unit | VP 3000 | LP 3000 - 200kN | LP 3000 - 400kN | LP 3000 - 600kN | LP 3000 - 1000kN | LP 3000 - 1000kN L | LP 3000 - 1500kN | |
|---|---|---|---|---|---|---|---|---|
| Type | Pneumatic tabletop | Hydraulic tabletop | Hydraulic floorstanding | Hydraulic floorstanding | Hydraulic floorstanding | Hydraulic floorstanding | Hydraulic floorstanding | |
| Closing Force | kN | 40 | 200 | 400 | 600 | 1000 | 1000 | 1500 |
| Press platen size | mm | ø 180 | 196 x 196 | 296 x 296 | 446 x 446 | 446 x 446 | 596 x 596 | 596 x 596 |
| Cylinder stroke | mm | 100 | 100 | 300 | 200 | 300 | 300 | 300 |
| Specific platen pressure | N/mm² | 1.05 | 5.21 | 4.57 | 3.02 | 5.03 | 2.82 | 4.22 |
| Heating type | electrical | electrical | electrical | electrical | electrical | electrical | electrical | |
| Capacity per platen | kW | 1.6 | 2.8 | 4.0 | 6.0 | 6.0 | 10.0 | 10.0 |
| Max. temperature | °C | 200 | 250 | 250 | 250 | 250 | 250 | 250 |
| Temperature accuracy | °C | +/- 0.5 | +/- 0.5 | +/- 0.5 | +/- 0.5 | +/- 0.5 | +/- 0.5 | +/- 0.5 |
| 2-Hand safety control with user modes | X | X | X | X | X | X | X | |
| Pneumatic safety front shield | X | X | X | X | X | X | X | |
| PLC Control with 5.7“ color Touchscreen (Program storage is standard (up to 100), Cycle programs optional) | X | X | X | X | X | X | X | |
| LED Status Signal tower with buzzer | – | O | O | O | O | O | O | |
| LED interior worklight for press platens | – | – | – | O | O | O | O | |
| Fully enclosed work area with ventilation | – | O | O | O | O | O | O | |
| Data acquisition system offline / Ethernet or USB or online with MonPress software with 4, 8 or 12 additional PT 100 temperature channels | – | O | O | O | O | O | O | |
| Proportional high precision force control | – | – | X | X | X | X | X | |
| Cooling systems (air / water open or closed loop) | O | O | O | O | O | O | O | |
| Enlarged ram strokes and platens | – | O | O | O | O | O | O | |
| High-temperature version (300°C / 400°C) | – | O | O | O | O | O | O | |
| Second daylight - totally 4 heated platens | – | – | O | O | O | O | O | |
| Third daylight - totally 6 heated platens | – | – | – | O | O | O | O | |
| Press table (fixed / height adjustable) | – | O/O | O/O | O/O | O/O | O/O | O/O | |
| Mould cart (movable) / Mould rack (stationary) | – | – | O/O | O/O | O/O | O/O | O/O | |
| Dimensions (HxWxD) (net, single layer machine without options) | mm | 930 x 560 x 480 | 970 x 790 x 550 | 1695 x 800 x 590 | 1750 x 1250 x 800 | 1750 x 1250 x 800 | 1950 x 1450 x 900 | 1950 x 1450 x 900 |
| Weight (approx. net, single layer machine without options) | 105 kg | 450 kg | 800 kg | 1.100 kg | 1.400 kg | 2.350 kg | 2.500 kg |
