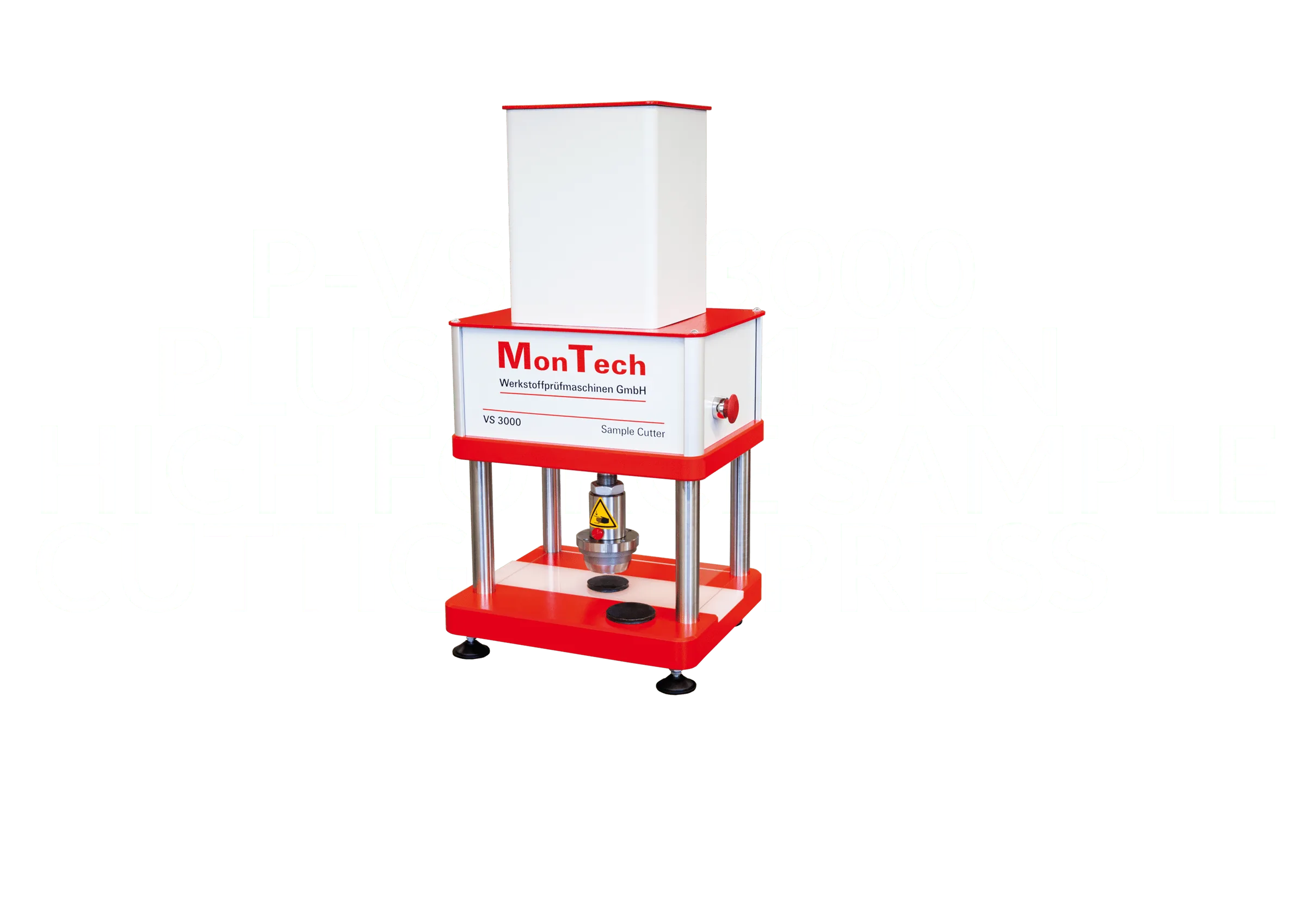

P-VS plus 15 kN Die and Sample cutting

รุ่นP-VS plus 15 kN

MonTech · Die and Sample cutting

Universal sample cutter for multiple-blade cutting station knives or tough materials requiring high cutting forces. Whenever there is a need to save time and increase productivity by cutting multiple samples at the same time, P-VS 3000 is the ideal sample cutter.

ขอใบเสนอราคา

เอกสารดาวน์โหลด

ข้อมูลจำเพาะ

Cutting force	15 kN or 40 kN
Cutting stroke	30 mm
Max. material thickness / hardness	10 mm / 98 Shore A (15kN) 10 mm / 70 Shore D (40kN)
Reproducibility	0.1 %
Compatible cutting knives	Any ISO, DIN, ASTM and other standard die types
Dimensions (H x W x D)	690 mm x 300 mm x 380 mm
Weight	approx. 72 kg / 86 kg net
Pneumatics	min. 5.0 Bar

ตารางเปรียบเทียบรุ่น

P-VS 3000 die cutter / clicker press series - comparison (SpecimenCutting 2021, p. 3)

Specification	P-VS 3000 M	P-VS 3000	P-VS 3000 Plus	P-VS 3000 L	P-VS 3000 L Plus
Description	Manual sample cutter	Universal Sample cutter	High force sample cutting press	Large working area universal sample cutter	High force large working area sample cutting press
Cutting force	3.8 kN	8 kN	15 kN or 40kN	8 kN	15 kN or 40kN
Cutting stroke	30 mm	30 mm	30 mm	30 mm	30 mm
Die height	20 – 150 mm	20 – 50 mm	20 – 50 mm	20 – 50 mm	20 – 50 mm
Throat depth	70 mm	120 mm	120 mm	180 mm	180 mm
Cutting area	120 x 80 mm	250 x 100 mm (250 x 125mm optional)	250 x 100 mm (250 x 125mm optional)	370 x 200 mm	370 x 200 mm
Max. material thickness / hardness	6 mm / 95 Shore A	8 mm / 95 Shore A	10 mm / 98 Shore A (15kN); 10 mm / 70 Shore D (40kN)	8 mm / 95 Shore A	10 mm / 98 Shore A (15kN); 10 mm / 70 Shore D (40kN)
Compatible cutting knives	Any ISO, DIN, ASTM and other standard die types	Any ISO, DIN, ASTM and other standard die types	Any ISO, DIN, ASTM and other standard die types	Any ISO, DIN, ASTM and other standard die types	Any ISO, DIN, ASTM and other standard die types
Reproducibility	0.1 %	0.1 %	0.1 %	0.1 %	0.1 %
Dimensions (H x W x D)	380 x 120 x 180 mm	440 x 350 x 380 mm	690 x 350 x 380 mm	440 x 470 x 500 mm	690 x 470 x 500 mm
P-VS sliding table Dimensions (H x W x D)	–	460 x 300 x 1050 mm	460 x 300 x 1050 mm	–	–
Weight	14 kg	50 kg	72 kg (15kN); 108 kg (40kN)	78 kg	100 kg (15kN); 146 kg (40kN)
Pneumatics (recommended line pressure)	–	min. 5.0 Bar	min. 5.0. Bar	min. 5.0. Bar	min. 5.0. Bar
