Gas Transmission Rate Tester (GTR / Gas Permeability Tester) | 571
Toyo Seiki · Permeability / Gas Transmission Rate / Water Vapour Transmission Rate

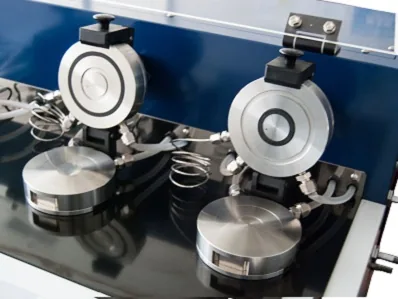

The Gas Transmission Rate Tester (GTR Tester) measures gas transmission rate (gas barrier property) of packaging materials such as plastic films. Measurement of gas transmission rate of polymer films such as plastic films, etc. is important because, for example in case of packaging materials, preservation of the content of a package considerably depends on the gas barrier property of the packing material.
เอกสารดาวน์โหลด
คุณสมบัติ
- – An automatic valve is used to realize fully automatic measurement. (No need for conventional manual valve operation)
- – Many kinds of gases can be measured. (Differential pressure method)
- – Additional expansion is possible by modular design.
- – Since measurement is performed while data is stored, data can be analyzed even during testing.
- – Mail transmission function allows you to receive a message when an error occurs or the test ends.
- – Allows analysis of diffusion coefficient and solubility coefficient (Optional)
- – High sensitivity vacuum pressure gauge of reading accuracy 0.25% is employed.
- – Specimen table supports two different sizes of specimen.
- – Performs temperature error correction of transmission gas.
ข้อมูลจำเพาะ
| ISO 15105-1 | Plastics — Film and sheeting — Determination of gas-transmission rate — Part 1: Differential-pressure methods |
|---|---|
| ISO 2782-1 | Rubber, vulcanized or thermoplastic — Determination of permeability to gases — Part 1: Differential-pressure methods |
| ISO 7229 | Rubber- or plastics-coated fabrics — Measurement of gas permeability |
| ASTM D1434-23 | Standard Test Method for Determining Gas Permeability Characteristics of Plastic Film and Sheeting |
| JIS K 7126-1 | Plastics-Film and sheeting-Determination of gas-transmission rate- Part 1 : Differential-pressure method |
| JIS K 6275-1 | Rubber, vulcanized or thermoplastic- Determination of permeability to gases-Part 1: Differential pressure method |
| JIS K 6404-3 | Testing methods for rubber- or plastics-coated fabrics- Part 3: Determination of physical properties (Application) |
ตารางเปรียบเทียบรุ่น
| Model | CR1 | CR3 | CT1 | CT3 |
|---|---|---|---|---|
| Number of specimen | 1 | 3 | 1 | 3 |
| Temperature range | Room temperature | 10 to 90°C (hot water circulation) | ||
| Dimensions of specimen | • 50 × 50mm(measuring cell: ∅30mm, transmission area: 707mm2) / • 90 × 90mm(measuring cell: ∅70mm, transmission area: 3848mm2) | |||
| GTR measurement range / (To be selected type A or B upon order) | • Type A: 4.5×10-15〜4.5×10-12 [mol/(m2・s・Pa)] (0.1 〜100[fm/(Pa・s)]) / • Type B: 4.5×10-14〜4.5×10-11 [mol/(m2・s・Pa)] (1 〜1000[fm/(Pa・s)]) | |||
| Test gas | • Oxygen / • Nitogen / • Carbon dioxide / • Air / • Hydrogen (Optional) etc. | |||
| Test gas pressure | 0 to 200kPa | |||
| Measurement items | • Gas transmission rate / • Gas transmission coefficient / • Diffusion coefficient, Dissolution coefficient (Optional) | |||
| PC & testing software | Provided as standard feature | |||
| Options | • Additional measurement module, room temperature model (MCR1) / • Additional measurement module, temperature control model (MCT1) / • Diffusion coefficient measurement device (CKK-1・CKK-3) / • Hydrogen gas measurement unit(CH) | |||
| Power supply | • Main unit: Single-phase, AC100V, 50/60Hz, 0.5kVA / • PC: Single-phase, AC100V, 50/60Hz, 0.3kVA / • Vacuum pump: Single-phase, AC100V, 50/60Hz, 0.6kVA / • Warm water circulation bath: Single-phase, AC100V, 50/60Hz, 1.5kVA / • With hydrogen gas measurement option: Three-phase, AC200V, 50/60Hz, 1.0kVA | |||
| Compressed air | 0.4MPa | |||
| Dimensions | • W550 × D560 × H470mm(CR1, CT1) / • W800 × D560 × H470mm(CR3, CT3) | |||
| Weight (approx.) | • 50kg(CR1, CT1) / • 70kg(CR1, CT1) |
