Charpy/Izod Specimen Automatic Notching Machine / Notching Tool™ | 628-A-4/A-4E
Toyo Seiki · Impact
The Notching Tool A-4 series are miniature, computerized numerically controlled milling machine for preparing a variety of notched specimen bars. All operations except mounting and dismounting of the specimens are automatic. Notch cutter (Milling cutter) Slice cutter (A-4 only) Other options *A-4 only Ordering Information
เอกสารดาวน์โหลด
The Notching Tool A-4 series are miniature, computerized numerically controlled milling machine for preparing a variety of notched specimen bars.
All operations except mounting and dismounting of the specimens are automatic.

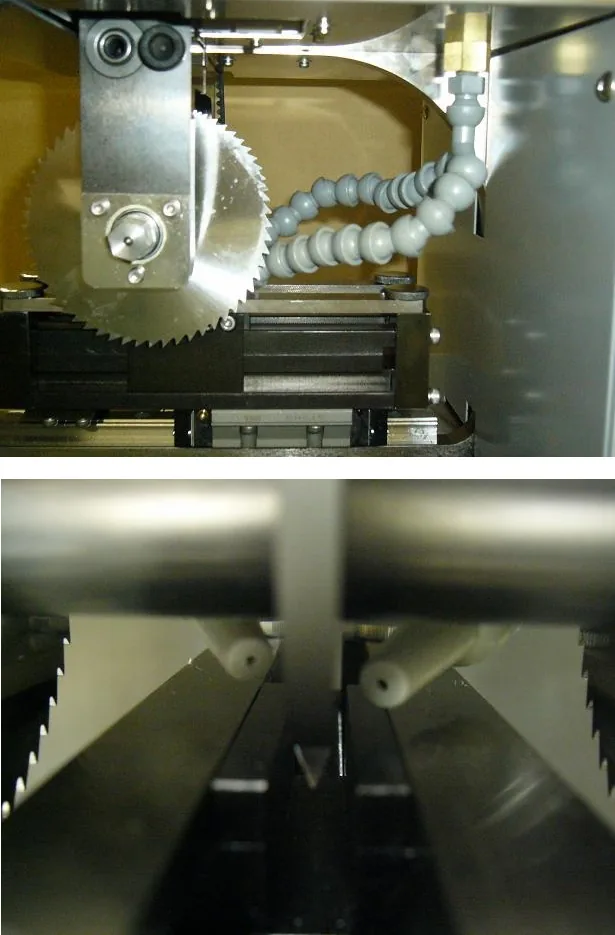

Notch cutter (Milling cutter)
Slice cutter (A-4 only)
Other options
*A-4 only
Ordering Information

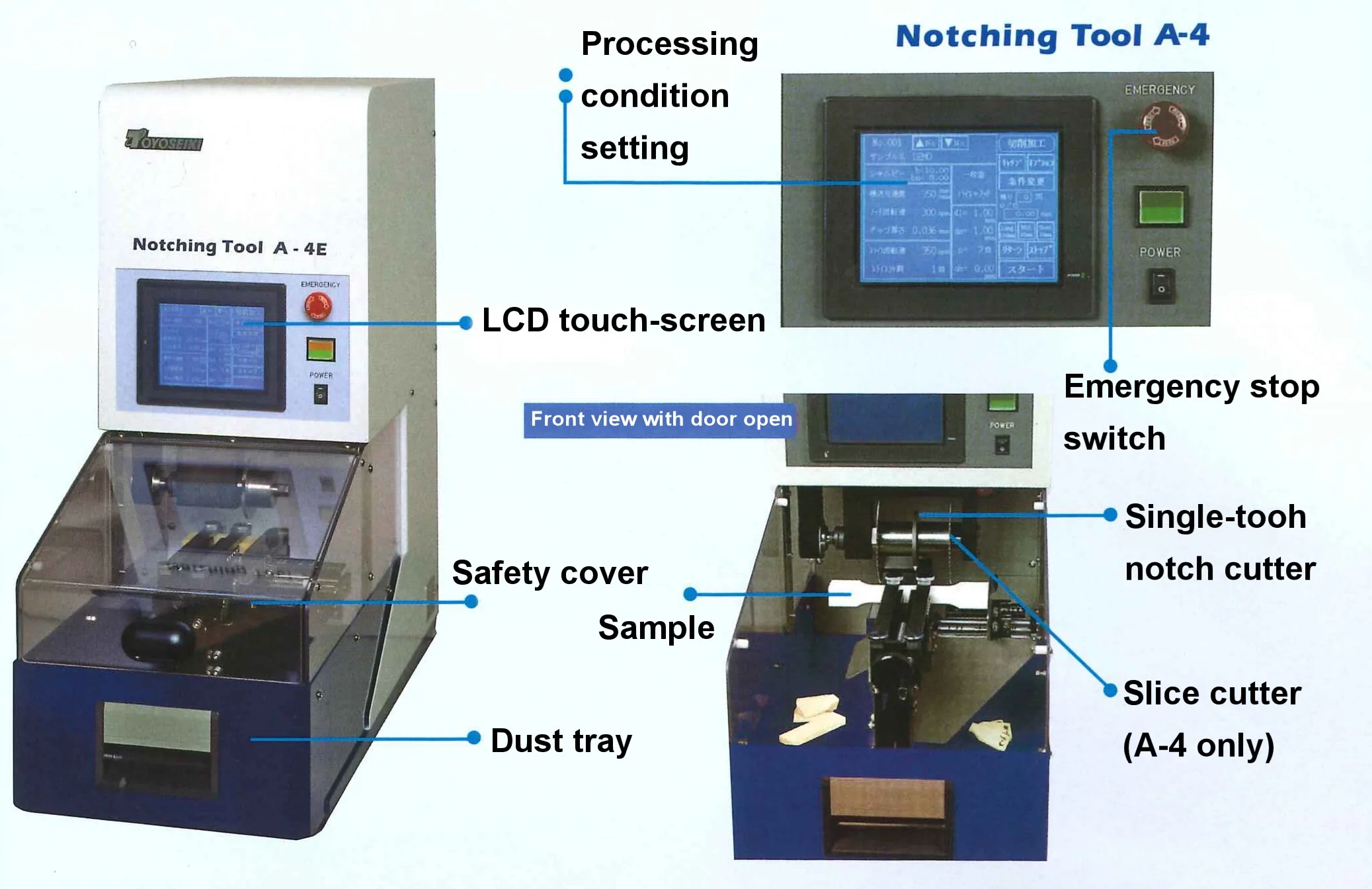

Key features
• A-4 only
• Features & Benefits
• It automatically positions and cuts according to specimen and notch dimensions.
• The instrument employs a precision servo motor control system with a touchscreen control display.
• Safety interfaces protect the operator from accidents.
• The cutter speed and table travel speed can be optimized for the specimen’s material.
• The instrument can store up to 99 (16 for A-4E) user-defined cutting programs.
• Bars can also be automatically cut from the ISO multipurpose specimens (A-4 only).
• Compact design with a width of approximately 30cm allows for effective use of workbench space.
ตารางเปรียบเทียบรุ่น
| Model | A-4 | A-4E |
|---|---|---|
| Processing items | • Notching / • Specimen ends slicing | • Notching |
| Specimen clamp | • Length: 63.5 to 200mm / • Height: 3 to 15mm / • Thickness: Max. clamp clearance 100mm (4mm x 25 specimens) | |
| Table feed rate | 50 – 1200mm/min. | |
| Cutter motor | AC servo motor / (200 to 900rpm) | Synchronous motor / 300rpm (50Hz), 360rpm (60Hz) |
| Notch height (Remaining width) setting range | 3 – 14.99mm, 0.01mm steps | |
| Notch cutter | Single-tooth notch cutter, 45°, R0.25, High speed tool steel (Standard) / See below for options | |
| Slice cutter / (2pcs/set) | High speed tool steel (Standard) / Slice cutting length: 80mm (Standard) / See below for options | — |
| Safeguards | • Temporary stop when safety cover is opened / • Emergency stop switch / • Earth leakage breaker | |
| Electrical | Single-phase, AC100/115/220V, 50/60Hz, 0.8kVA (or specify) | Single-phase, AC100V, 50/60Hz, 0.3kVA (or specify) |
| Dimensions | W300 × D700 × H700 mm | |
| Net weight (approx.) | 65kg |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Name | Notch angle | Notch radius (rN) | P/N | Remarks |
|---|---|---|---|---|
| Single-tooth notch cutter / (High speed tool steel) | 45° | R0.25 / (Notch type A) | 7505269 | Standard accessory |
| Single-tooth notch cutter / (Carbide) | 45° | R0.25 / (Notch type A) | 7505266 | Optional |
| Single-tooth notch cutter / (High speed tool steel) | 45° | R1.0 / (Notch type B) | 7505267 | Optional |
| Single-tooth notch cutter / (High speed tool steel) | 45° | R0.1 / (Notch type C) | 7505265 | Optional |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Name | P/N | Remarks |
|---|---|---|
| *Slice cutter / (High speed tool steel) | 7505272 | Standard accessory / 2pcs/set |
| *Slice cutter / (Carbide) | —– | Optional / 2pcs/set |
| *Slice cutter, staggered surface / (High speed tool steel) | 7505273 | Optional / 2pcs/set |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Name | Model / Part # | |
|---|---|---|
| *Slice collar set for specimen length 63.5mm | SC63.5 | |
| *Slice collar set / consist of: Slice collar for L=39mm × 2 (For V notch process only) and Slice collar for L=4mm × 1 (For L=80mm slice process only) | C39+4 | |
| Anti-floating fitting collar for 12.7mm width samples | ||
| Wrench for cutter axis rotation / consist of: Socket, extension bar and ratchet wrench | TCSR | |
| Centering holder for double notching | WN10 | |
| Reference point detecting jig | SPRDA4 | |
| Cooling device | A4-AC | |
| Notch height gauge, digital type | D | |
| Check-eye gauge | CG-1 |
เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์
| Code | Name | |
|---|---|---|
| 0628_A-4 | Notching Tool (Notching + Specimen ends slicing) | |
| 0628_A-4E | Notching Tool (Notching only) | |
| 0628_Calibration certificate | Traceable calibration certificate | Option |
| 7505269 | Single-tooth V notch cutter (45°, R0.25, High speed tool steel) | Standard specification |
| 7505266 | Single-tooth V notch cutter (45°, R0.25, Carbide) | Option |
| 7505265 | Single-tooth V notch cutter (45°, R0.1, High speed tool steel) | Option |
| 7505267 | Single-tooth V notch cutter (45°, R1.0, High speed tool steel) | Option |
| 7505268 | Multi-teeth V notch cutter (45°, R0.1, High speed tool steel) | Option |
| 7505272 | Slice cutter (High speed tool steel) | Standard specification |
| 7505273 | Slice cutter (High speed tool steel, Staggered) | Option |
| 0628-V324-B01 | Slice cutter (Carbide) | Option |
| 0628_STRY | Dust tray | Standard specification |
| 0628_RTRY | Dust tray (Enhanced type) | Option |
| 0628-SC63.5 | Slice collar for 63.5mm | Option |
| 0628_C39+4 | Collar for notching only or slicing only | Option |
| 0628-V324-C07 | Width 12.7mm specimen anti-lift fitting collar | Option |
| 0628_WN10 | Centering holder for double notching process | Option |
| 0628_SPRDA4 | Zeroing jig | Option |
| 0628_A4-AC | Cooling device | Option |
| 0628_TCSR | Wrench for cutter axis rotation | Option |
| 0628_CG-1 | Check-eye gauge | Option |
| 0139_D | Notch height gauge | Option |
