Measuring Mixers for Labo Plastomill | 655

รุ่นNo. 655

Toyo Seiki · Mixing & Kneading / Extrudability / Stretching

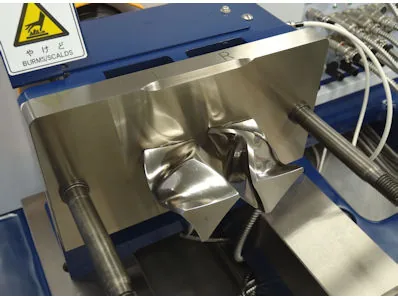

Mixer heating block, that is the sample kneading part of Labo Plastomill, contains 2 kneading blades rotating in same direction or two kneading blades rotating in different directions and resin temperature sensors. Mixing and kneading of sample filled in the mixer proceeds as it receives heat and shear from the blade and its state of melting, dispersion, distribution, steadiness, deterioration, curing reaction, cross-linking, heat generation, etc.

ขอใบเสนอราคา

ข้อมูลจำเพาะ

Model	P600F
Chamber capacity (approx.)	600cm3
Main application	Evaluation tests of plasticizer absorption of PVC powder / Dry blending of various types of powders
Heating system	Electric
Max. temperature	150°C
Max. torque	30Nm

ตารางเปรียบเทียบรุ่น

Roller type blades mixers


Model	R60	R100	R200	R500
Chamber capacity (approx.)	60cm3	100cm3	200cm3	500cm3
Blade revolution ratio	2:3
Max. temperature	250°C (Option: 400°C)
Max. torque	200Nm	300Nm	750Nm	1000Nm

เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์

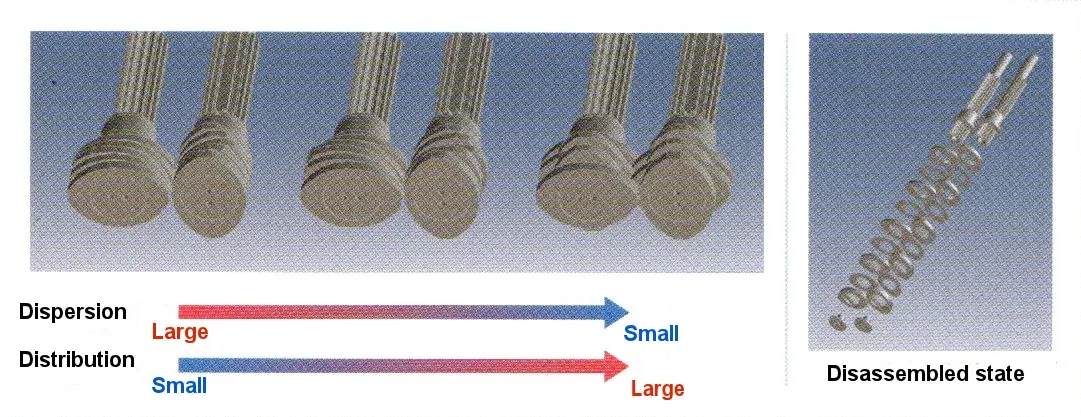

– Disk phase of blade is possible to change.


Model	KF6 / KF6V	KF15V	KF70V2
Chamber capacity (approx.)	6cm3	15cm3	70cm3
Blade revolution ratio	1:1
Max. temperature	350°C
Max. torque	40Nm	100Nm	300Nm

เลื่อนตารางไปทางข้างเพื่อดูทุกคอลัมน์

Mixers for elastomers (BB type mixers)


Model	B75	B250 / B250H	B600 / B600H
Chamber capacity (approx.)	75cm3	250cm3	600cm3
Blade revolution ratio	7:8	8:9	7:8
Heating system	Electric
Max. temperature	250°C	250°C (B250H: 400°C)	250°C (B600H: 400°C)
Max. torque	300Nm	750Nm	1000Nm
