- ASTM G154
- ASTM D4329
- ASTM C1257
- ISO 4892
- ASTM C1442
- ASTM C1519
- ASTM C793
- ASTM D1148
- ASTM D3424
- ASTM D3451
- ASTM D4101
- ASTM D4811

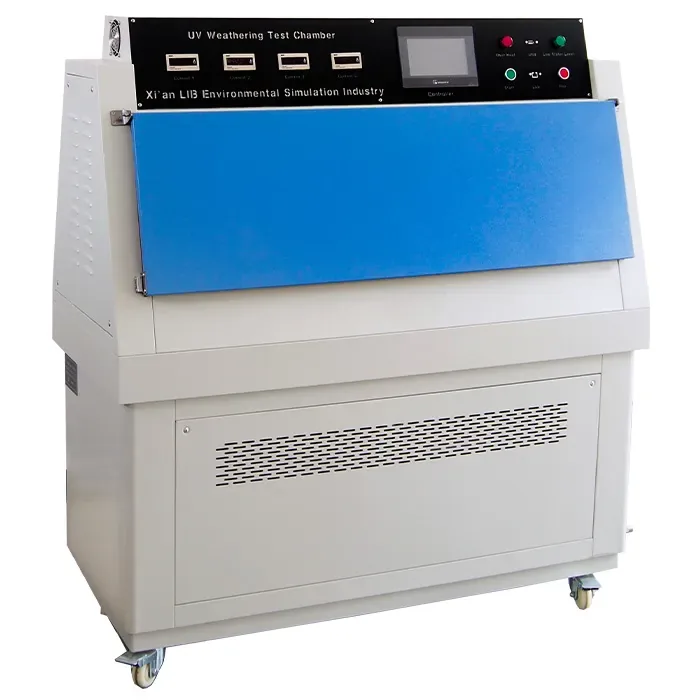

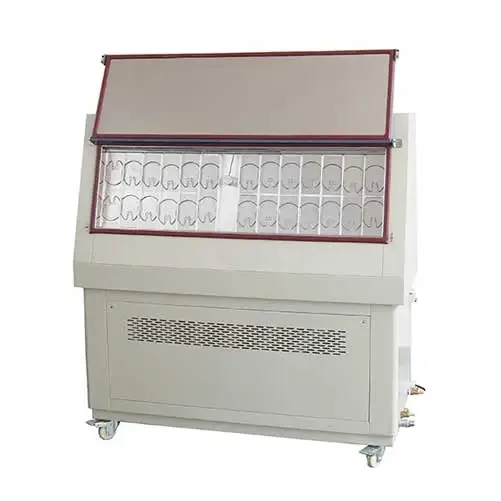

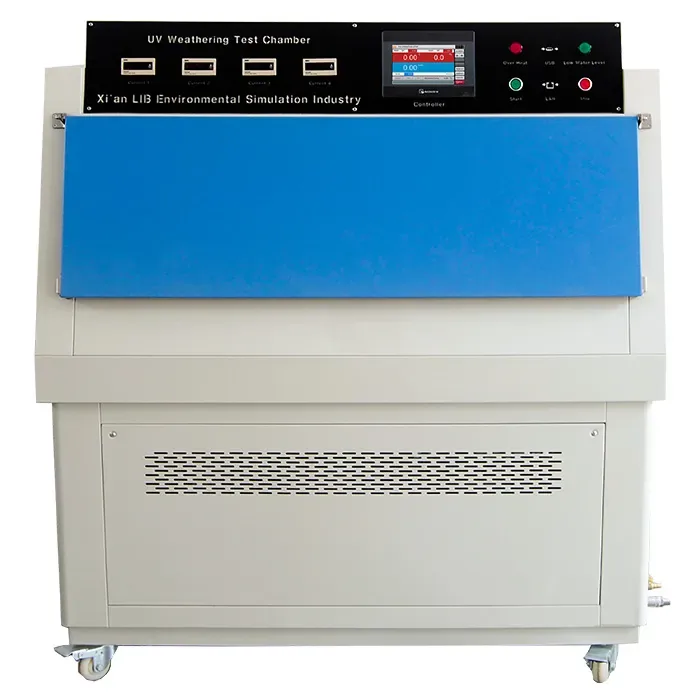

UV Test Chamber
LIB · Weathering, UV & Ozone

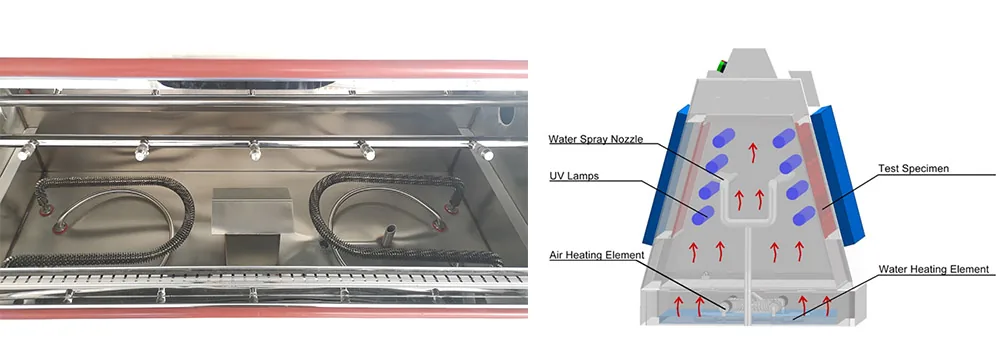

LIB UV test chamber is to simulate the effects of ultraviolet (UV) light in sunlight, which can reproduce the effects of outdoor light aging for a long time in a relatively short time. Used to detect whether plastic products, coatings, rubber, textiles, etc. will fade, become brittle, aging and other conditions under long-term ultraviolet irradiation.
เอกสารดาวน์โหลด
ข้อมูลจำเพาะ
| Internal Dimension (mm) | 450*1170*500 |
|---|---|
| Overall Dimension (mm) | 610*1330*1470 |
| Specimen Holder Size(mm) | 75*150 |
| Specimen Capacity | 56 Pieces |

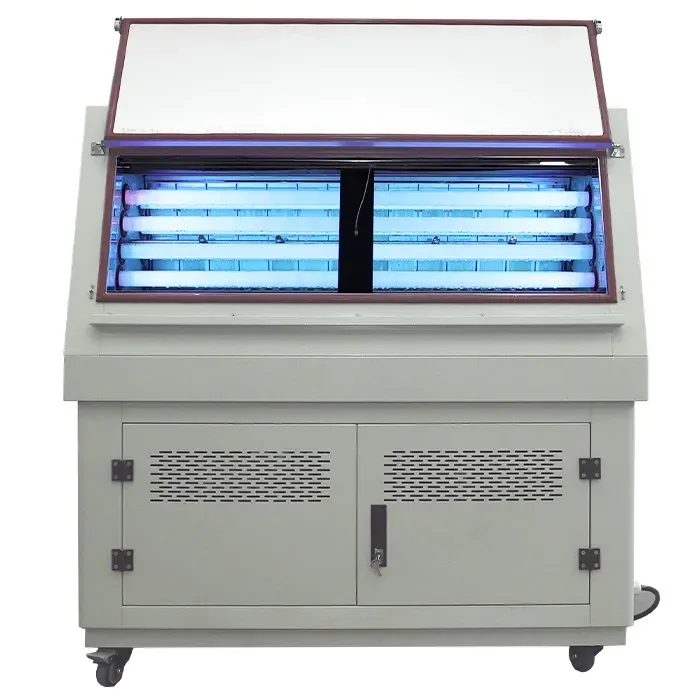

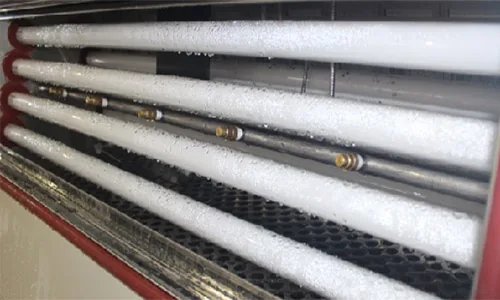

| Irradiation Source | Fluorescent UV lamps (8) - 40 W |
| Temperature Range | Ambient ～ 90 ℃ ±2℃ |
| Black Panel Temperature (BPT) | 35 ～ 80 ℃ |
| Humidity Range | ≥95% RH |
| Bandwidth | 290 ~ 400nm |
| Irradiance Control | 0.3~20 W/㎡ |
| Water Spray Cycle | 1~9999H59M (Adjustable) |
| Distance of Specimen and lamp | 50mm |

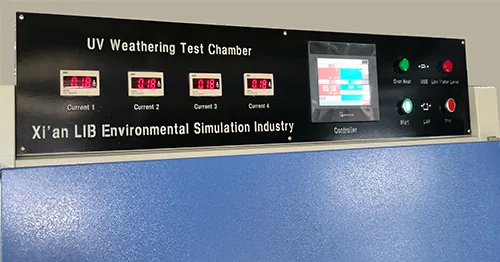

| Controller | Programmable color LCD touch screen controller, Ethernet connection |
| Water Supply System | Automatic water supply, Water purification system |
| Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
| Exterior Material | Steel Plate with protective coating |
| Interior Material | SUS304 stainless steel |
