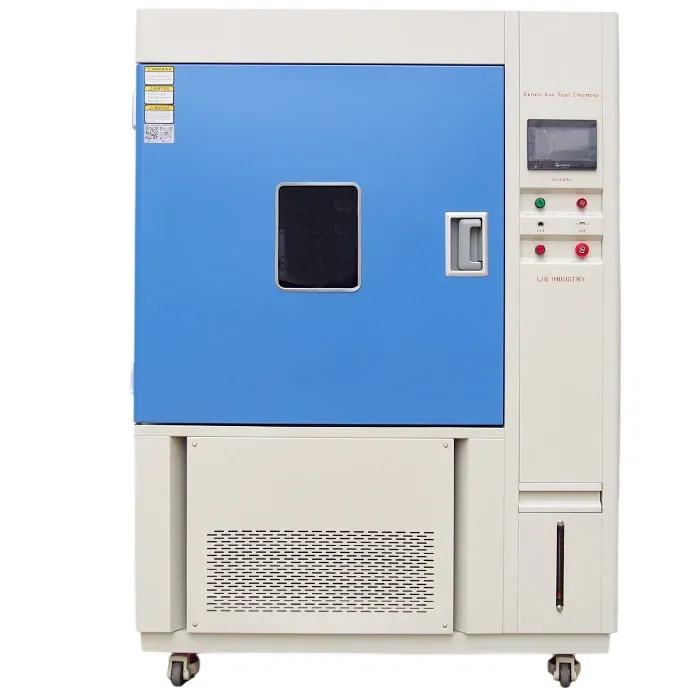

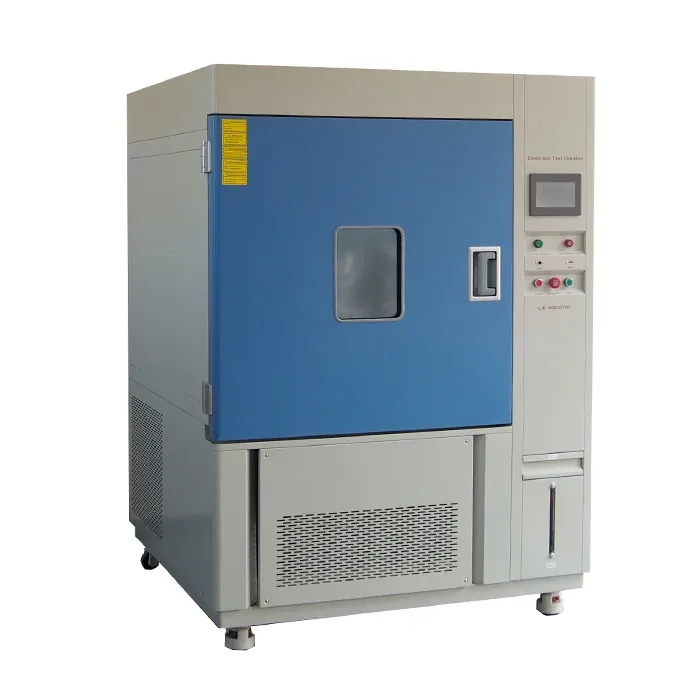

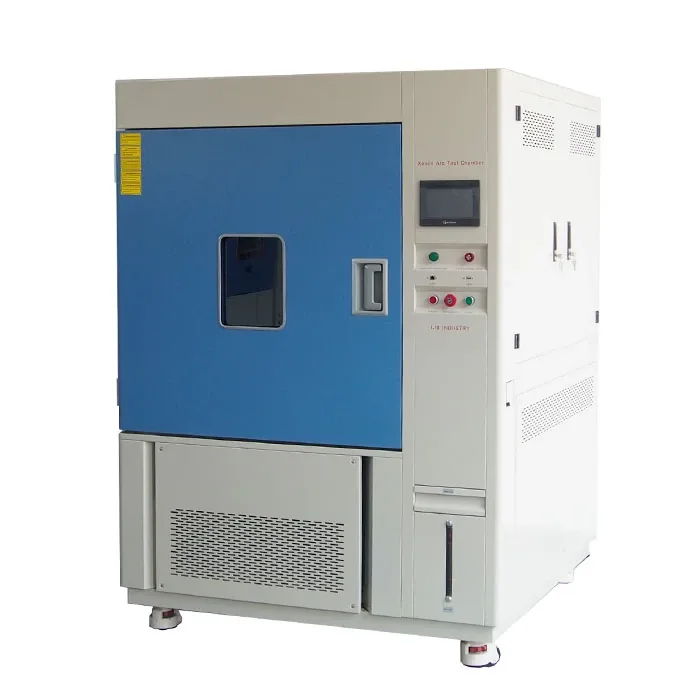

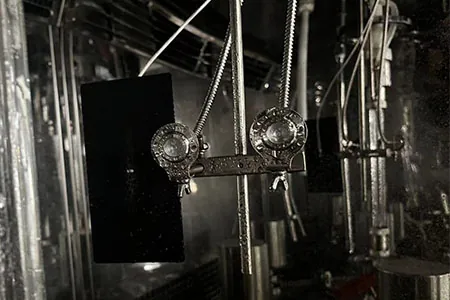

Xenon Arc Chamber
LIB · Weathering, UV & Ozone
The LIB Xenon Arc Chamber harnesses high-intensity xenon arc lamps to reproduce the full spectrum of natural sunlight, including UV, visible, and infrared light . By precisely controlling temperature from ambient up to 100 °C , humidity from 50 % to 98 % RH , and adjustable water spray cycles , materials undergo accelerated environmental aging—achieving years of real-world exposure in a fraction of the time. This allows engineers and researchers to evaluate fading, cracking, powdering, or strength degradation quickly and reliably.
เอกสารดาวน์โหลด
ข้อมูลจำเพาะ
| Internal Dimension (mm) | 950*950*850 mm |
|---|---|
| Overall Dimension (mm) | 1400*1400*1950 mm |
| Specimen Holder Size(mm) | 95*200 |
| Specimen Capacity | 42pcs |

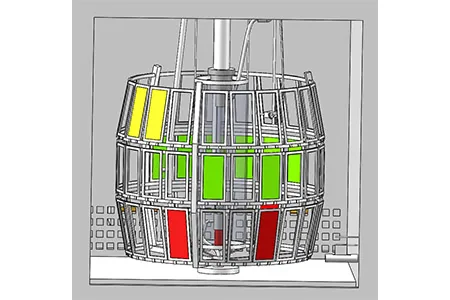

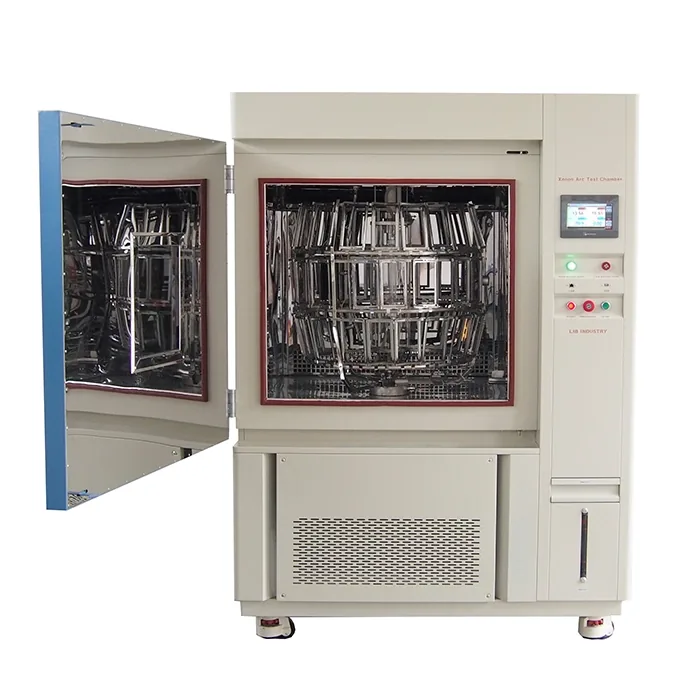

| Chamber Type | Rotating Holder |
| Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
| Irradiance Range | 35~150 W/㎡ |
| Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
| Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
| Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
| Humidity Range | 50% ~ 98% RH |
| Humidity Deviation | ± 5% RH |
| Water Spray Cycle | 1~9999H59M (Adjustable) |
| Controller | Programmable color LCD touch screen controller |
| Water supply system | Automatic water supply, Water purification system |
| Radiometer | UV Radiometer, Tolerance: ±5% |
| Cooling System | Mechanical compression refrigeration system |
