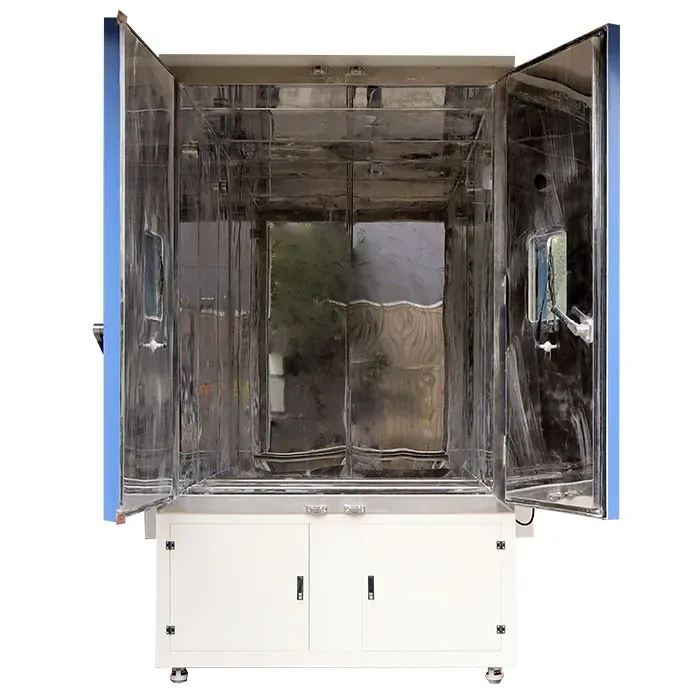

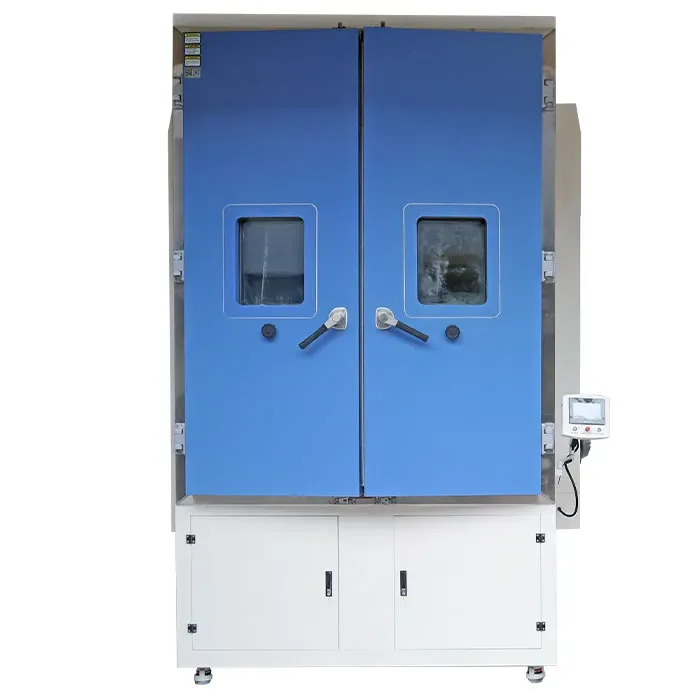

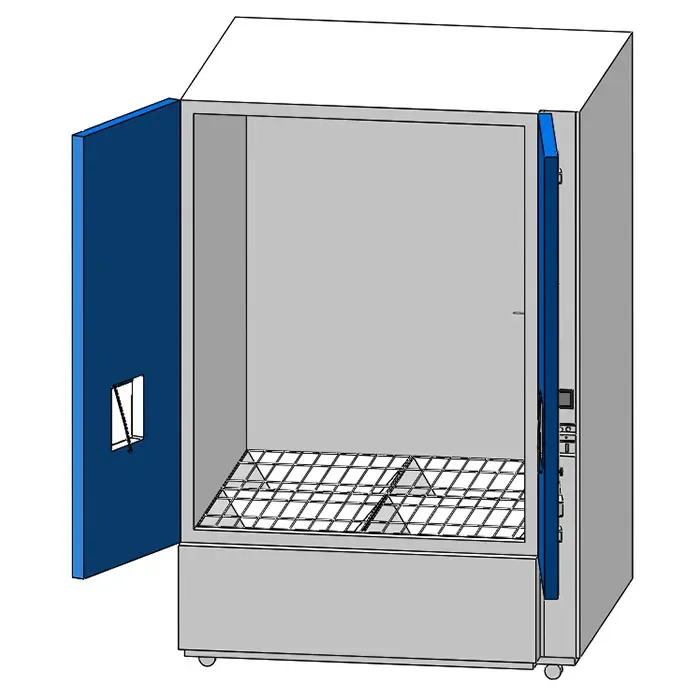

Drive-In IP5X IP6X Dust Test Chamber
LIB · Dust & Sand Ingress Testing (IP5X/IP6X)
Ground-Level Access | Heavy-Duty Design for IP5X / IP6X Large Equipment Reliability Testing Are you struggling with steep, hazardous ramps when loading heavy automotive components? Or facing tight laboratory ceiling constraints that make standard large-scale walk-in chambers impossible to install? LIB industry Pit-Mounted Drive-In Dust Test Chamber solves both challenges simultaneously.
Datasheets
Specification
| Testing Standards | IEC 60529, ISO 20653, |
|---|---|
| Internal Dimensions | Fully customizable (e.g., 3m x 2m x 2m for whole vehicles or large energy storage racks) |
| Pit Depth Requirement | Custom-engineered based on layout |
| Temperature Range | Ambient ~ +50℃ |
| Humidity Range | < 30% RH |
| Normal Wire Diameter | 50um |
| Nominal Width of a Gap Between wires | 75um |
| Fight Time/ Blowing Time | 0 ~ 99H59M |
| Interior Material | SUS304 stainless steel |
| Dust Concentration | 2 kg/m³ to 4 kg/m³ (Optional smart auto-weighing & replenishment system) |
| Airflow Velocity | ≤ 2 m/s |
| Vacuum Pressure System | Independent heavy-duty vacuum pump, digital flow-rate controller, precision pressure transducer |
| Controller Interface | Full-Color Programmable PLC Touchscreen with Ethernet/Wi-Fi connectivity |
