IPX1 X2 Drip Tray
LIB · Chamber Accessories & Consumables

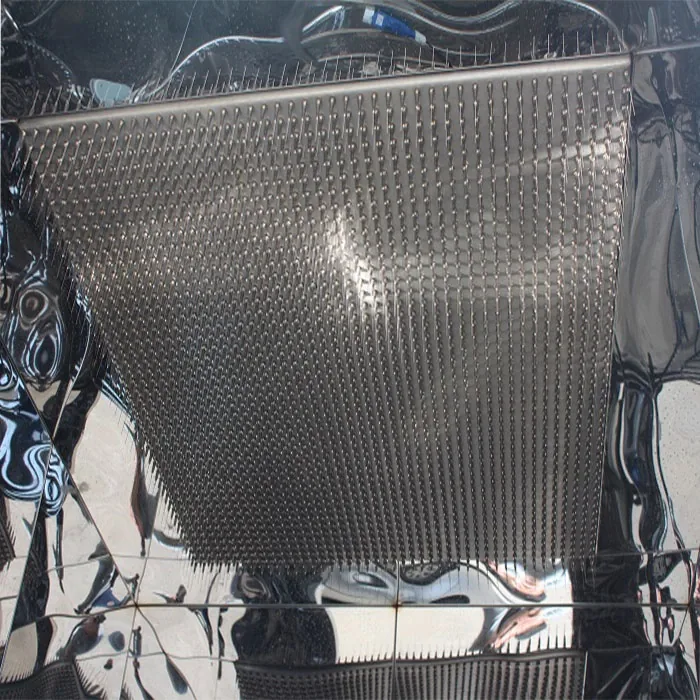

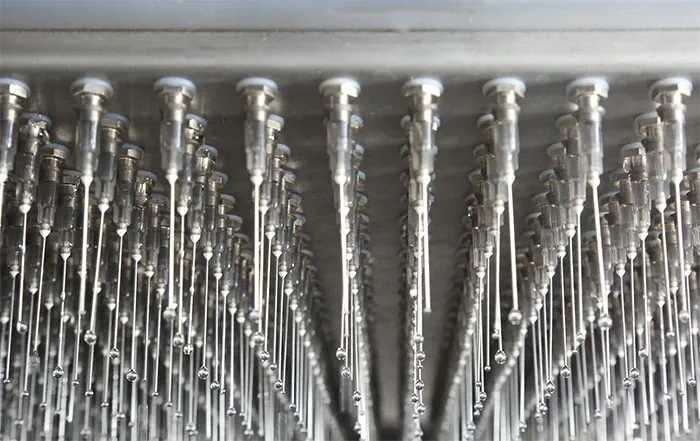

IPX1 X2 drip tray simulates drip in the natural environment, to test the waterproof ability of the product under different drip conditions, and to determine whether it meets the waterproof grade standards of IPX1 and IPX2. It is suitable for IPX1 IPX2 Water Drip Test Apparatus . Drip holes are evenly distributed on the drip tray.
Specification
| Size(mm) | 400*400,800*800,1000*1000,1200*1200,1400*1400,1600*1600 |
|---|---|
| Altitude range | 200-2000mm(Adjustable) |
| Drip water amount | IPX1 flow rate is 1±0.5mm/min IPX2 flow rate is 3±0.5mm/min |
| Spraying Hole Diameter | φ0.4mm |
| Material | SUS 304 |

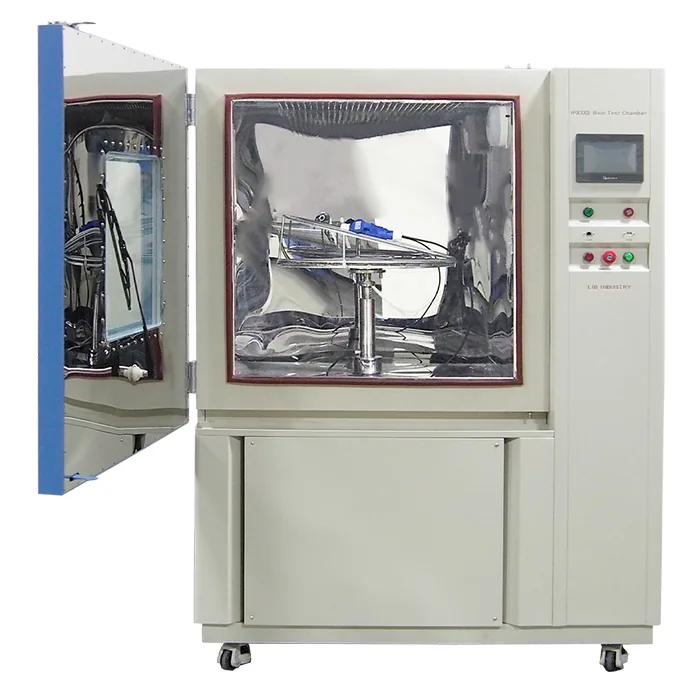

| Applicable equipment | IPX1 X2 test device |
