IPX3/IPX4 Handheld Water Spray Nozzle

Accessory

LIB · Chamber Accessories & Consumables

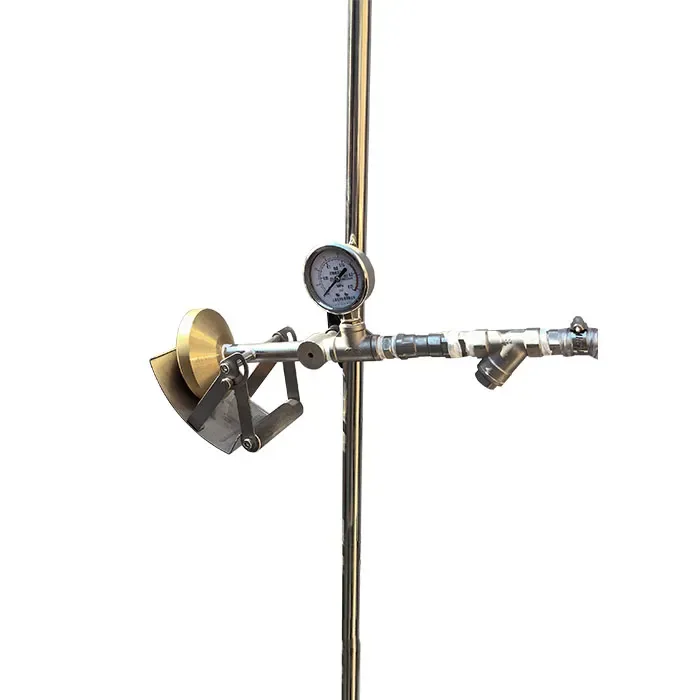

IPX3 IPX4 Handheld Water Spray Nozzle, IEC 60529 Waterproof Ingress Protection Test Equipment with Movable Shield & Pressure Gauge The IPX3/IPX4 Handheld Water Spray Nozzle is designed for IEC 60529 waterproof testing requiring controlled spraying and splash simulation. It is widely used to evaluate water resistance of electronic products, automotive components, outdoor electrical equipment, household appliances, lighting products, and industrial enclosures. Its handheld design enables flexible operation for laboratory testing, R&D validation, prototype evaluation, and on-site inspections.

Features

• Strict Standard Compliance:
• 100% compliant with IEC 60529, GB 4208, and EN 60529 standards. Ideal for third-party laboratory certifications.
• Dual-Purpose with Movable Shield:
• Premium Material & Precision Machining:

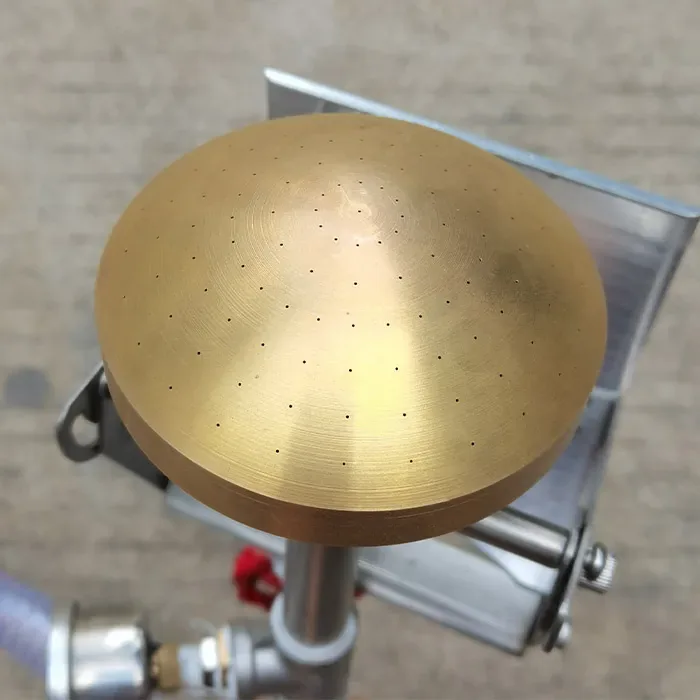

• The nozzle head is crafted from high-grade brass with 121 precision-drilled holes (Φ0.5 mm) to ensure uniform water distribution. The handle and connection parts are made of durable stainless steel.
• All-in-One Control:

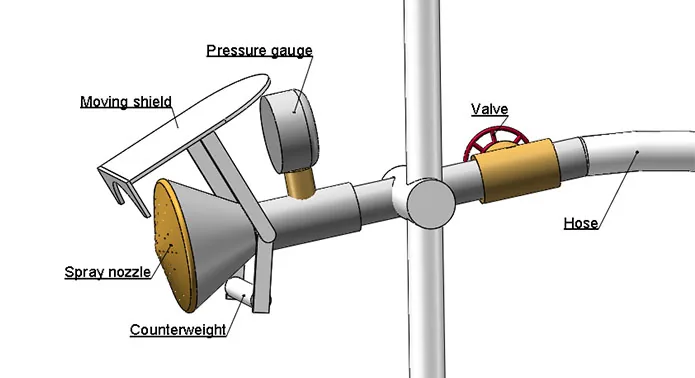

• Comes integrated with a high-accuracy pressure gauge (0-250 kPa) and a brass water flow control valve for real-time monitoring and safe operation.
• Durable SUS304 Construction:
• The nozzle structure is manufactured using corrosion-resistant materials for long-term operation under continuous water exposure conditions.
• Technical Specifications of IPX3/IPX4 Handheld Water Spray Nozzle
• How IPX3/IPX4 Handheld Water Spray Nozzle Works

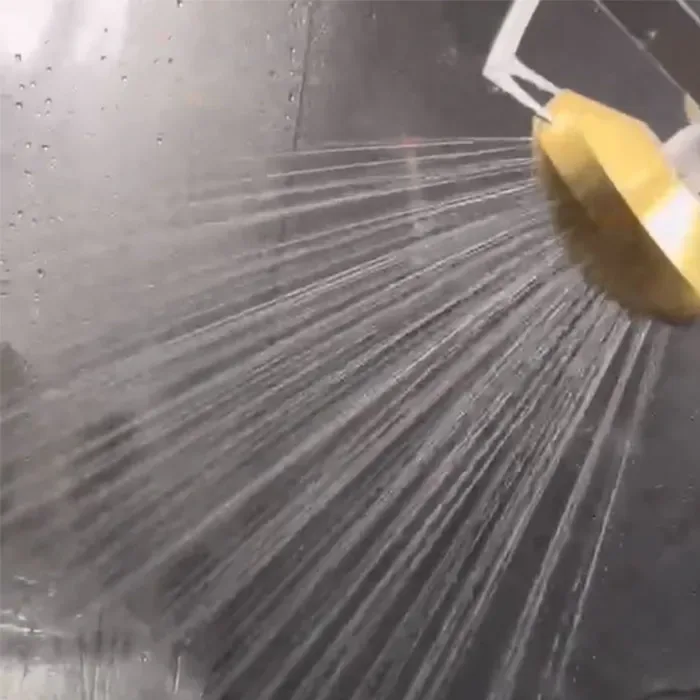

• • IPX3 Testing (Spraying Water): Retain the shield on the nozzle. Water sprays within an angle of ±60° from the vertical line.
• • IPX4 Testing (Splashing Water): Remove the shield. Water splashes the device from every direction (360°).
• Note: To ensure precise testing, users need to connect this nozzle to a stable water supply system that can provide a steady 10 L/min flow rate.

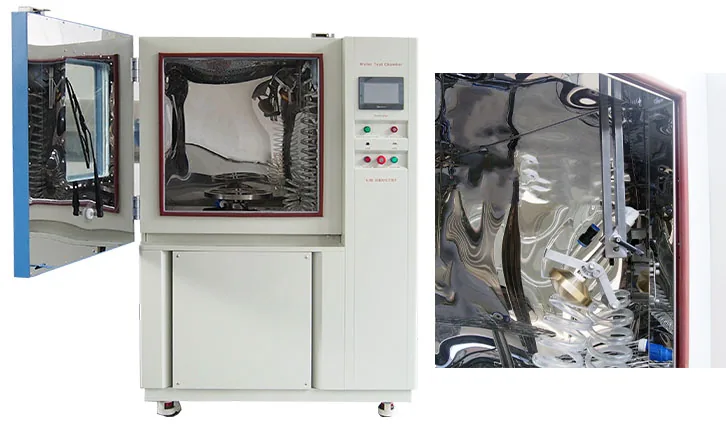

• Upgrade Solution: Vertical IPX3/X4 Test Chamber
• Need a Fully Automated & Enclosed Solution?
• While the handheld nozzle is flexible and cost-effective, it requires manual spraying and cannot easily contain wastewater. If you are conducting high-volume batch testing or need unattended, highly repeatable results, our Vertical IPX3/X4 Rain Test Chamber is your best choice.
• • Automated Oscillating Tube driven by servo motor
• • Water Recycling System with built-in filtration
• • Smart Touch Screen PLC Controller
• • 360° Rotating Turntable for even water distribution
• Contact LIB Industry Today
• LIB industry specializes in environmental reliability testing equipment and waterproof testing solutions for global laboratories and manufacturers.
• We provide:
• Customized IP test solutions
• Professional technical support
• Installation and operation guidance
• 3-year warranty
• Lifetime service support
• Contact us today to receive technical specifications, pricing, and customized waterproof testing solutions.
