IPX5 IPX6 and IPX9 Ratings Liquid Penetration Testing Equipment
LIB · Water Ingress & Rain Testing (IPX)

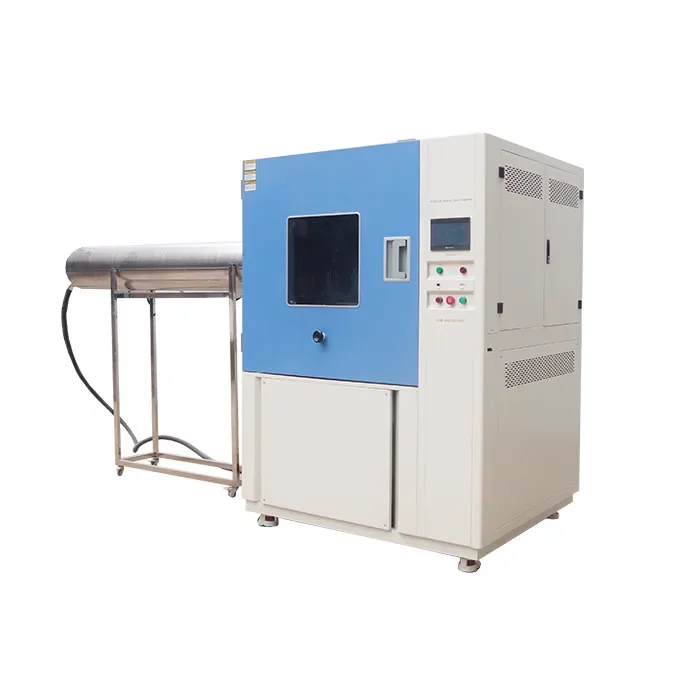

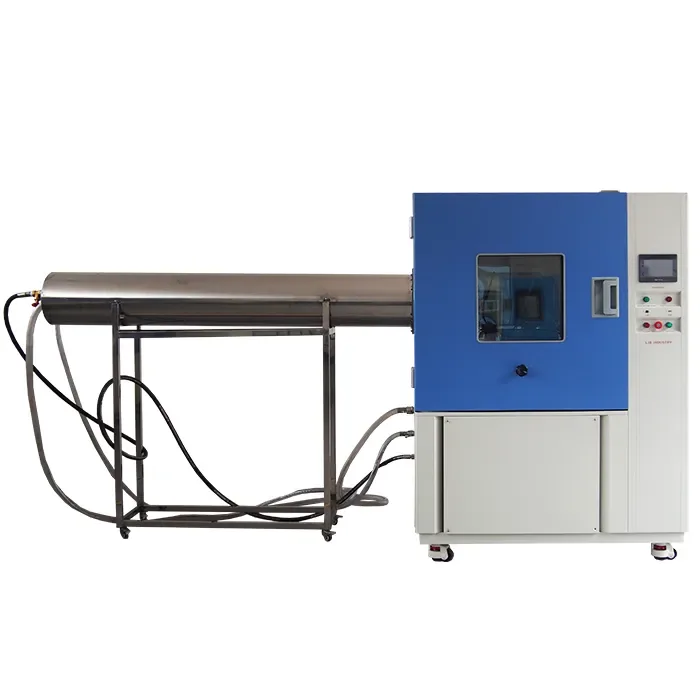

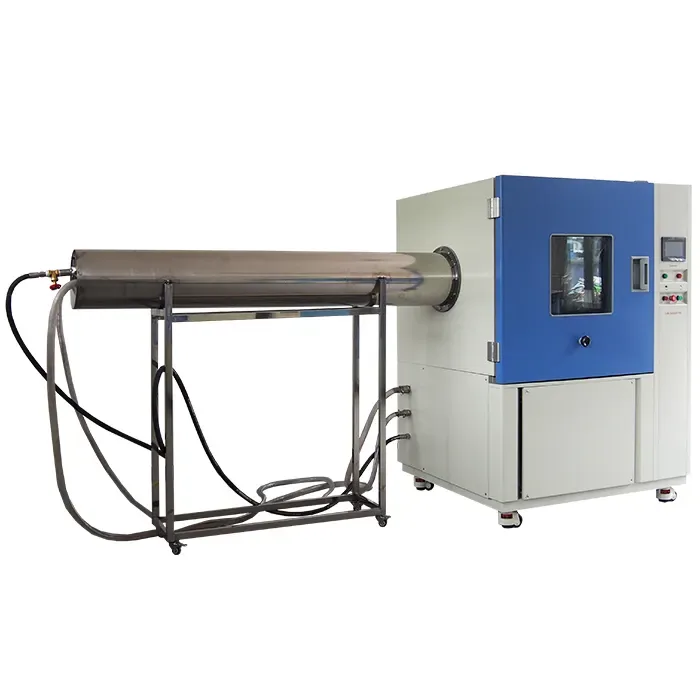

One-Stop Liquid Ingress Testing Solution| Compliant with IEC 60529 & ISO 20653 This IPX5 IPX6 and IPX9 ratings liquid penetration testing equipment is specifically designed for high-end manufacturing industries, integrating IPX5 (water jet) , IPX6 (powerful water jet) , and IPX9K (high-pressure, high-temperature spray) testing into one complete system. It provides precise and repeatable waterproof performance validation for products exposed to complex and harsh environments within a single platform. Widely used in automotive, new energy, electronics, outdoor equipment, and aerospace industries
Datasheets
Specification
| Workroom / Internal Dimensions (mm) | 1000 × 1200 × 1000 (adjustable, based on requirement) |
|---|---|
| External / Overall Dimensions (mm) | 1250 × 3150 × 2050 (approx.) |
| Interior Volume (L) | 1200 (approx.) |

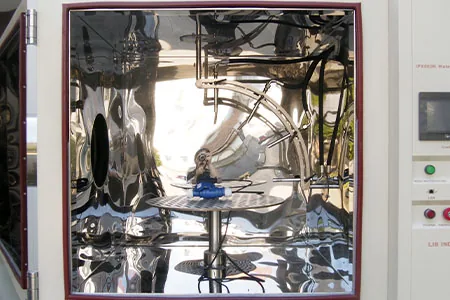

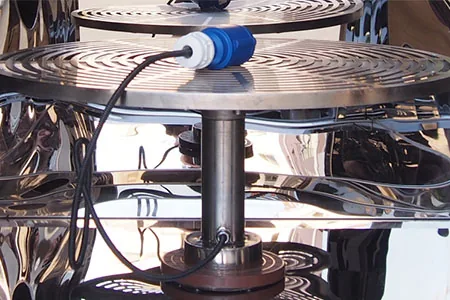

| Turntable / Testing Platform Diameter (mm) | 600 |
| Turntable / Platform Rotation Speed | 0–7 r/min (adjustable) |
| Turntable / Platform Height | 200–400 mm (adjustable) |
| IPX5 Nozzle Internal Diameter | 6.3 mm |
| IPX6 Nozzle Internal Diameter | 12.5 mm |
| Water Flow Rate | IPX5: 12.5 L/min ±5% IPX6: 100 L/min ±5% IPX9K: 14–16 L/min |
| Water Spray Angle | 0°, 30°, 60°, 90° |
| Water Spray Temperature | Ambient to +88–100°C (adjustable) |

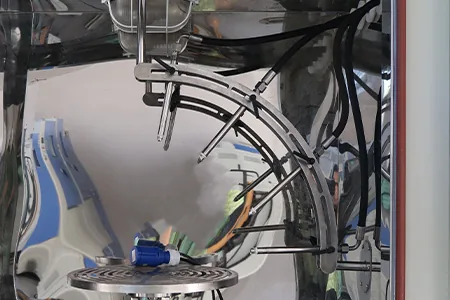

| Spray Nozzle / Cycle | Multiple nozzles; high-pressure jet rotates through positions (approx. 30s per position) |
| Distance from Water Spray to Specimens | 10–15 cm |
| Water Pressure | IPX9K: 8000–10000 KPa (adjustable) |
| Controller | Programmable color LCD touchscreen, Ethernet connection |
| Door Lock | Electromagnetic lock |
| Water Supply System | Storage water tank, booster pump, automatic water supply, water purification system |
| Safety Devices | Over-temperature protection; Over-current protection; Water shortage protection; Earth leakage protection; Phase sequence protection |
| Interior Material | SUS304 stainless steel |
