Rain Erosion Tester
LIB · Water Ingress & Rain Testing (IPX)

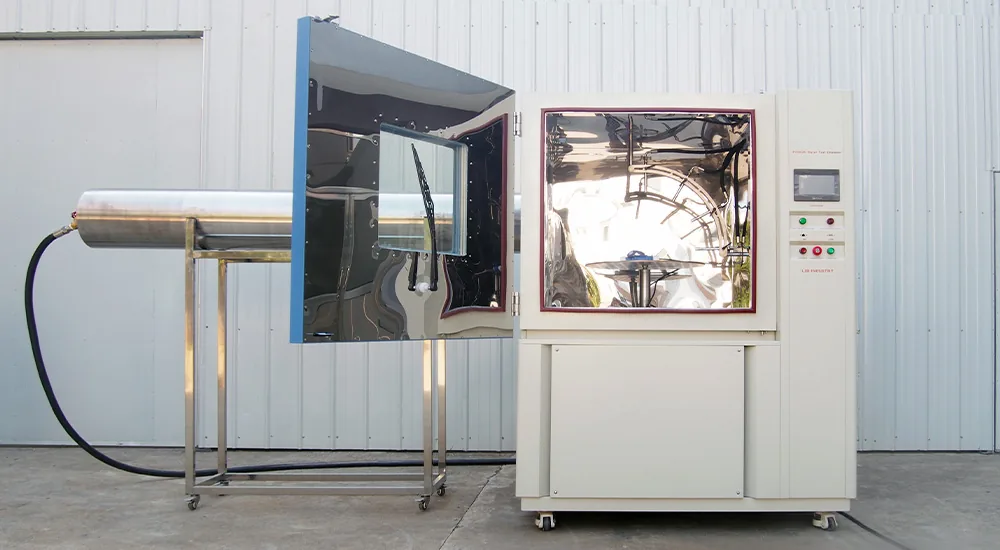

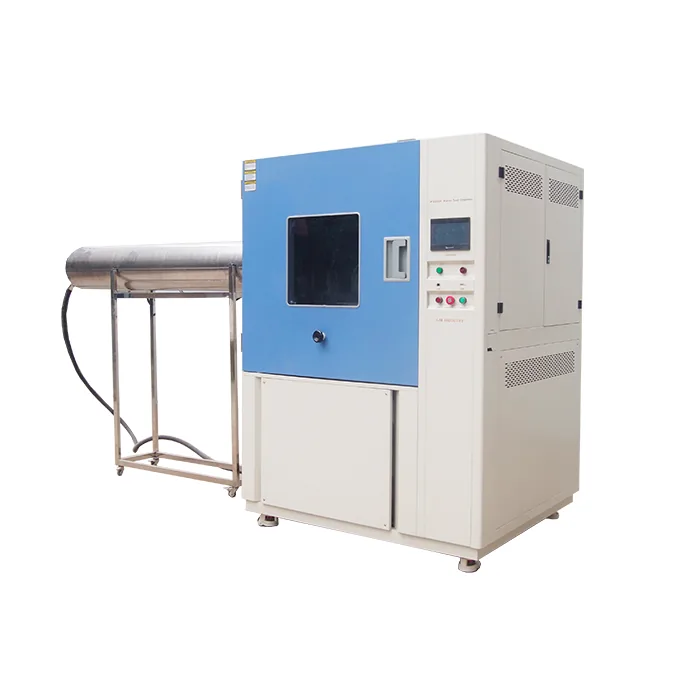

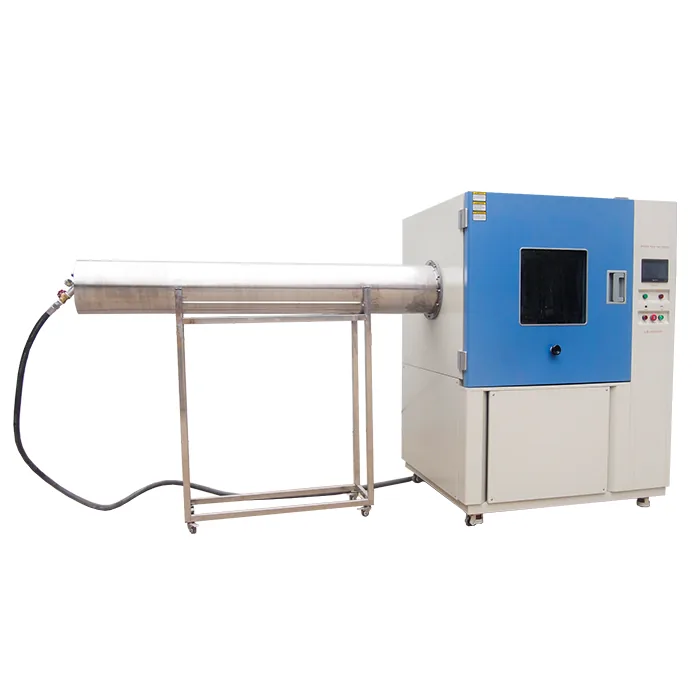

The rain erosion tester is a high-strength raindrop impact testing equipment that meets the IPX6K and IPX9K waterproofing grade requirements. It features a high-pressure spray system, spraying raindrops. Combined with sample rotation, it realistically simulates the corrosion resistance of materials under intense rainwater impact.
Datasheets
Features
- Double-level protection certification
- Meets both the IPX6K (strong water spray with large flow) and IPX9K (high-pressure and high-temperature water spray) two major waterproof standards, ensuring that the test intensity covers the requirements of various applications.
- High-pressure high-flow spray system
- The maximum water spraying pressure of this equipment can reach 1.5 MPa, and the spray flow rate meets the IPX6K standard of 75 L/min. It has a strong impact capacity and can realistically simulate harsh rain conditions.
- Corrosion-resistant high-strength structural design
- Manufactured with SUS304 stainless steel, it features excellent corrosion resistance and durability, capable of withstanding long-term high humidity and high pressure testing environments.
- Widely applicable in various industries
- It is suitable for aerospace, wind energy, automotive, composite materials and other fields, and is a professional solution for verifying the material's resistance to rain erosion.
Specification
| Details of Rain Erosion Tester | Please leave your testing requirements. LIB will respond to you within 24 hours. For more information and quotations, please contact us. |
|---|---|
| Send Inquiry | LIB Team will send you specs and quote today. |
| SUBMIT | Key features |
| • Double-level protection certification | • High-pressure high-flow spray system |
| • Corrosion-resistant high-strength structural design | • Widely applicable in various industries |
Model comparison
| Model | RC-012 | |
|---|---|---|
| Interior Volume (L) | 1200 | |

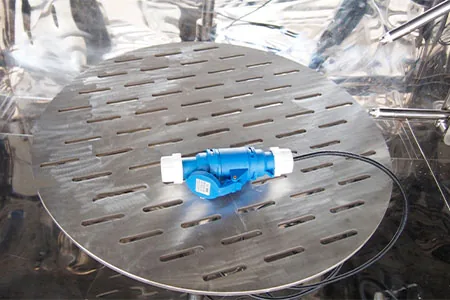

| Testing Platform Diameters | 600mm | |
| Testing Platform Speed | 5±1 r.p.m | |
| Turntable loads | 50kgs | |
| Testing Platform Height | 230-350mm | |
| IPX6K | Internal Diameter of Nozzle | 6.3mm |
| Water Flow Rate | 75L/min ±5% | |
| Water Pressure | approx.1 000 kPa | |
| Distance from Water Spraying to Specimens | between 2.5 m and 3 m. | |

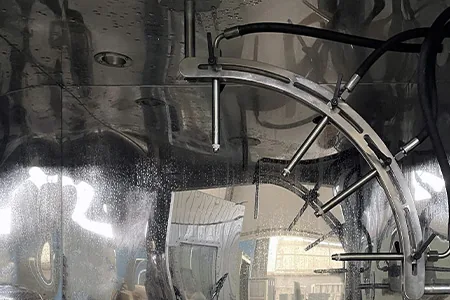

| IPX9K | Water Spray Angle | 0°, 30°, 60°, 90° |
| Water Spray Temperature | Ambient ~ +88℃ (Adjustable) | |
| Spray Nozzle | Four, 30 Seconds each position | |
| Distance from Water Spraying to Specimens | 10~15cm | |
| Water Pressure | 8000-10000 Kpa (Adjustable) | |
| Water Flow Rate | 14L-16L/min | |
| Controller | Programmable color LCD touch screen controller，Ethernet connection, PC Link | |
| Door Lock | Electromagnetic lock | |

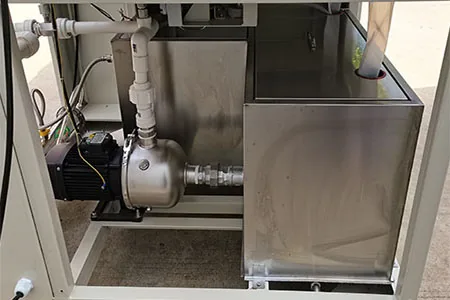

| Water supply system | Storage water tank; Booster pump; Automatic water supply; Water purification system; | |
| Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
| Exterior Material | Steel Plate with protective coating | |
| Interior Material | SUS304 stainless steel |
