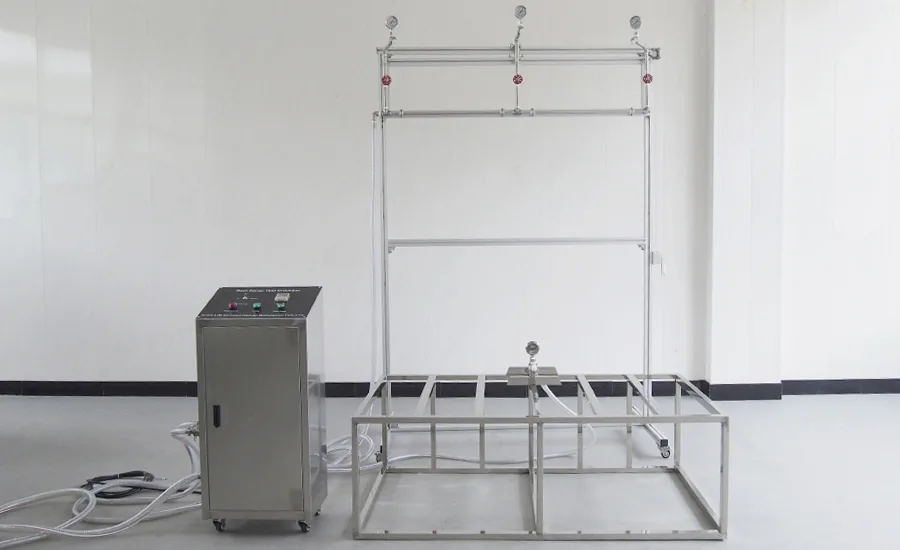

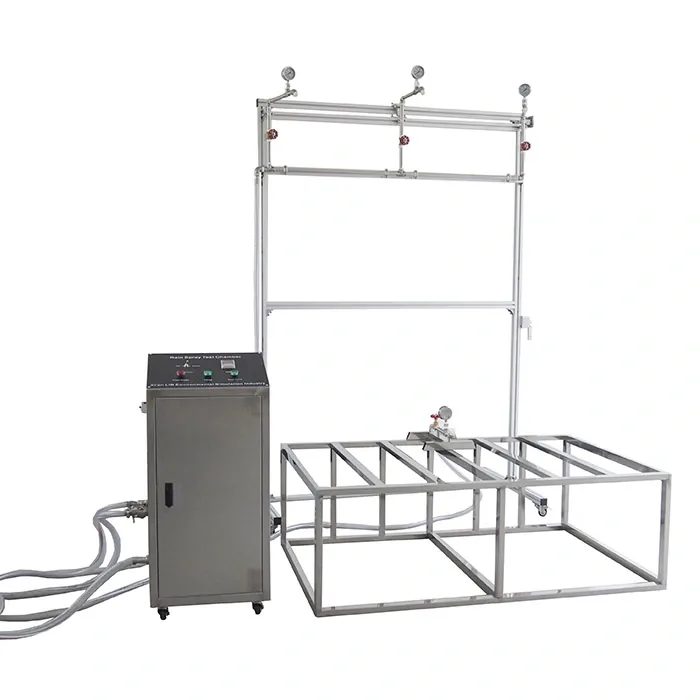

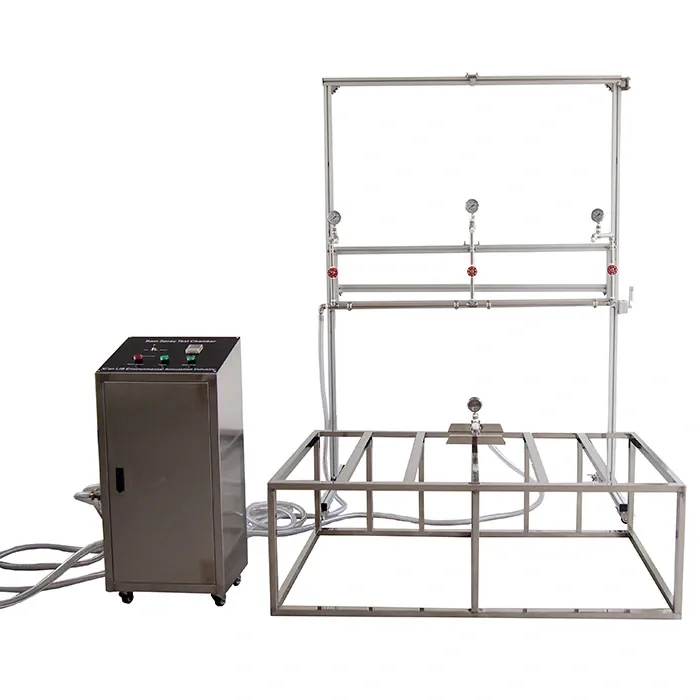

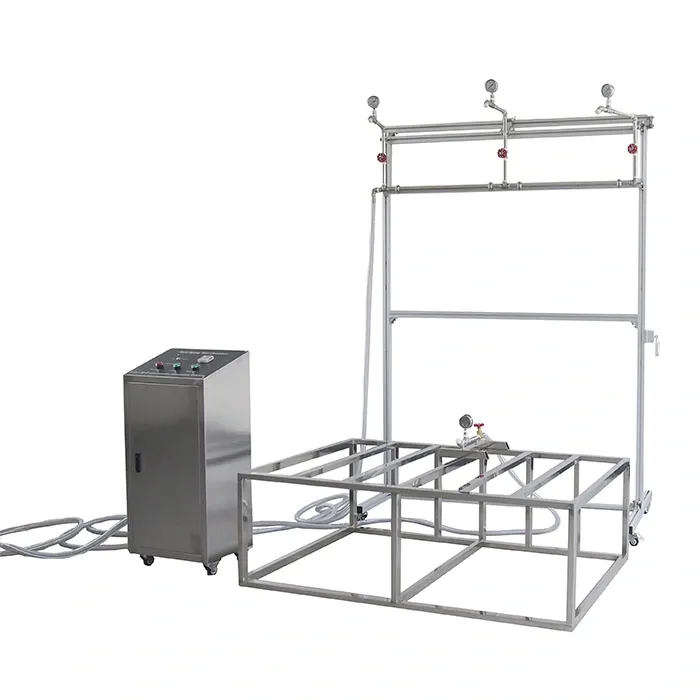

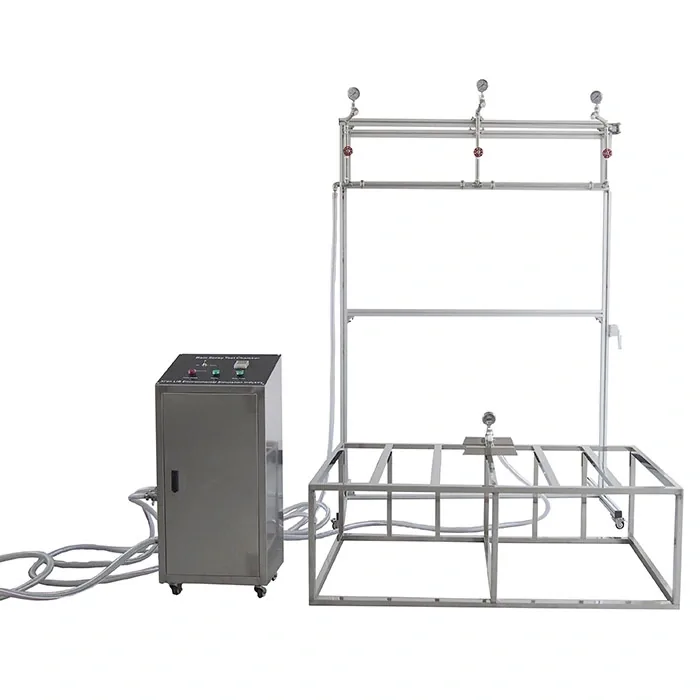

UL 50E Shower
LIB · Water Ingress & Rain Testing (IPX)
The UL 50E Rain Shower is engineered and manufactured in strict accordance with the UL 50E standard, specifically designed to evaluate the ingress protection performance of electrical equipment enclosures. By reproducing controlled rainfall environments such as light rain, moderate rain, and heavy rain, the system ensures that electrical cabinets, control panels, and outdoor enclosures meet the required protection levels for UL and NEMA certification, including Type 3R and NEMA 4 performance requirements . Manufactured by LIB industry , the UL 50E shower system provides stable water pressure,
Datasheets
Specification

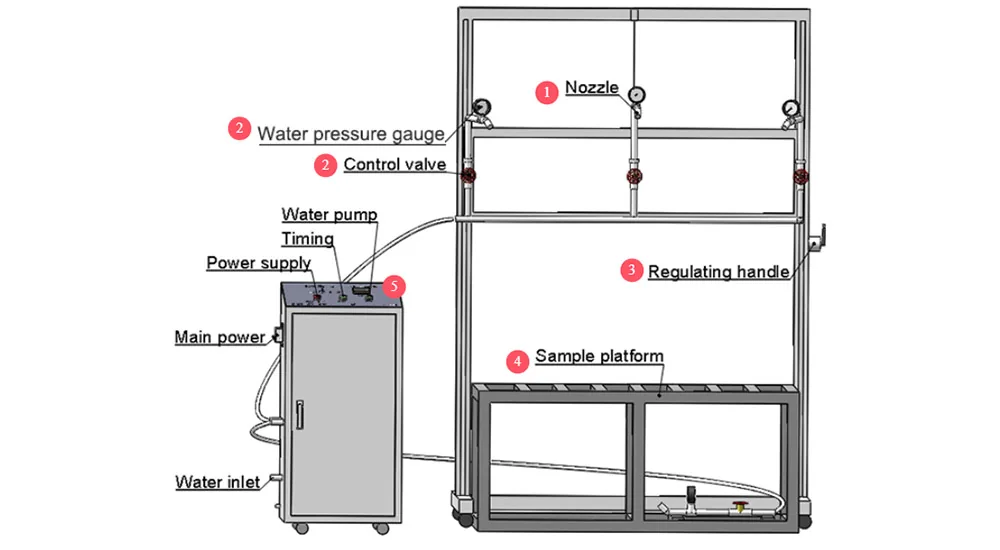

| ① N ozzle | Four nozzle, the top three, one at the bottom. The nozzle is made of stainless steel, which can withstand long-term water impact and is not easy to rust and clog. ensuring stable operation over a long period of time and reduce maintenance frequency. |
|---|---|
| ② Water pressure guage, control valve | Accurately control the flow and pressure of water spray to meet different test requirements. quickly switch between multiple test intensities (light rain to heavy rain). |
| ③ Regulating handle | Through manual stainless steel wheel device can freely, is convenient to adjust the position of the spray and angle. flexibly respond to various sample sizes and structures to eliminate blind spots in testing. |
| ④ Sample platform | Place the sample being tested, made of SUS 304 stainless steel. Support large or heavy test samples to meet a wide range of industrial application requirements. |
| ⑤ Controller | PLC controller can be precisely set and control the parameters of the test, such as the test of time and the frequency of the water, water flow and pressure, etc. Support large or heavy test samples to meet a wide range of industrial application requirements. |
Model comparison
| Model | R-UL020 | |
|---|---|---|
| Overall Dimensions (mm) | 800*1500*3800mm | |
| Height adjustment range of spray device | 1000-3600mm(Adjustable) | |
| Parameter | Number of spray head | 3 spray heads |
| Nozzle spacing | 710mm | |
| Spraying Hole Diameter | Φ5mm | |
| Water pressure | 34.5Kpa | |
| Sample platform size | 1000X1400X500mm | |
| Load of sample platform load | 100 Kgs | |
| Structure | Water Pressure Control | Flow meter |
| Water supply system | Automatic water supply, Water purification system | |
| Control Box | Display the Spray Mode, Time and Water Pump | |
| Material | Material | SUS304 stainless steel |
| Sample platform Material | SUS304 stainless steel | |
| Environmental Conditional | 5℃～+35 ℃ ≤85% RH | |
| Standard | UL 50E Type 3R | |
| Power supply | 380V 50Hz 3P |
