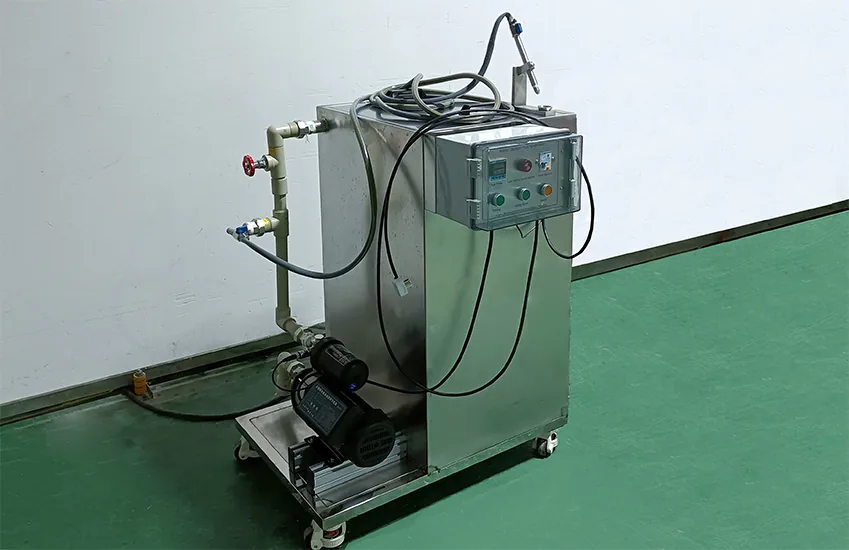

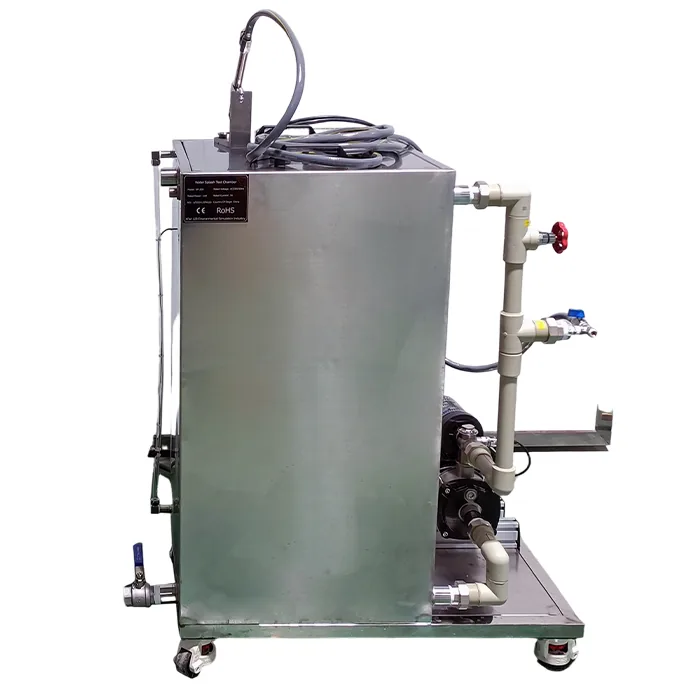

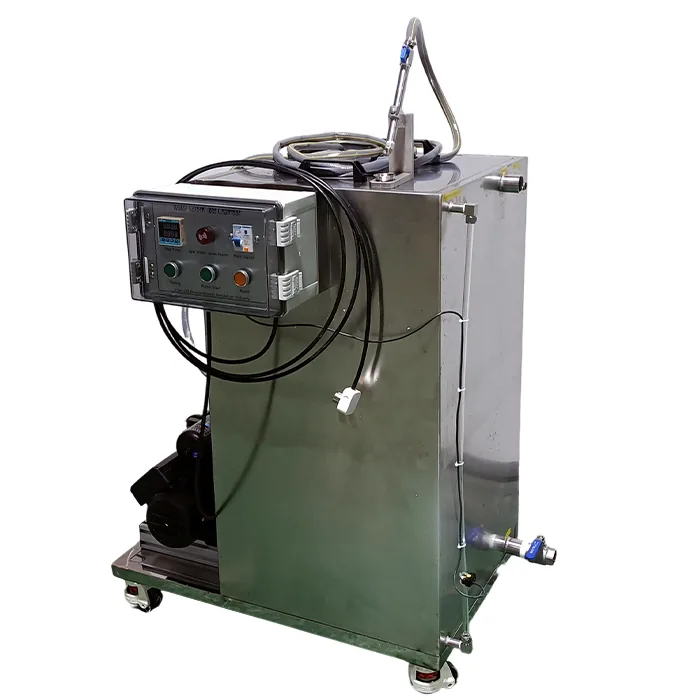

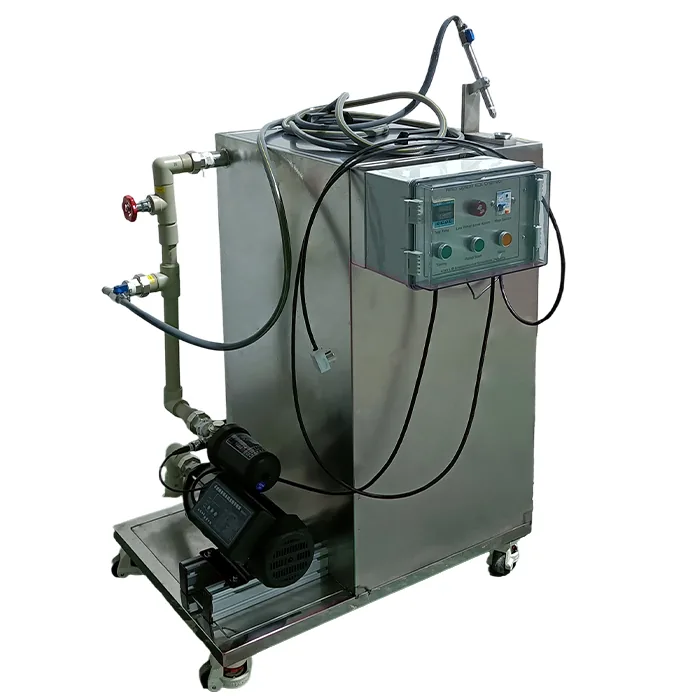

Water Splash Tester
LIB · Water Ingress & Rain Testing (IPX)
The water splash tester is designed per Figure 101 of the GOST IEC 60335 2 series standards to simulate water splash impacts in real usage environments. A bowl shaped splash device rotates around the test specimen, generating natural water splashes from multiple angles onto the appliance. During testing, the electrical appliance is placed on a support surface as the device encircles it, ensuring droplets strike its surface from all directions.
Datasheets
Specification

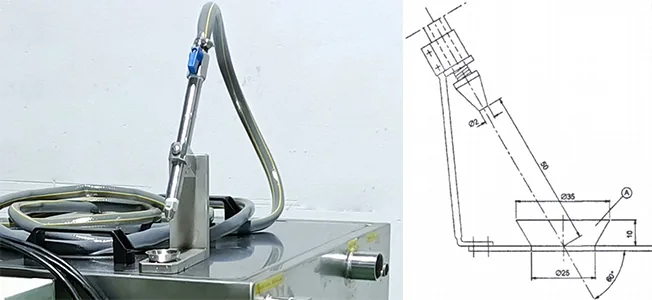

| Bowl Material | Stainless Steel |
|---|---|
| Bowl Dimensions | Top Diameter: Ø35 mmBottom Diameter: Ø25 mmHeight: 10 mm |
| Spray Nozzle Diameter | Ø2 mm |
| Spray Angle | 60° Inclination to Bowl |
| Nozzle Height | 50 mm from the Bowl Bottom |
| Compliance Standard | GOST IEC 60335-2 Series – Figure 101 (Splash Test Method) |
