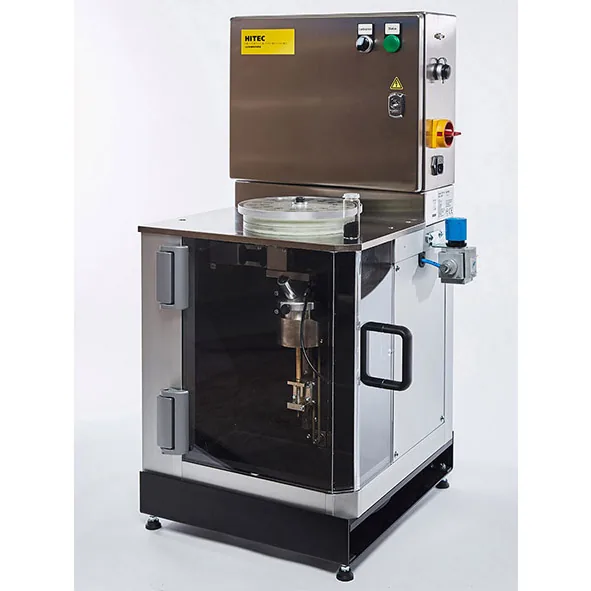

IPHT Individual Pellet Hardness Tester
HITEC · Individual Pellet Hardness Tester
Automated tester for the individual crush strength of carbon black pellets, compliant with ASTM D5230 and ISO 8942. It measures force up to 250 cN and pellet size from 0.8 to 3.5 mm, with an integrated random access sample buffer and damping table, controlled from a Windows PC.
เอกสารดาวน์โหลด
ข้อมูลจำเพาะ
| Force measuring range | Up to 250 cN |
|---|---|
| Force absolute accuracy | ± 2 cN |
| Force relative accuracy (between two measurements) | ± 1 cN |
| Pellet size measuring range | 0.8 to 3.5 mm (interchangeable sample tip for different pellet size range) |
| Pellet size absolute accuracy | ± 0.1 mm |
| Pellet size relative accuracy | ± 0.02 mm |
| Sampling rate | 55.6 Hz |

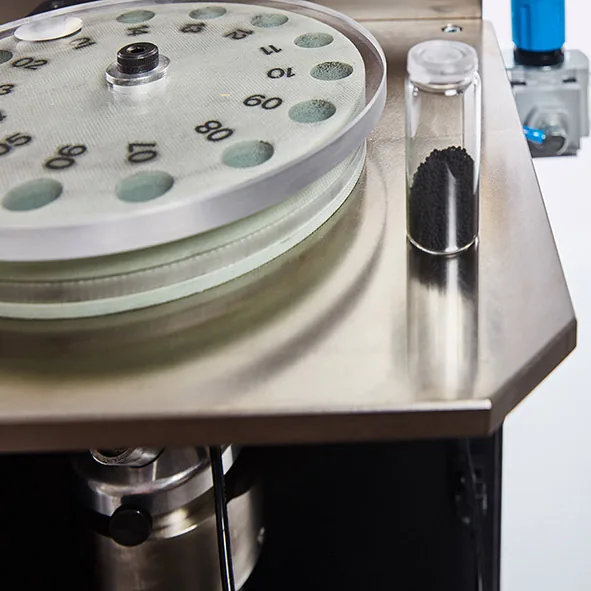

| Sample buffer | Carroussel type for 14 samples for random access |

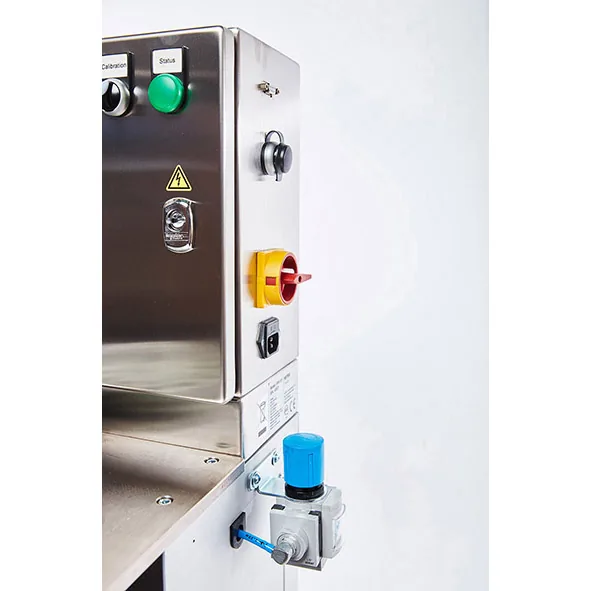

| Compressed air | Min. 4 bar / Max. 6 bar |
| Power supply | 100-240 VAC +- 10%, 50/60 Hz |
| Table model dimensions (W x D x H) | 461 x 435 x 857 mm |
| Weight | 55 kg |
| Operating system | Microsoft Windows 32/64 bit W10 |
| Testers per PC | Up to four (IPHT and/or DADS/DABS) |
| Certifications | CE marking; SGS-USTC certified |
| Safety / certification | CE marking; SGS-USTC certified |
ตารางเปรียบเทียบรุ่น
| Standard | Mode |
|---|---|
| ASTM D5230 | Constant support speed in mm/sec |
| ASTM D3313 | Constant force rate in cN/sec |
