PMST Pelletized Powder Mass Strength Tester
HITEC · Pelletized Powder Mass Strength Tester

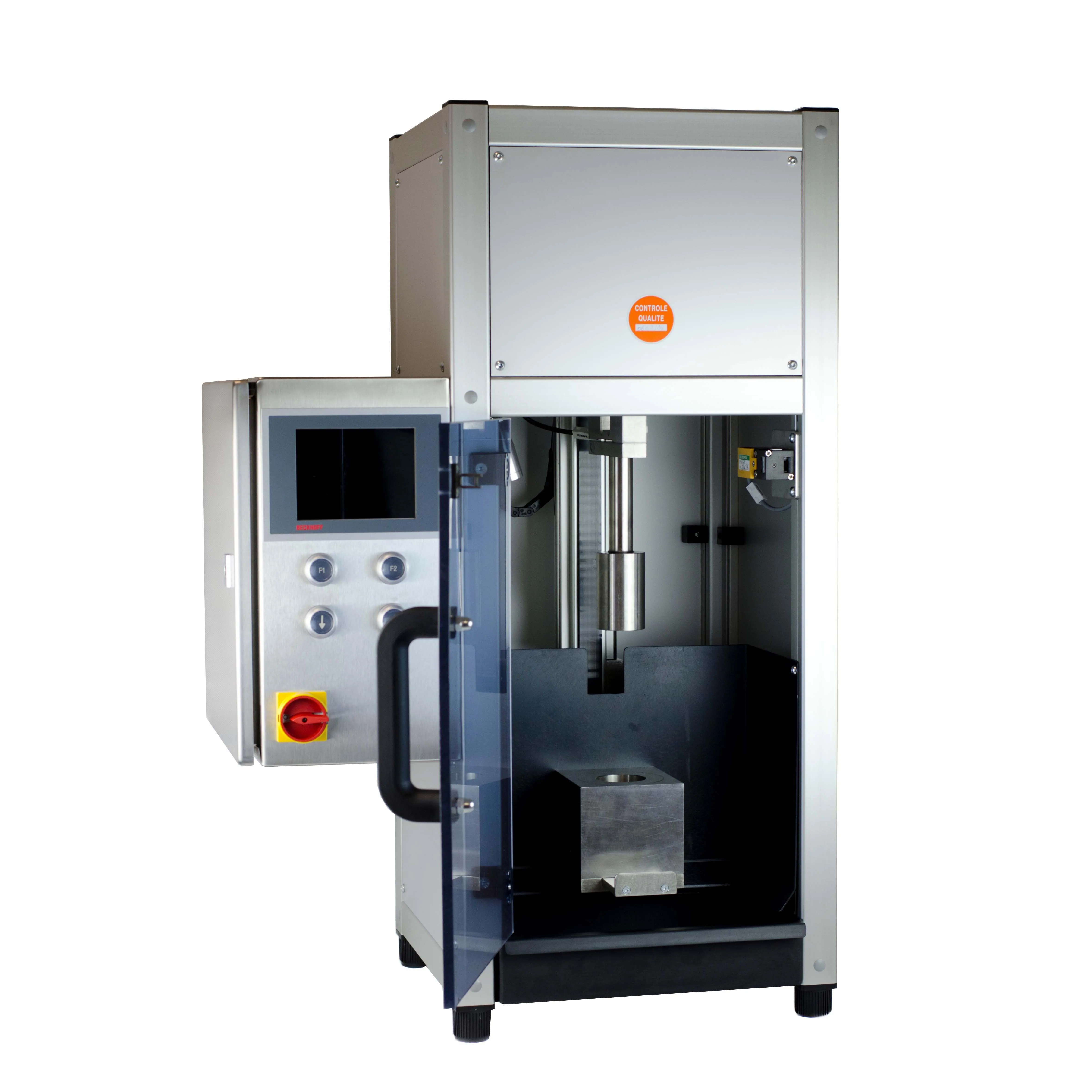

Test equipment that determines the mass strength of pelletized carbon black to ASTM D1937 by measuring the force needed to pack a cylindrical column of pellets. It is a standalone table model with a programmable controller, a 500 N load cell and a stepper-driven plunger with position feedback.
เอกสารดาวน์โหลด
ข้อมูลจำเพาะ
| Force reading range | 500 N |
|---|---|
| Force reading resolution | 0.1 N |
| Force reading accuracy absolute | 0.2% of actual value + 1 N |
| Position reading resolution | 0.1 mm |
| Position reading accuracy | ± 0.8 mm |
| Travel range | 255 mm |

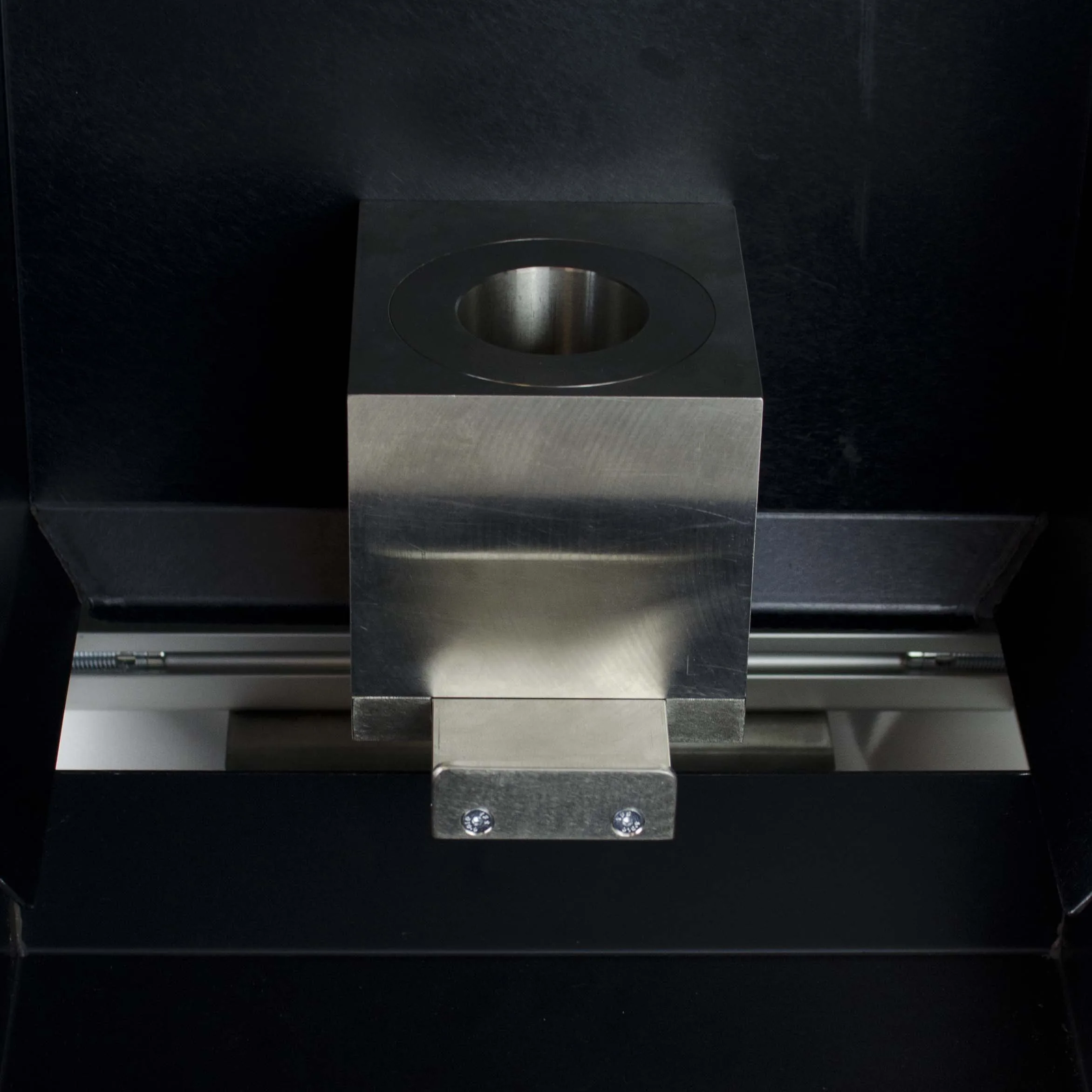

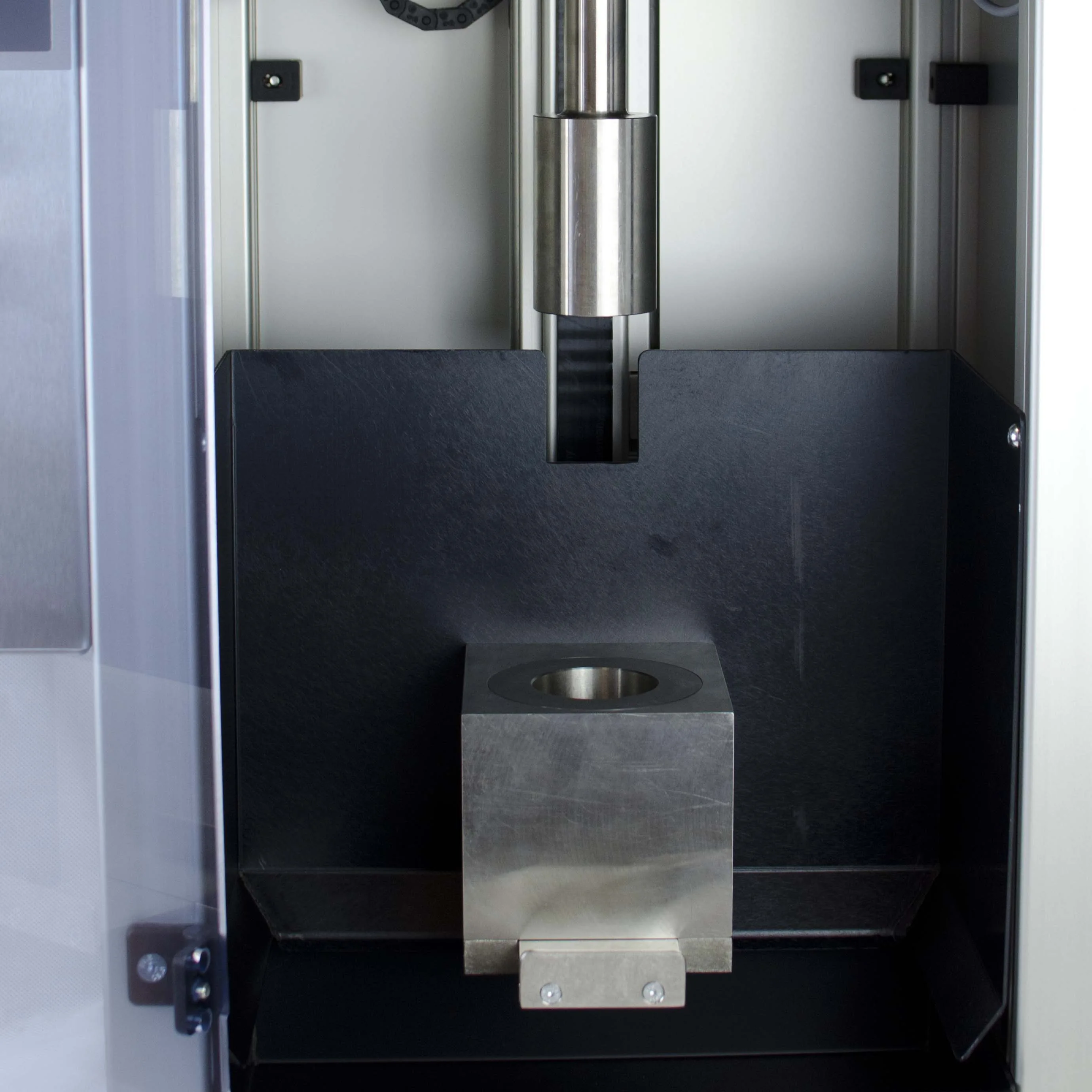

| Compression chamber | ASTM D1937 compliant |
| Sample cylinder material | Stainless steel |
| Cylinder diameter | 52.39 mm |
| Cylinder height | 95.25 mm (3 ¾”) |
| Plunger diameter | 50.8 mm (2”) |
| Power supply | 100-240 VAC (+-10%), 50/60 Hz |
| Table model dimensions (W x D x H) | 61 x 44 x 90 cm |
| Weight | 67 kg |
| Display | Programmable controller with 5.7” display, 640×480 px |
| Plunger drive | Stepper motor driven with position feedback, up to 30 mm/s |
| Frame | Anodized aluminum frame, fully dust proof stainless steel electronic cabinet |
| Certifications | CE marking; SGS-USTC certified |
| Safety / certification | CE marking; SGS-USTC certified |
