The Digital Clark Stiffness Tester evaluates the stiffness of paper and woven cloth, etc. by simulating the state of folding by self-weight. Features & Benefits • Simply mount the test specimen and tap the start key to begin measurement.
The Taber type Stiffness Tester measures the stiffness of paperboard according to ISO 2493-2. Features & Benefits ● Simply attach the test specimen and press the start key to start measurement (automatic measurement mode). ● The left and right bending moments and their average values are displayed simultaneously (automatic measurement mode).
The Gurley type Densometer measures the air permeability of paper and other materials. Transmit time (air permeability resistance) of 100cc and ISO air permeability can be displayed by automatically detecting falling rate of pressure cylinder. Features & Benefits ● Automatic calculation enabled by high-precision detection with the optical fiber sensors This tester correctly detects and counts the scale of air permeability amount with the optical fiber sensors.
The Elmendorf Tear Tester evaluates the tear resistance of paper, textile, plastic film etc. Digital Elmendorf Tearing Tester | 164 Tearing resistance is determined from the loss of potential energy of a fan shaped pendulum and the results are automatically calculated displayed on the touch screen. Ordering Information Elmendorf Tearing Tester | 163 The simple analog scale model is an economical alternative to the digital model.
The Digi-Bekk Smoothness Tester evaluates smoothness of paper specimen from the rate at which air leaks out from the space in between the surface of samples (put in contact with a smooth glass surface) and the smooth glass surface.
The Moisture Pervious Cups are used to evaluate water vapor permeability. Evaluation is made by weighing the amount of water vapors pass through a specific area of membranous sample in 24 hours.
The Light-load Tearing Tester measures the tear strength of a “single” specimen of a material with low tear strength, such as plastic film. Suitable for materials with low tearing strength that cannot be handled by the Elmendorf type tearing tester.
The Digi-Thickness Tester measures the thickness of plastic film, paper, rubber, textile according to JIS Z 1702, P 8118 etc. Features & Benefits ● Resolution 0.001mm, digital display. ● Automatic elevation anvil allowing continuous measurement by simply moving the specimen.
In testing tracking force of adhesive tape correctly, it is necessary to adhere and make samples under onstant conditions.
The Water Proofing Tester can be used for measuring waterproofing by JIS K 6404-7 method B, by applying water pressure to one side of specimen and measuring the pressure of water that leaks out from the opposite side.
The Pencil Scratch Hardness Tester evaluates hardness of paint films from scratching by a pencil lead having a specific hardness kept at 45° under constant load and moving specimen table, and the scratch so generated is measured.
The Zahn Viscsity Cups capable of measuring viscosity on the spot when it is required to control viscosity of ink or paints at job site. Viscosity can be determined from the time required for the specimen filled in the cup to flow out through.
The Grind Meter evaluates dispersibility of pigments of paints and ink. It has two grooves having specified slopes. Specimen in the form of paste is filled in the deepest part of these grooves and are pulled in the direction of the shallow part of grooves by means of a scraper.
The Washability Tester evaluate a degree of damage received on the surface of paint film by the simulation of washing mode in the same condition as in practical use.
The Printing Ink Drying Time Meter evaluates dryness of ink by measuring time required till ink, after losing stickiness, does not stick paper when the surface of paper is made to touch the ink under a pressure.
The L type Viscometer measures viscosity of ink and paints. Specimen is filled in the space between a ring and a rod mounted keeping a fixed gap between them. The rod is pressed with a constant force and viscosity is determined from descending speed of the rod at the time of pressing.
The Hoover Automatic Muller mixes pigments and vehicle, etc. under a constant conditions for making paints and pigments on test bases.
The Spread Meter measures spread speed of ink, adhesives, etc. which are put between two parallel plates. It is very convenient to control spread fluidity of these kinds of samples.
The S type Ink Rub Tester evaluates resistance against rubbing and color fastness such as color staining of printing ink, etc. and fluffiness of paper.
The Automatic Applicator is used to control blade speed under a specific painting speed selectable from 200 to 2000mm/min. when adjusting the thickness of printing (coating) film.
The Paint Shaker is a vibration type mixer using glass beads for evaluating dispersion in making paints on test bases.
Inkometer is a device to measure the dynamic tack value (stickiness) of printing ink. The breaking up behavior of ink film as it leaves the rolls on the press is greatly affected by the characteristics of the ink, and is considered one of the most important factors in evaluating printing suitability. This test equipment models the function of each roll on the printing press and measures the tack value of the ink that appears on the roll.
The Water Vapor Transmission Rate (WVTR) Tester measures the water vapor permeability or water vapor permeability coefficient of packaging materials such as plastic film. Measures water vapor permeability and water vapor permeability coefficient of plastic films, etc. using the differential pressure method.
The Loop Stiffness Tester™ is a compact testing machine used to evaluate the flexibility or rigidity of very thin plastic film, copper foil etc. When a specimen is set, it is automatically deformed into a “loop” shape and the compression resistance of the loop is measured by the load cell. In the case of evaluating the “stiffness” of thin specimens such as magnetic tape and plastic film, many conventional measurement methods are affected by the self-weight of the specimen itself, making evaluation difficult.

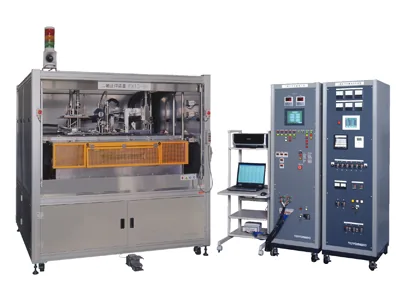

To evaluates suitable processing conditions and product value of biaxially stretching films in laboratory. – The center stretching type is employed as the stretching method. In collaboration with the servo motor used as the driving system, it realizes uniform film through precision stretching.
The Permeagraph™ measures gas permeability of porous samples. Applying differential pressure generated to sample and evaluates permeability from travelling speed of piston. There is a excellent data correlation with #158 Gurley type Densometer.
The Digital Gurley type Stiffness Tester evaluates the stiffness of comparatively weak materials such as woven cloth, paper, film, etc. by bending vertically mounted sample to left and right.
The F type Permeameter measures air permeability of fabrics. Applies a specific suction pressure (differential pressure) to sample and evaluates by air flow rate. Related standards
The Heat Gradient Tester evaluates critical temperature for sealing by producing temperature gradient across 5 heating platens and pressing under the same conditions.
The Mullen type Burst Tester evaluates the bursting strength of paper, paperboard, corrugated cardboard, woven fabrics and rubber-coated fabrics, etc. according to ISO 2759 (high pressure bursting strength model) and ISO 2758 (low pressure bursting strength model). High-pressure bursting strength type and Low-pressure bursting strength type are available depending on testing standards and materials.
The Gas Transmission Rate Tester (GTR Tester) measures gas transmission rate (gas barrier property) of packaging materials such as plastic films. Measurement of gas transmission rate of polymer films such as plastic films, etc. is important because, for example in case of packaging materials, preservation of the content of a package considerably depends on the gas barrier property of the packing material.
